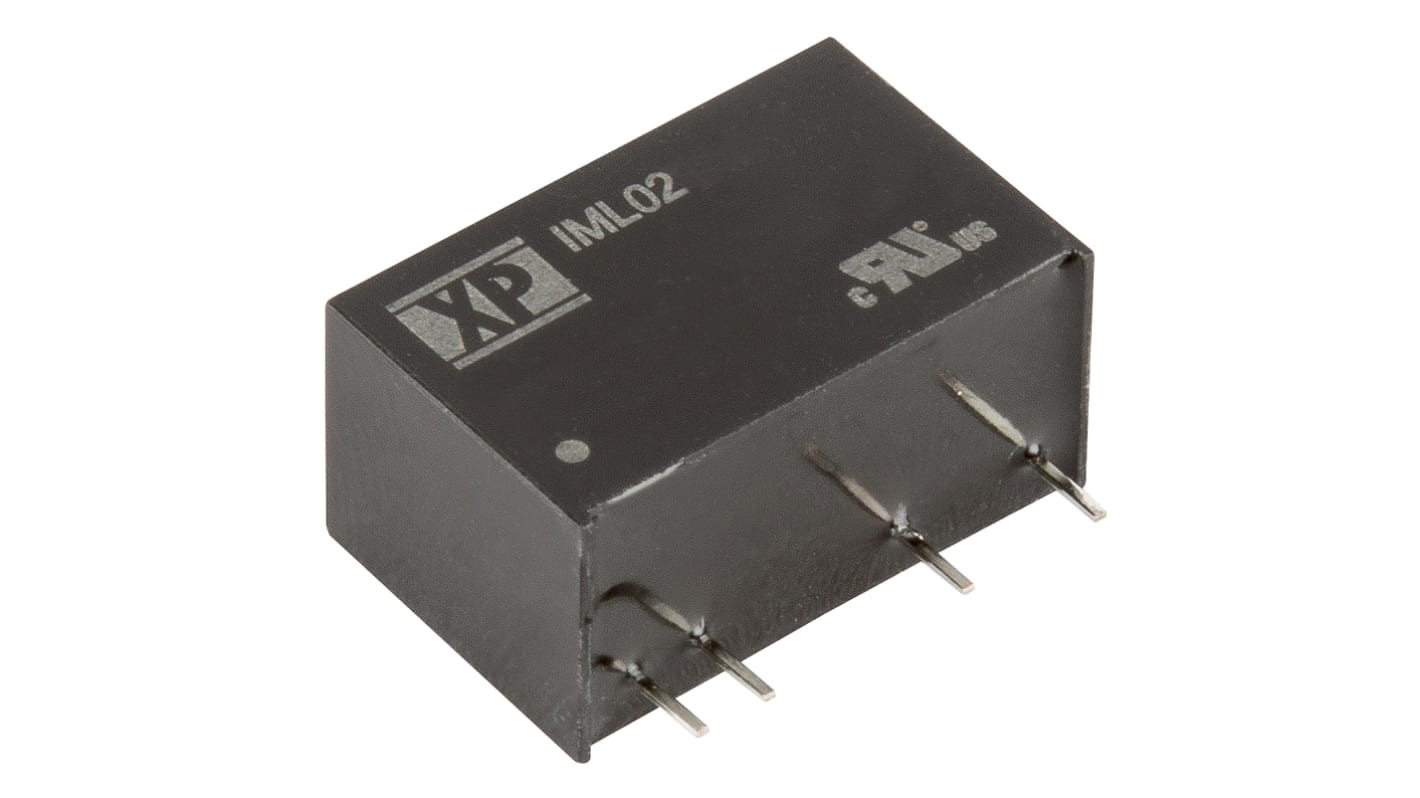

XP Power IML02 DC-DC Converter, 5V dc/ 400mA Output, 13.5 → 16.5 V dc Input, 2W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 124-0970
- Mfr. Part No.:
- IML0215S05
- Brand:
- XP Power
Available to back order for despatch 15/10/2024
Added
Price Each
£6.95
(exc. VAT)
£8.34
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £6.95 |
| 5 - 9 | £6.74 |
| 10 - 24 | £6.53 |
| 25 - 49 | £6.32 |
| 50 + | £6.12 |
- RS Stock No.:
- 124-0970
- Mfr. Part No.:
- IML0215S05
- Brand:
- XP Power
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
XP Power - IML02 Series of Isolated DC-DC Converters
XP Power IML02 series of medical approved DC-DC converters offer a reliable & robust solution to a wide range of applications. The IML02 series offers both single & dual output options, for added installation flexibility. The series have been constructed within a SIP7 package, for easy footprint integration. The IML02 series offers 4000 V ac isolation & 1 x MOPP @ 250V ac.
Features and Benefits
Suitable for world wide medical approvals.
SIP07 Package.
-40°C to +85°C operation range.
Full load at 85°C ambient.
Industry standard protection features such as 4000V ac isolation and 1 x MOPP @ 250V ac.
XP Power - Isolated DC-DC Converters
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 5V dc |
| Input Voltage Range | 13.5 → 16.5 V dc |
| Power Rating | 2W |
| Input Voltage Nominal | 15 V dc |
| Output Current | 400mA |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 1 |
| Package | SIP 7 |
| Isolation Voltage | 4kV ac |
| Length | 19.5mm |
| Depth | 12.5mm |
| Width | 9.8mm |
| Series | IML02 |
| Load Regulation | 0.1 |
| Standards Met | CB IEC60601-1, CSA C22.2 No. 60601-1, EN 55011, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F, TUV EN 60601-1, UL ANSI/AAMI ES60601-1 |
| Maximum Temperature | +85°C |
| Medical Approved | Yes |
| Minimum Temperature | -40°C |
