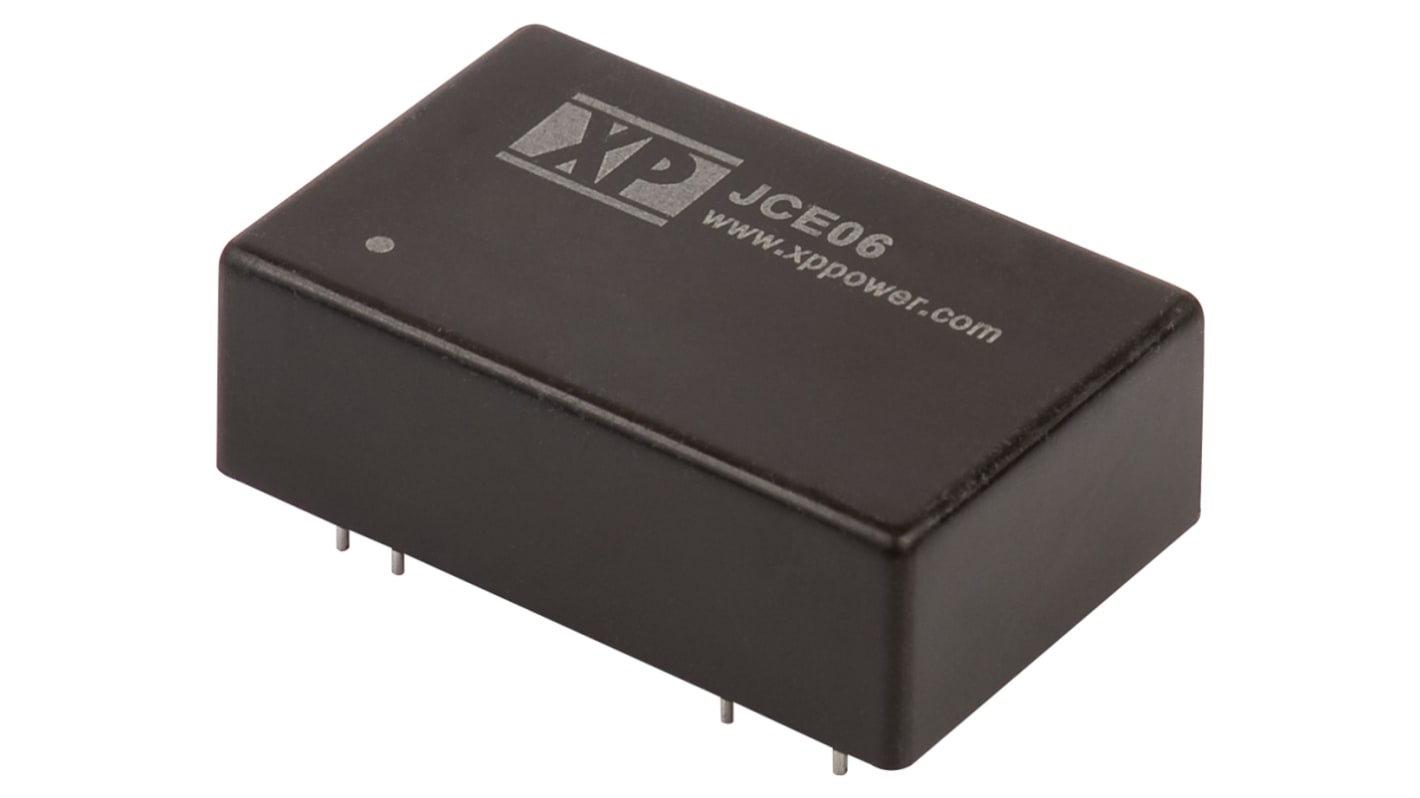

XP Power JCE DC-DC Converter, 5V dc/ 1.2A Output, 9 → 18 V dc Input, 6W, Through Hole, +100°C Max Temp -40°C Min
- RS Stock No.:
- 122-8157
- Mfr. Part No.:
- JCE0612S05
- Brand:
- XP Power
Bulk discount available
Subtotal (1 unit)*
£15.54
(exc. VAT)
£18.65
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 27 unit(s) ready to ship
- Plus 999,999,972 unit(s) shipping from 24 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £15.54 |
5 - 9 | £15.08 |
10 - 24 | £14.61 |
25 - 49 | £14.14 |
50 + | £13.68 |
*price indicative
- RS Stock No.:
- 122-8157
- Mfr. Part No.:
- JCE0612S05
- Brand:
- XP Power
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | XP Power | |
Output Voltage | 5V dc | |
Input Voltage Range | 9 → 18 V dc | |
Power Rating | 6W | |
Input Voltage Nominal | 12 V dc | |
Output Current | 1.2A | |
Mounting Type | Through Hole | |
Isolated | Yes | |
Number of Outputs | 1 | |
Package | DIP 24 | |
Isolation Voltage | 1.5kV dc | |
Depth | 10.4mm | |
Width | 20.32mm | |
Length | 31.75mm | |
Series | JCE | |
Load Regulation | ±1.2% | |
Efficiency | 79% | |
Minimum Temperature | -40°C | |
Maximum Temperature | +100°C | |
Select all | ||
---|---|---|
Brand XP Power | ||
Output Voltage 5V dc | ||
Input Voltage Range 9 → 18 V dc | ||
Power Rating 6W | ||
Input Voltage Nominal 12 V dc | ||
Output Current 1.2A | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package DIP 24 | ||
Isolation Voltage 1.5kV dc | ||
Depth 10.4mm | ||
Width 20.32mm | ||
Length 31.75mm | ||
Series JCE | ||
Load Regulation ±1.2% | ||
Efficiency 79% | ||
Minimum Temperature -40°C | ||
Maximum Temperature +100°C | ||
