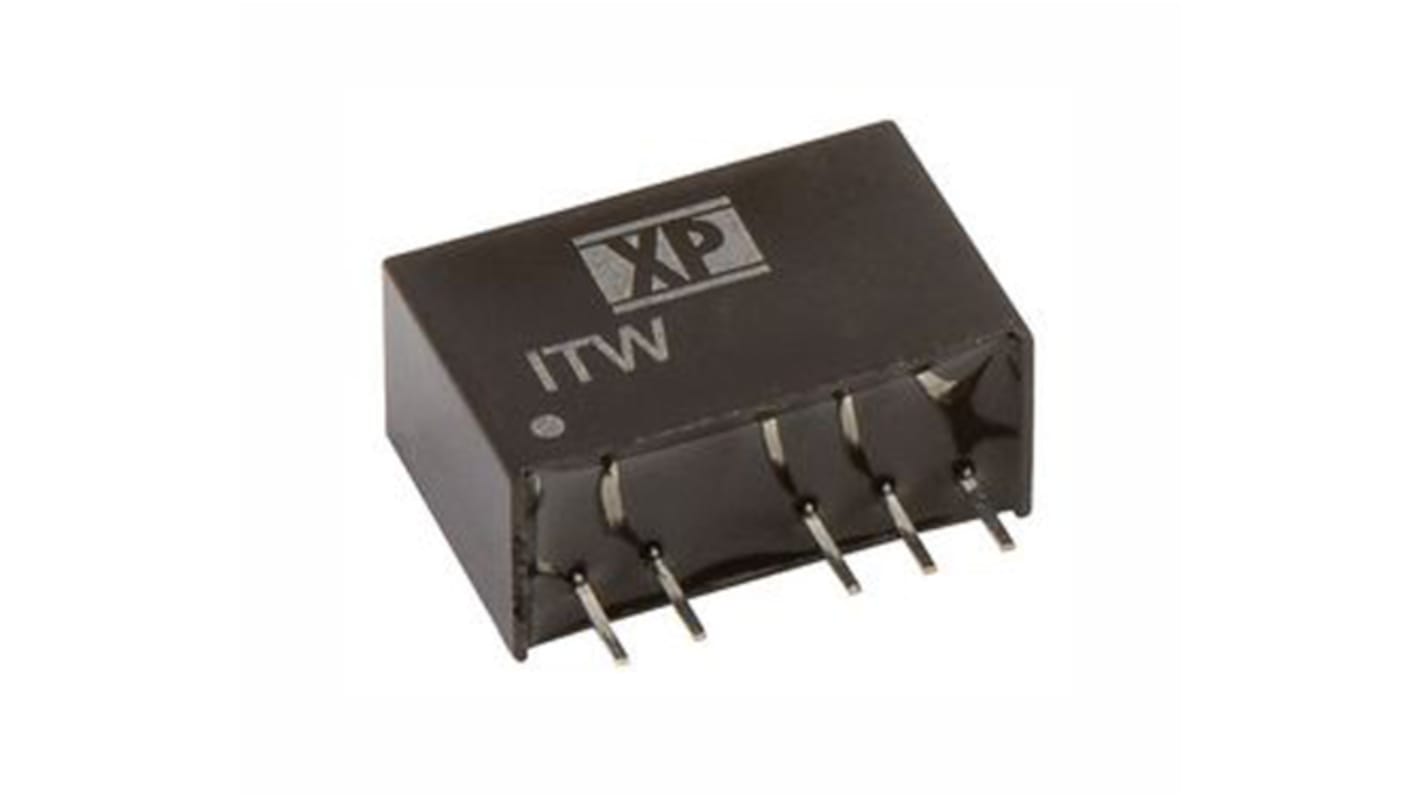

XP Power ITW DC-DC Converter, ±12V dc/ ±42mA Output, 9 → 18 V dc Input, 1W, Through Hole, +105°C Max Temp -40°C
- RS Stock No.:
- 122-6079
- Mfr. Part No.:
- ITW1212S
- Brand:
- XP Power
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£8.29
(exc. VAT)
£9.95
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £8.29 |
| 5 - 9 | £8.04 |
| 10 - 24 | £7.79 |
| 25 - 49 | £7.54 |
| 50 + | £7.30 |
- RS Stock No.:
- 122-6079
- Mfr. Part No.:
- ITW1212S
- Brand:
- XP Power
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
XP Power - ITW Series Isolated DC-DC Converter
XP Power ITW series of DC-DC Converters provide the user with a reliable & robust product suitable for use within a wide variety of applications. The ITW series comes as a single or dual output converter.
Features and Benefits
Single & dual output.
No minimum load requirement, with a fully regulated output.
SMD Package.
Industry standard pinout.
Wide operating temperature of -40°C to +105°C.
XP Power - Isolated DC-DC Converters
Specifications
Attribute | Value |
|---|---|
| Output Voltage | ±12V dc |
| Input Voltage Range | 9 → 18 V dc |
| Power Rating | 1W |
| Input Voltage Nominal | 12 V dc |
| Output Current | ±42mA |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 2 |
| Package | SIP 6 |
| Isolation Voltage | 1.5kV dc |
| Length | 17mm |
| Depth | 11mm |
| Width | 7.62mm |
| Series | ITW |
| Load Regulation | ±1 (5 → 100% Load) %, ±2 (0 → 100% Load) % |
| Minimum Temperature | -40°C |
| Standards Met | EN55022, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, MIL-HDBK-217F |
| Maximum Temperature | +105°C |
