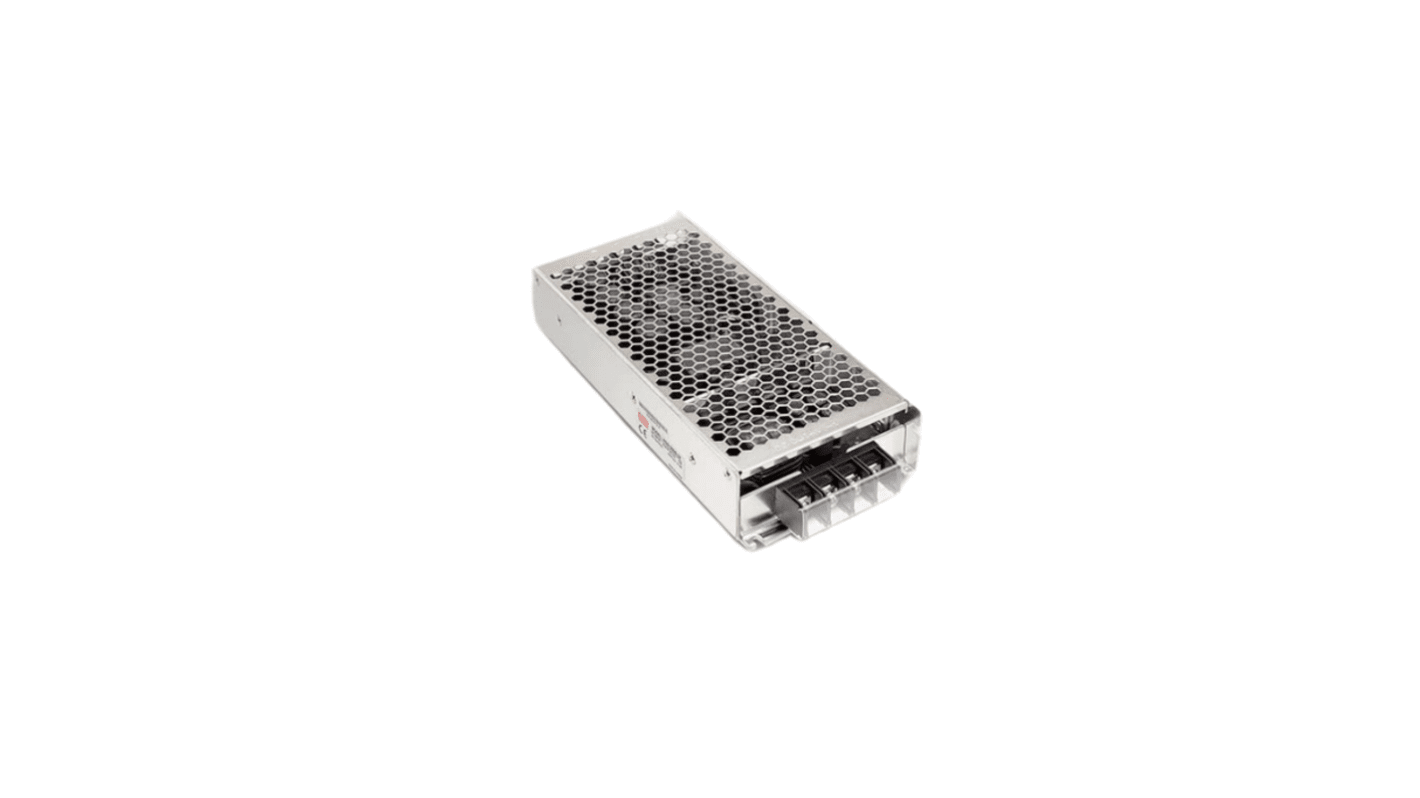

MEAN WELL RSD-300 DC-DC Converter, 48V dc/ 6.3A Output, 50.4 → 93.6 V dc Input, 300W, Chassis Mount, +55°C Max

View all DC-DC Converters

Subtotal (1 unit)*

£98.81

(exc. VAT)

£118.57

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 27 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£98.81

*price indicative

RS Stock No.:
632-239
Mfr. Part No.:
RSD-300F-48
Brand:
MEAN WELL
Find similar products by selecting one or more attributes.
Select all

Brand

MEAN WELL

Output Voltage

48V dc

Input Voltage Range

50.4 → 93.6 V dc

Power Rating

300W

Input Voltage Nominal

72 V dc

Output Current

6.3A

Mounting Type

Chassis Mount

Series

RSD-300

Maximum Temperature

+55°C

Minimum Temperature

-40°C

COO (Country of Origin):
CN
The MEANWELL 300W railway single output DC-DC converter is compliant with BS EN/EN50155 and BS EN/EN45545-2 railway standards and features a 2:1 wide input range. It includes protections against short circuit, overload, over voltage, over temperature, and input reverse polarity. The unit provides 4000VDC input/output isolation, is cooled by free air convection, and is half encapsulated. Additionally, it has a built-in constant current limiting circuit for safe and reliable operation.

1U low profile 40mm
All using 105°C long life electrolytic capacitors
LED indicator for power on
