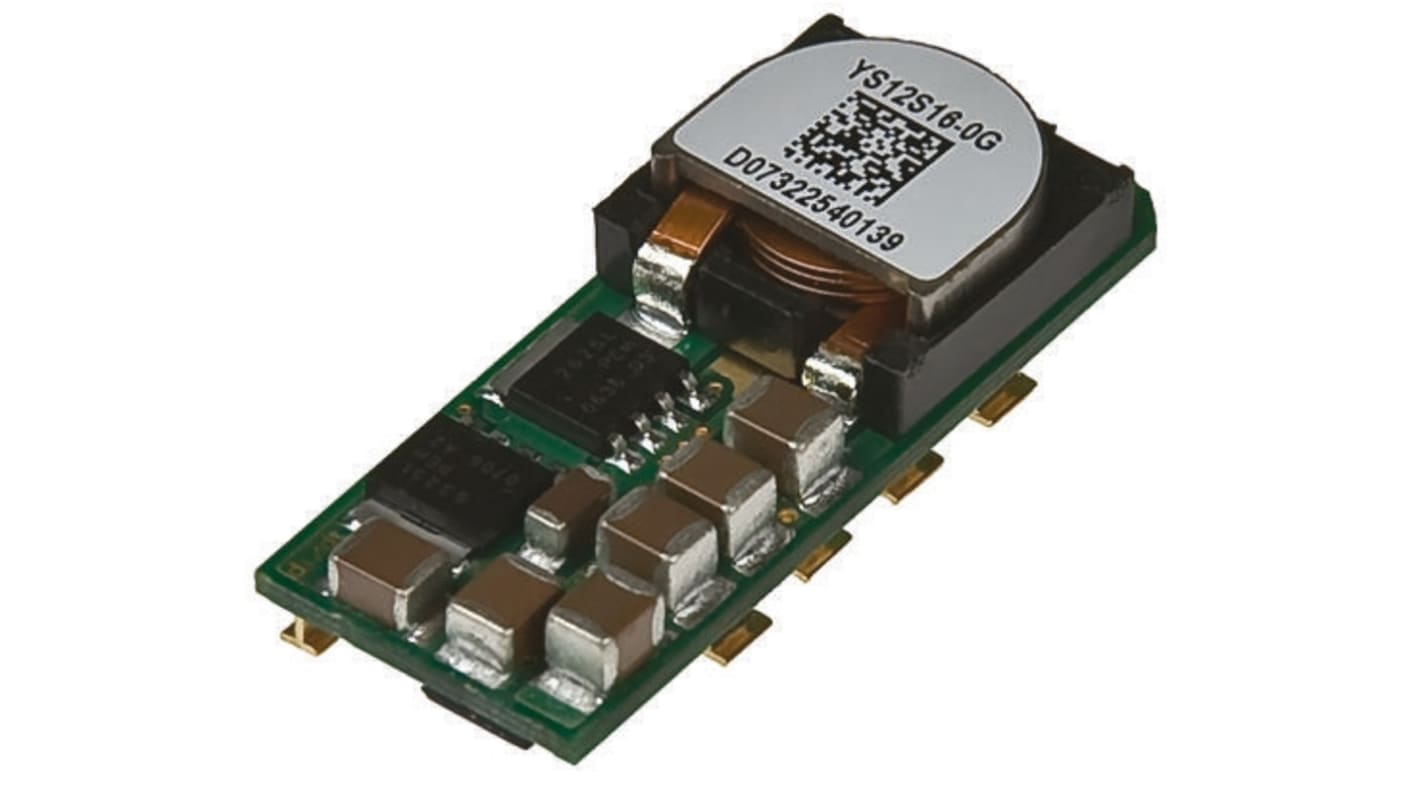

BEL POWER SOLUTIONS INC Non-Isolated DC-DC Converter, 0.75 → 5.5V dc/ 16A Output, 9.6 → 14 V dc Input,
- RS Stock No.:
- 555-468
- Mfr. Part No.:
- YS12S16-0G
- Brand:
- BEL POWER SOLUTIONS INC
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 555-468
- Mfr. Part No.:
- YS12S16-0G
- Brand:
- BEL POWER SOLUTIONS INC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | BEL POWER SOLUTIONS INC | |
| Output Voltage | 0.75 → 5.5V dc | |
| Input Voltage Range | 9.6 → 14 V dc | |
| Power Rating | 88W | |
| Input Voltage Nominal | 12 V dc | |
| Output Current | 16A | |
| Mounting Type | Surface Mount | |
| Number of Outputs | 1 | |
| Length | 33.02mm | |
| Depth | 7.98mm | |
| Width | 13.46mm | |
| Minimum Temperature | -40°C | |
| Standards Met | EN 62368-1, IEC 62368-1 | |
| Maximum Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand BEL POWER SOLUTIONS INC | ||
Output Voltage 0.75 → 5.5V dc | ||
Input Voltage Range 9.6 → 14 V dc | ||
Power Rating 88W | ||
Input Voltage Nominal 12 V dc | ||
Output Current 16A | ||
Mounting Type Surface Mount | ||
Number of Outputs 1 | ||
Length 33.02mm | ||
Depth 7.98mm | ||
Width 13.46mm | ||
Minimum Temperature -40°C | ||
Standards Met EN 62368-1, IEC 62368-1 | ||
Maximum Temperature +85°C | ||
- COO (Country of Origin):
- DO
Power-One 16A SMD Single Output Regulated Non-Isolated DC-DC Converter - Y Series
The Y Series of DC/DC converters provides exceptional thermal performance, even in high temperature environments with minimal airflow. This performance is accomplished through the use of advanced circuitry, packaging and processing techniques to achieve a design possessing ultra-high efficiency, excellent thermal management and a very low-body profile.
Non-isolated
Synchronous buck converter topology
Wide input voltage range
Up to 16A output current
Adjustable output voltage via external resistors
Start up into pre-biased output
No minimum load required
Remote output sense
Remote ON/OFF
Input under-voltage lockout, over-current and over-temperature protection
Horizontal surface mount package - industry standard footprint and pinout
Synchronous buck converter topology
Wide input voltage range
Up to 16A output current
Adjustable output voltage via external resistors
Start up into pre-biased output
No minimum load required
Remote output sense
Remote ON/OFF
Input under-voltage lockout, over-current and over-temperature protection
Horizontal surface mount package - industry standard footprint and pinout
Standards
UL 60950, DEMKO certification to EN 60950
Approvals
UL/cUL recognised
Power-One - Non-Isolated, Analogue Point-of-Load Converters
