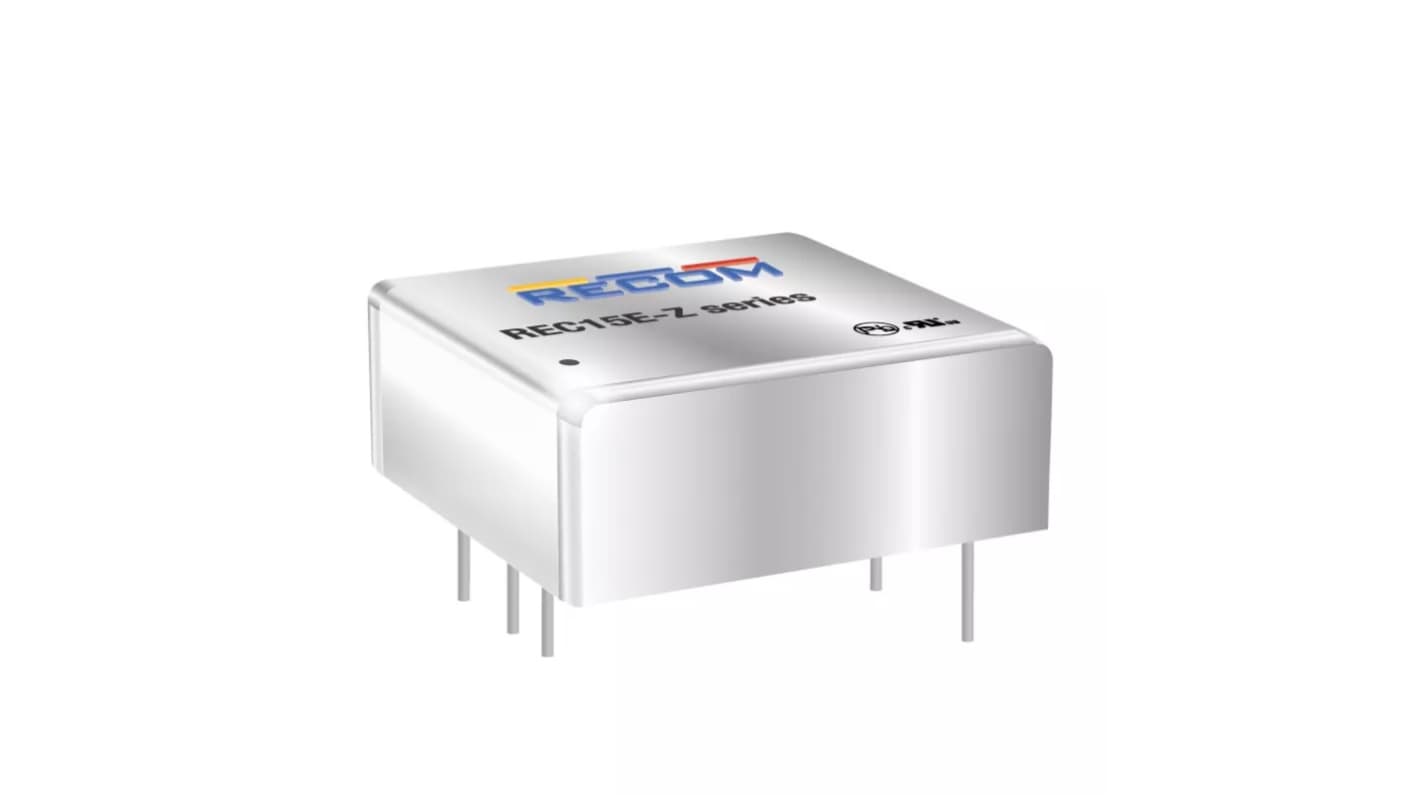

Recom REC15E-Z DC-DC Converter, 24V dc/ 625mA Output, 9 → 36 V dc Input, 15W, Through Hole, +75°C Max Temp -40°C

View all DC-DC Converters

Subtotal (1 tube of 8 units)*

£184.91

(exc. VAT)

£221.89

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 23 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s)
Per Tube
Per unit*
1 +£184.91£23.114

*price indicative

RS Stock No.:
325-663
Mfr. Part No.:
REC15E-2424SZ
Brand:
Recom
Find similar products by selecting one or more attributes.
Select all

Brand

Recom

Output Voltage

24V dc

Input Voltage Range

9 → 36 V dc

Power Rating

15W

Input Voltage Nominal

24 V dc

Output Current

625mA

Mounting Type

Through Hole

Series

REC15E-Z

Minimum Temperature

-40°C

Maximum Temperature

+75°C

COO (Country of Origin):
TW
The Recom DC/DC Converter are 4:1 wide input voltage range 15W power DC/DC converters in a 1x1 case. Despite their low cost, the converters are fully specified devices with output currents up to 4 Amps, no minimum load, 1.6kVDC isolation, high efficiency and low ripple/noise figures. The inputs are protected against transients of up to 100V and feature UVLO to allow the primary supply to start up safely. The single or dual outputs are continuously protected against short circuits and overload and can drive high capacitive loads. The REC15E-Z series will find many uses in cost sensitive applications where board space is at a premium.

Compact size 1x1package
Efficiency up to 90%
Wide operating temperature from -40°C to +75°C without derating
Continuous short circuit protection
