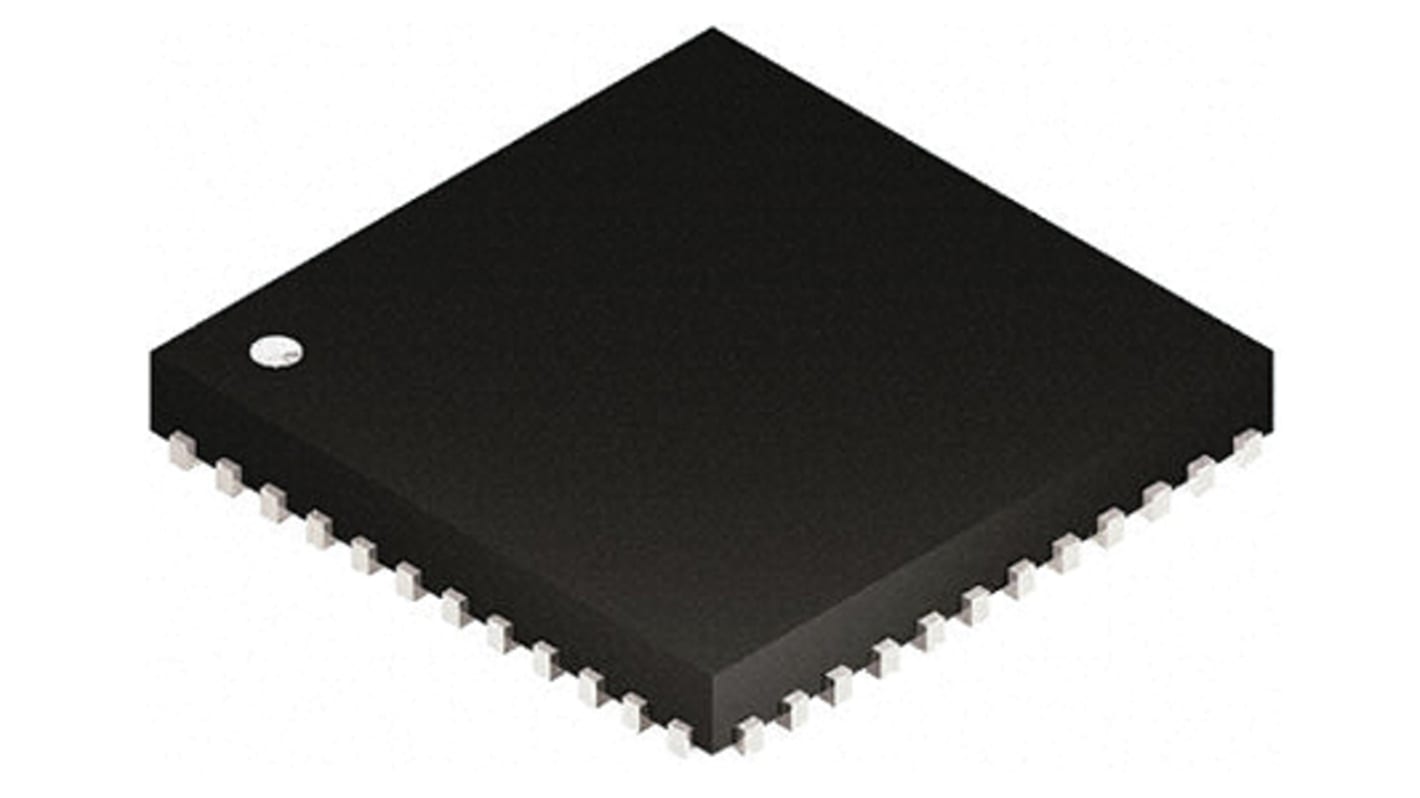

Texas Instruments TPS65400RGZT, Quad-Channel, Buck Power Management IC, Adjustable 48-Pin, VQFN
- RS Stock No.:
- 900-9716
- Mfr. Part No.:
- TPS65400RGZT
- Brand:
- Texas Instruments
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 900-9716
- Mfr. Part No.:
- TPS65400RGZT
- Brand:
- Texas Instruments
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Minimum Output Voltage | 0.6 V | |
| Minimum Input Voltage | 4.5 V | |
| Maximum Input Voltage | 18 V | |
| Maximum Output Current | 4A | |
| Converter Type | Buck | |
| Number of Outputs | 4 | |
| Output Type | Adjustable | |
| Maximum Switching Frequency | 2.2 MHz | |
| Mounting Type | Surface Mount | |
| Package Type | VQFN | |
| Pin Count | 48 | |
| Maximum Operating Temperature | +80 °C | |
| Minimum Operating Temperature | -40 °C | |
| Length | 7.15mm | |
| Switching Regulator | Yes | |
| Dimensions | 7.15 x 7.15 x 1mm | |
| Load Regulation | 0.1 %/A | |
| Height | 1mm | |
| Width | 7.15mm | |
| Line Regulation | 0.1 %/V | |
Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Minimum Output Voltage 0.6 V | ||
Minimum Input Voltage 4.5 V | ||
Maximum Input Voltage 18 V | ||
Maximum Output Current 4A | ||
Converter Type Buck | ||
Number of Outputs 4 | ||
Output Type Adjustable | ||
Maximum Switching Frequency 2.2 MHz | ||
Mounting Type Surface Mount | ||
Package Type VQFN | ||
Pin Count 48 | ||
Maximum Operating Temperature +80 °C | ||
Minimum Operating Temperature -40 °C | ||
Length 7.15mm | ||
Switching Regulator Yes | ||
Dimensions 7.15 x 7.15 x 1mm | ||
Load Regulation 0.1 %/A | ||
Height 1mm | ||
Width 7.15mm | ||
Line Regulation 0.1 %/V | ||
Step-Down DC/DC Converters (Integrated Switch) 9V to 30V Input Max., Texas Instruments
DC/DC Switching Regulator Converters (Integrated Switch), Texas Instruments
The range of highly integrated high-efficiency switching voltage regulators from Texas Instruments includes Step-up (Boost), Step-down (Buck), Step-up/down (Boost/Buck) and Inverting types providing efficient solutions for every DC Voltage Regulator application.
