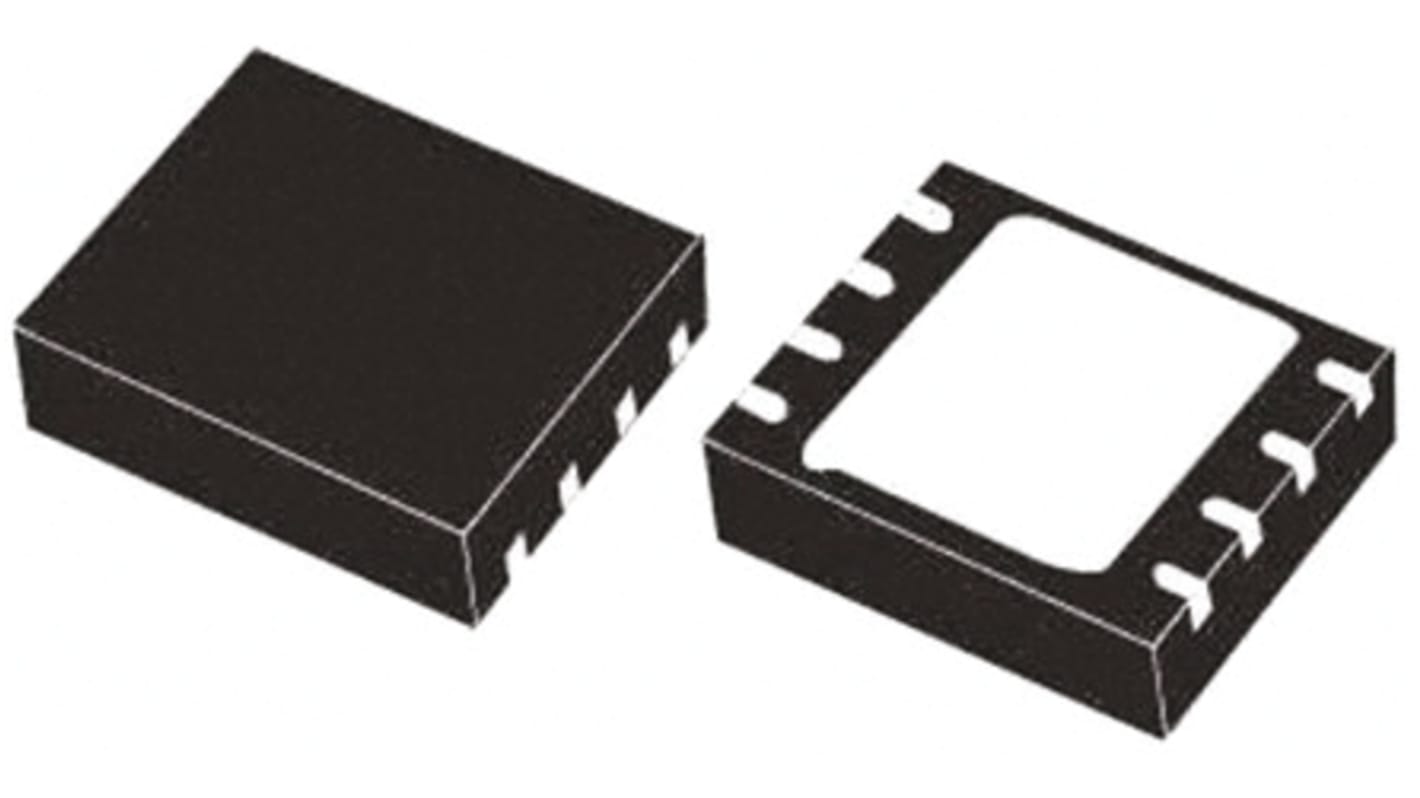

STMicroelectronics LED2000PUR, 1-Channel, Step Down DC-DC Converter 8-Pin, VFQFPN
- RS Stock No.:
- 811-1066
- Mfr. Part No.:
- LED2000PUR
- Brand:
- STMicroelectronics
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 811-1066
- Mfr. Part No.:
- LED2000PUR
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Minimum Output Voltage | -1 V | |
| Maximum Output Voltage | 18 V | |
| Minimum Input Voltage | 3 V | |
| Maximum Input Voltage | 18 V | |
| Converter Type | Step Down | |
| Number of Outputs | 1 | |
| Output Type | Fixed | |
| Mounting Type | Surface Mount | |
| Maximum Switching Frequency | 1 MHz | |
| Package Type | VFQFPN | |
| Pin Count | 8 | |
| Maximum Operating Temperature | +150 °C | |
| Minimum Operating Temperature | -40 °C | |
| Length | 4.1mm | |
| Height | 0.95mm | |
| Switching Regulator | Yes | |
| Width | 4.1mm | |
| Dimensions | 4.1 x 4.1 x 0.95mm | |
Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Minimum Output Voltage -1 V | ||
Maximum Output Voltage 18 V | ||
Minimum Input Voltage 3 V | ||
Maximum Input Voltage 18 V | ||
Converter Type Step Down | ||
Number of Outputs 1 | ||
Output Type Fixed | ||
Mounting Type Surface Mount | ||
Maximum Switching Frequency 1 MHz | ||
Package Type VFQFPN | ||
Pin Count 8 | ||
Maximum Operating Temperature +150 °C | ||
Minimum Operating Temperature -40 °C | ||
Length 4.1mm | ||
Height 0.95mm | ||
Switching Regulator Yes | ||
Width 4.1mm | ||
Dimensions 4.1 x 4.1 x 0.95mm | ||
LED Drivers, Buck Current Regulators for LED, STMicroelectronics
The step down switching regulators are simple and efficient that offer high input voltage capability. They deliver current outputs up to 4 A with high switching frequency for driving high-brightness LEDs.
LED Drivers, Lighting ICs, STMicroelectronics
