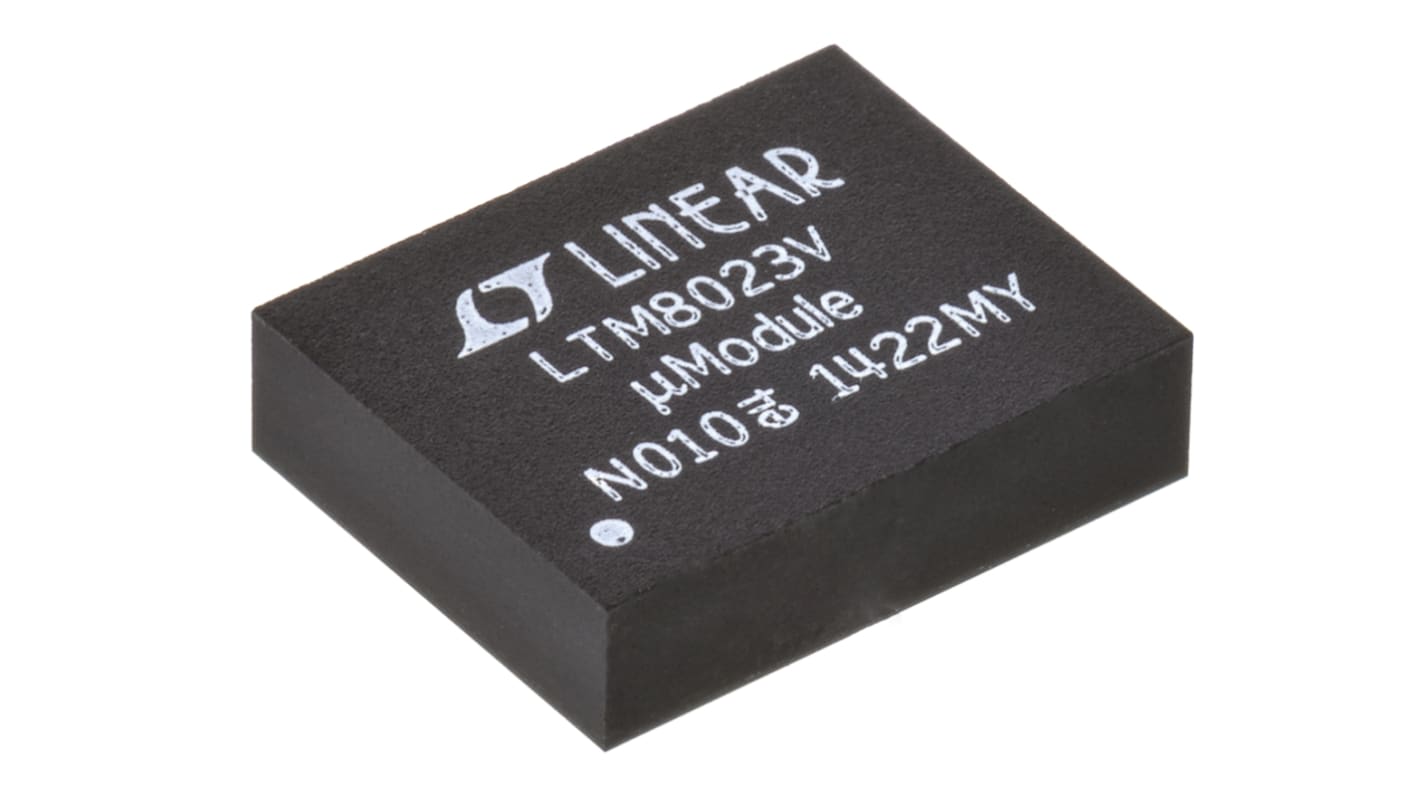

Analog Devices LTM8023IV#PBF, 1-Channel, Step Down DC-DC Converter, Adjustable 50-Pin, LGA
- RS Stock No.:
- 761-9705
- Mfr. Part No.:
- LTM8023IV#PBF
- Brand:
- Analog Devices
Discontinued
- RS Stock No.:
- 761-9705
- Mfr. Part No.:
- LTM8023IV#PBF
- Brand:
- Analog Devices
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Analog Devices | |
| Minimum Output Voltage | 0.8 V | |
| Maximum Output Voltage | 10 V | |
| Minimum Input Voltage | 3.6 V | |
| Maximum Input Voltage | 36 V | |
| Maximum Output Current | 2A | |
| Converter Type | Step Down | |
| Number of Outputs | 1 | |
| Output Type | Adjustable | |
| Mounting Type | Surface Mount | |
| Package Type | LGA | |
| Pin Count | 50 | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Temperature | -40 °C | |
| Dimensions | 11.25 x 9 x 2.82mm | |
| Switching Regulator | Yes | |
| Length | 11.25mm | |
| Load Regulation | 0.4 % | |
| Width | 9mm | |
| Height | 2.82mm | |
| Line Regulation | 0.1 % | |
| Select all | ||
|---|---|---|
Brand Analog Devices | ||
Minimum Output Voltage 0.8 V | ||
Maximum Output Voltage 10 V | ||
Minimum Input Voltage 3.6 V | ||
Maximum Input Voltage 36 V | ||
Maximum Output Current 2A | ||
Converter Type Step Down | ||
Number of Outputs 1 | ||
Output Type Adjustable | ||
Mounting Type Surface Mount | ||
Package Type LGA | ||
Pin Count 50 | ||
Maximum Operating Temperature +85 °C | ||
Minimum Operating Temperature -40 °C | ||
Dimensions 11.25 x 9 x 2.82mm | ||
Switching Regulator Yes | ||
Length 11.25mm | ||
Load Regulation 0.4 % | ||
Width 9mm | ||
Height 2.82mm | ||
Line Regulation 0.1 % | ||
μModule Regulators, Single Output
Linear Technology’s DC/DC μModule (micro-module) regulators offer a complete system-in-package (SiP) power management solution. These step-down (buck) modules incorporate an integrated DC/DC controller, compensation components, power transistors, inductor and input and output capacitors. They offer a low EMI compliant solution with EN55022 class B standards in some products, along with output source and sink current capabilities. The compact design and high efficiency of these μModule regulators make them ideal for use in a multitude of applications such as telecom and networking equipment, Industrial equipment and ATCA cards/servers.
Switching Voltage Regulators, Linear Technology
Linear Technology product series of synchronous and non-synchronous internal switching regulator ICs offer high efficiency plus a wide input voltage range and switching frequencies up to 4MHz.
The controllers span over several types of configurations from buck (step-down), boost (step-up), buck-boost, forward, Isolated, Inverting and flyback controllers. The Flyback, Forward and Isolated Controllers primary and secondary side provide a solution to help replace the DC/DC bricks that get used in back-plane power conversion.
The controllers span over several types of configurations from buck (step-down), boost (step-up), buck-boost, forward, Isolated, Inverting and flyback controllers. The Flyback, Forward and Isolated Controllers primary and secondary side provide a solution to help replace the DC/DC bricks that get used in back-plane power conversion.
