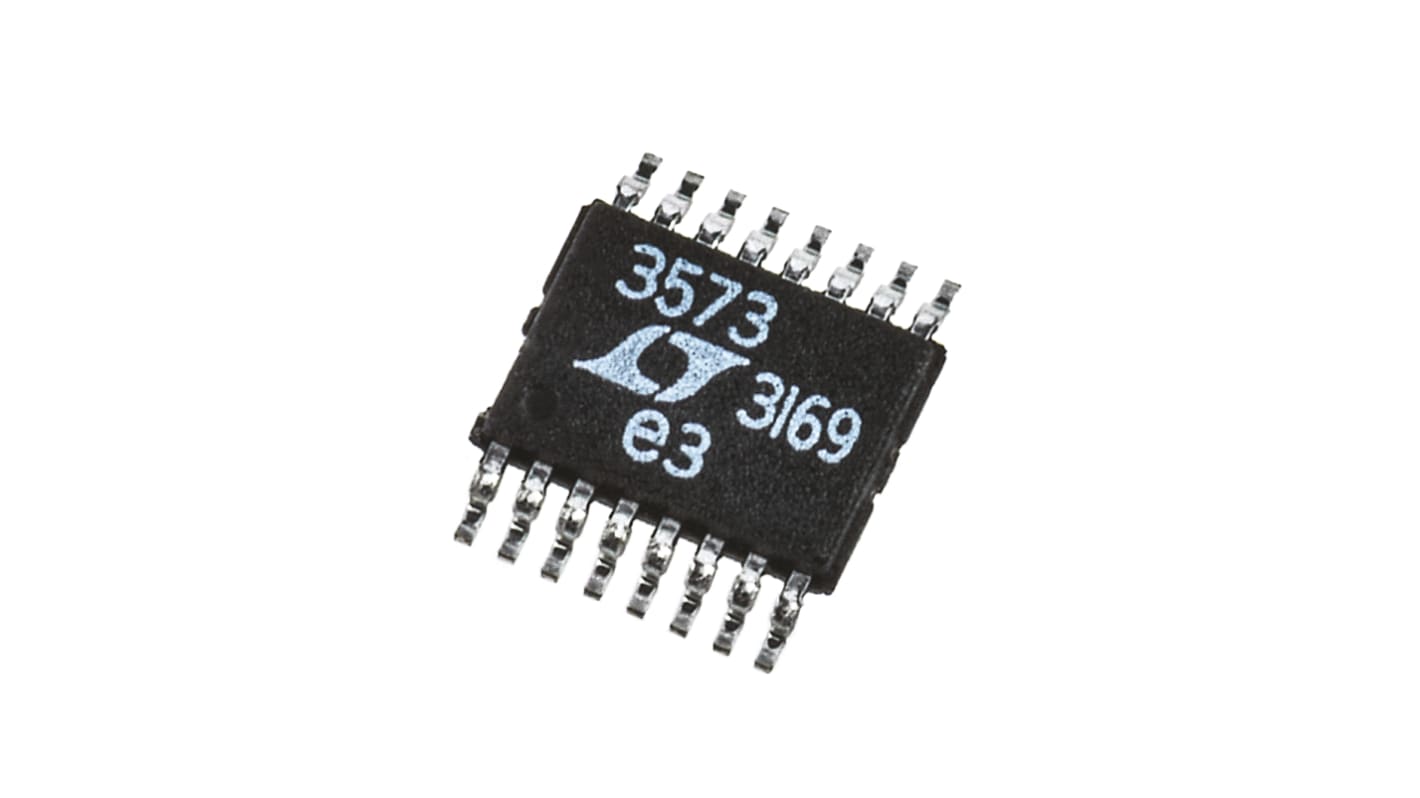

Analog Devices LT3573EMSE#PBF, 1-Channel, Flyback DC-DC Converter 16-Pin, MSOP
- RS Stock No.:
- 761-8768
- Mfr. Part No.:
- LT3573EMSE#PBF
- Brand:
- Analog Devices
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 761-8768
- Mfr. Part No.:
- LT3573EMSE#PBF
- Brand:
- Analog Devices
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Analog Devices | |
| Maximum Output Voltage | 1.23 V | |
| Minimum Input Voltage | 3 V | |
| Maximum Input Voltage | 40 V | |
| Converter Type | Flyback | |
| Number of Outputs | 1 | |
| Output Type | Fixed | |
| Mounting Type | Surface Mount | |
| Maximum Switching Frequency | 1 MHz | |
| Package Type | MSOP | |
| Pin Count | 16 | |
| Maximum Operating Temperature | +125 °C | |
| Minimum Operating Temperature | -40 °C | |
| Length | 4.04mm | |
| Dimensions | 4.039 x 3 x 0.86mm | |
| Height | 0.86mm | |
| Width | 3mm | |
| Line Regulation | 0.03 %/V | |
| Switching Regulator | Yes | |
Select all | ||
|---|---|---|
Brand Analog Devices | ||
Maximum Output Voltage 1.23 V | ||
Minimum Input Voltage 3 V | ||
Maximum Input Voltage 40 V | ||
Converter Type Flyback | ||
Number of Outputs 1 | ||
Output Type Fixed | ||
Mounting Type Surface Mount | ||
Maximum Switching Frequency 1 MHz | ||
Package Type MSOP | ||
Pin Count 16 | ||
Maximum Operating Temperature +125 °C | ||
Minimum Operating Temperature -40 °C | ||
Length 4.04mm | ||
Dimensions 4.039 x 3 x 0.86mm | ||
Height 0.86mm | ||
Width 3mm | ||
Line Regulation 0.03 %/V | ||
Switching Regulator Yes | ||
Switching Regulators, Flyback, Forward and Isolated Controllers, Linear Technology
Switching Voltage Regulators, Linear Technology
Linear Technology product series of synchronous and non-synchronous internal switching regulator ICs offer high efficiency plus a wide input voltage range and switching frequencies up to 4MHz.
The controllers span over several types of configurations from buck (step-down), boost (step-up), buck-boost, forward, Isolated, Inverting and flyback controllers. The Flyback, Forward and Isolated Controllers primary and secondary side provide a solution to help replace the DC/DC bricks that get used in back-plane power conversion.
The controllers span over several types of configurations from buck (step-down), boost (step-up), buck-boost, forward, Isolated, Inverting and flyback controllers. The Flyback, Forward and Isolated Controllers primary and secondary side provide a solution to help replace the DC/DC bricks that get used in back-plane power conversion.
