- RS Stock No.:
- 250-8997
- Mfr. Part No.:
- 1779205341
- Brand:
- Wurth Elektronik
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Not available for guaranteed pre 9am/10am delivery
Added
Price Each (In a Tube of 25)
£2.89
(exc. VAT)
£3.47
(inc. VAT)
Units | Per unit | Per Tube* |
25 - 25 | £2.89 | £72.25 |
50 - 100 | £2.746 | £68.65 |
125 - 225 | £2.608 | £65.20 |
250 - 600 | £2.478 | £61.95 |
625 + | £2.354 | £58.85 |
*price indicative |
- RS Stock No.:
- 250-8997
- Mfr. Part No.:
- 1779205341
- Brand:
- Wurth Elektronik
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

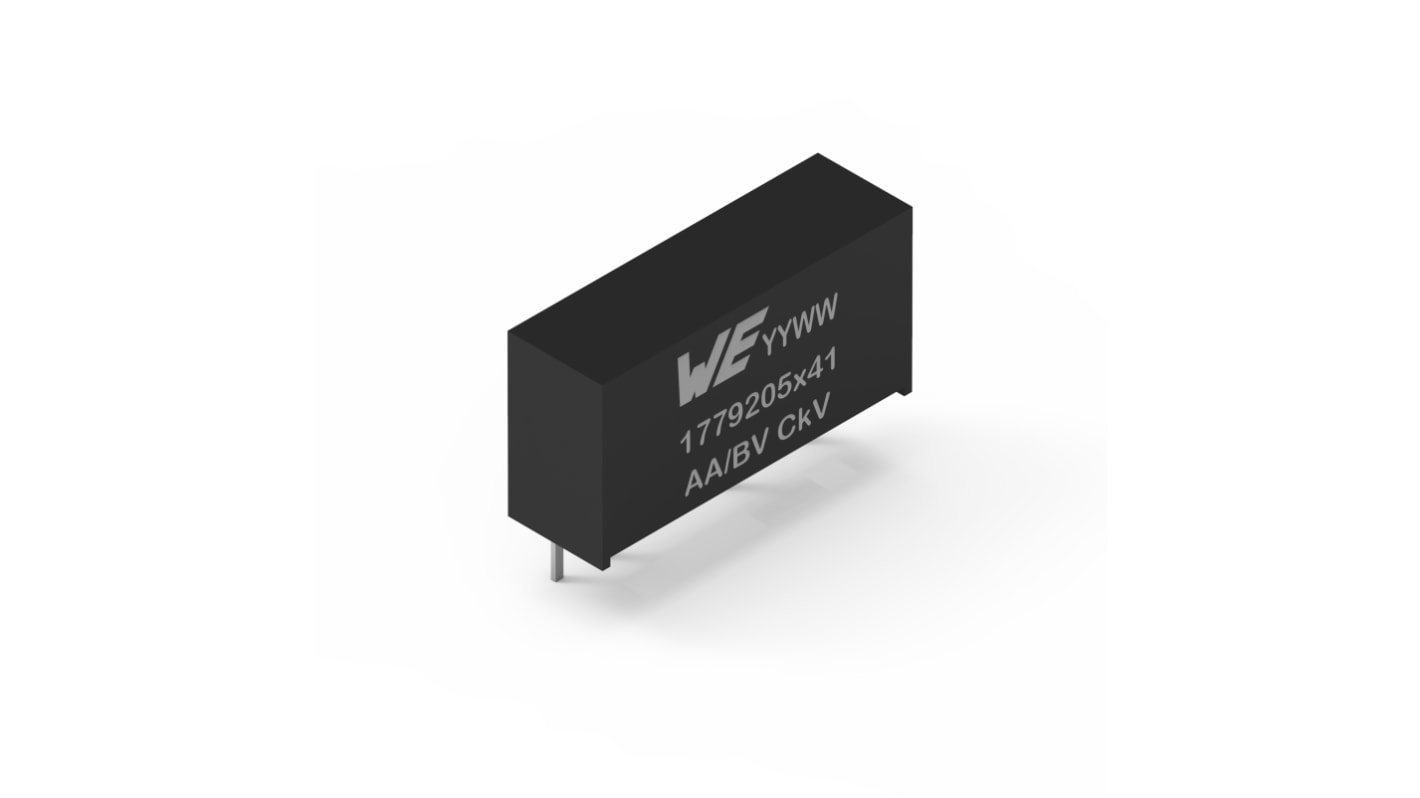

The Wurth Elektronik FISM power module family is an unregulated, functional isolated, fully integrated DC/DC converter. The module integrates the switching power stage, control circuitry, transformer and input/output capacitors. The module requires no external components for operation thus reducing design effort and complexity to a minimum. The FISM ensures fast time to market and low development costs. The 1779205x41 series of the FISM family achieves typically an efficiency of 80% up to 86%. The series is available in a SIP-7 package (19.65 x6 x 10.16mm).
3kV DC functional isolation for 60s
Continuous short-circuit protection
Current capability up to 0.2A
Output voltage: 5V unregulated
Continuous output power: 1W
Integrated CIN, COUT and transformer
Output voltage accuracy: Typ. +3% / -2.5%
Operating ambient temperature range: -40°C to 105°C
RoHS & REACh compliant
Continuous short-circuit protection
Current capability up to 0.2A
Output voltage: 5V unregulated
Continuous output power: 1W
Integrated CIN, COUT and transformer
Output voltage accuracy: Typ. +3% / -2.5%
Operating ambient temperature range: -40°C to 105°C
RoHS & REACh compliant
Specifications
Attribute | Value |
---|---|
Minimum Output Voltage | -0.7 V |
Maximum Output Voltage | 5 V |
Minimum Input Voltage | 21.6 V |
Maximum Input Voltage | 26.4 V |
Minimum Output Current | 200mA |
Converter Type | Isolated, Un-Regulated |
