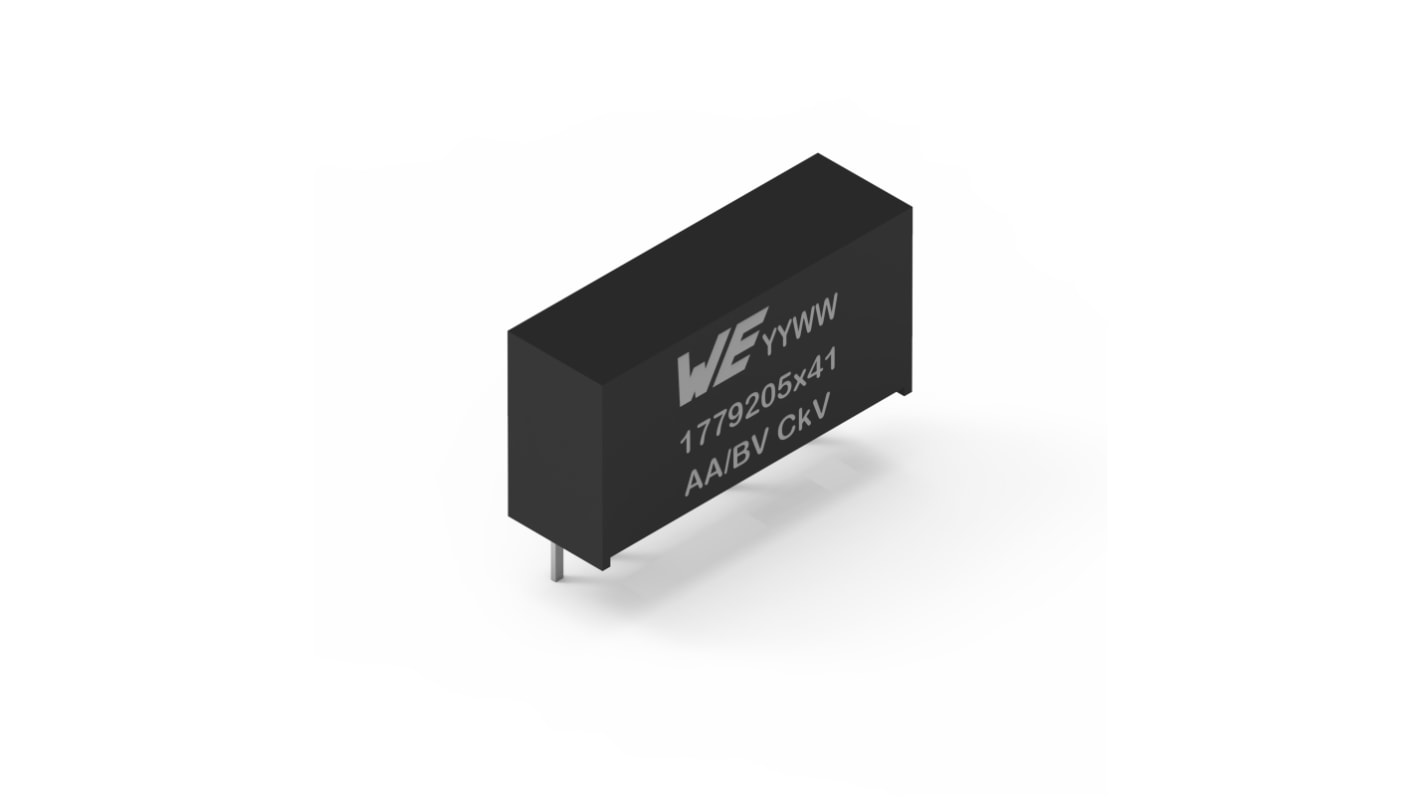

Wurth Elektronik 1769205241, Isolated, Un-Regulated DC-DC Converter, 200mA

View all DC-DC Converters ICs
Bulk discount available

Subtotal (1 pack of 2 units)*

£7.61

(exc. VAT)

£9.132

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 260 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
2 - 8£3.805£7.61
10 - 48£3.58£7.16
50 - 198£3.29£6.58
200 - 498£3.035£6.07
500 +£2.785£5.57

*price indicative

Packaging Options:
RS Stock No.:
250-8974
Mfr. Part No.:
1769205241
Brand:
Wurth Elektronik
Find similar products by selecting one or more attributes.
Select all

Brand

Wurth Elektronik

Minimum Output Voltage

-0.7 V

Maximum Output Voltage

5 V

Minimum Input Voltage

10.8 V

Maximum Input Voltage

13.2 V

Minimum Output Current

200mA

Converter Type

Isolated, Un-Regulated

COO (Country of Origin):
CN
The Wurth Elektronik FISM power module family is an unregulated, functional isolated, fully integrated DC/DC converter. The module integrates the switching power stage, control circuitry, transformer and input/output capacitors. The module requires no external components for operation thus reducing design effort and complexity to a minimum. The FISM ensures fast time to market and low development costs. The 1769205x41 series of the FISM family achieves typically an efficiency of 86% up to 92%. The series is available in a SMT-8 package (13.20 x 11.4 x 7.55mm).

3kV DC functional isolation for 60s
Continuous short-circuit protection
Current capability up to 0.2A
Output voltage: 5V unregulated
Continuous output power: 1W
Integrated CIN, COUT and transformer
Output voltage accuracy: Typ. +5% / -2.5%
Operating switching frequency: 600kHz
RoHS & REACh compliant
