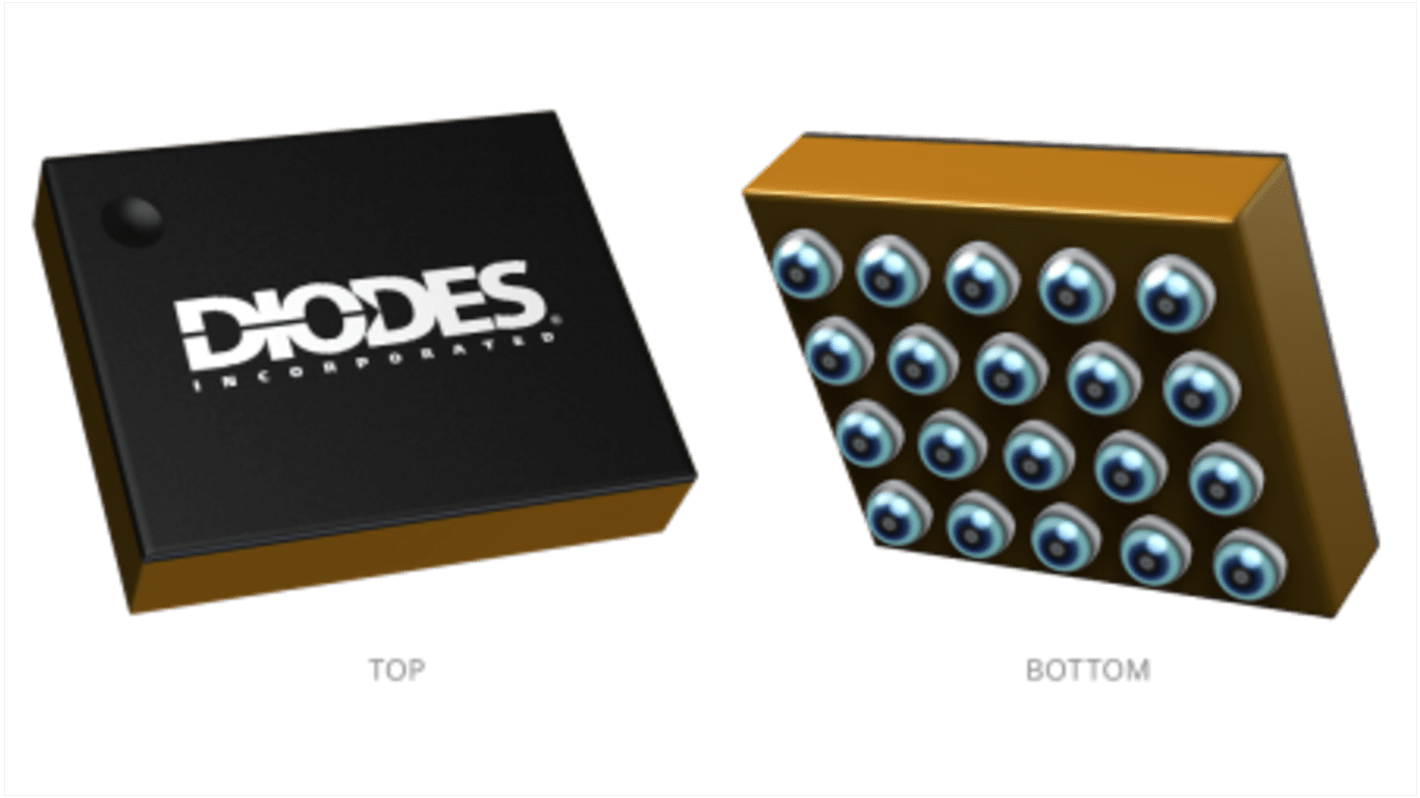

DiodesZetex AP72200CT20-7, Dual-Channel, Step-Down/Up DC-DC Converter, 2A 20-Pin, WLCSP-20

View all DC-DC Converters ICs

Subtotal (1 reel of 3000 units)*

£1,077.00

(exc. VAT)

£1,293.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 25 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
3000 +£0.359£1,077.00

*price indicative

RS Stock No.:
246-6647
Mfr. Part No.:
AP72200CT20-7
Brand:
DiodesZetex
Find similar products by selecting one or more attributes.
Select all

Brand

DiodesZetex

Minimum Output Voltage

2.6 V

Maximum Output Voltage

5.14 V

Minimum Input Voltage

2.3 V

Maximum Input Voltage

5.5 V

Minimum Output Current

2A

Converter Type

Step Down, Step Up

Number of Outputs

2

Package Type

WLCSP-20

Pin Count

20

The DiodesZetex makes a high-current synchronous buck-boost converter providing high efficiency, excellent transient response, and high DC output accuracy. The targeted applications are smartphones, tablets, and other handheld devices. The device utilizes a four-switch H-bridge configuration to support buck and boost operation. The buck-boost provides at least 2A output current. This IC is available in a small 2.125mm x 1.750mm, 20 balls WLCSP package.

Input voltage range is from 2.3 V to 5.5 V Output voltage range is 2.6 V to 5.14 V Switching frequency of 2.5MHz and selectable mode PFM/PWM Ultrasonic operation programmable through I2C
