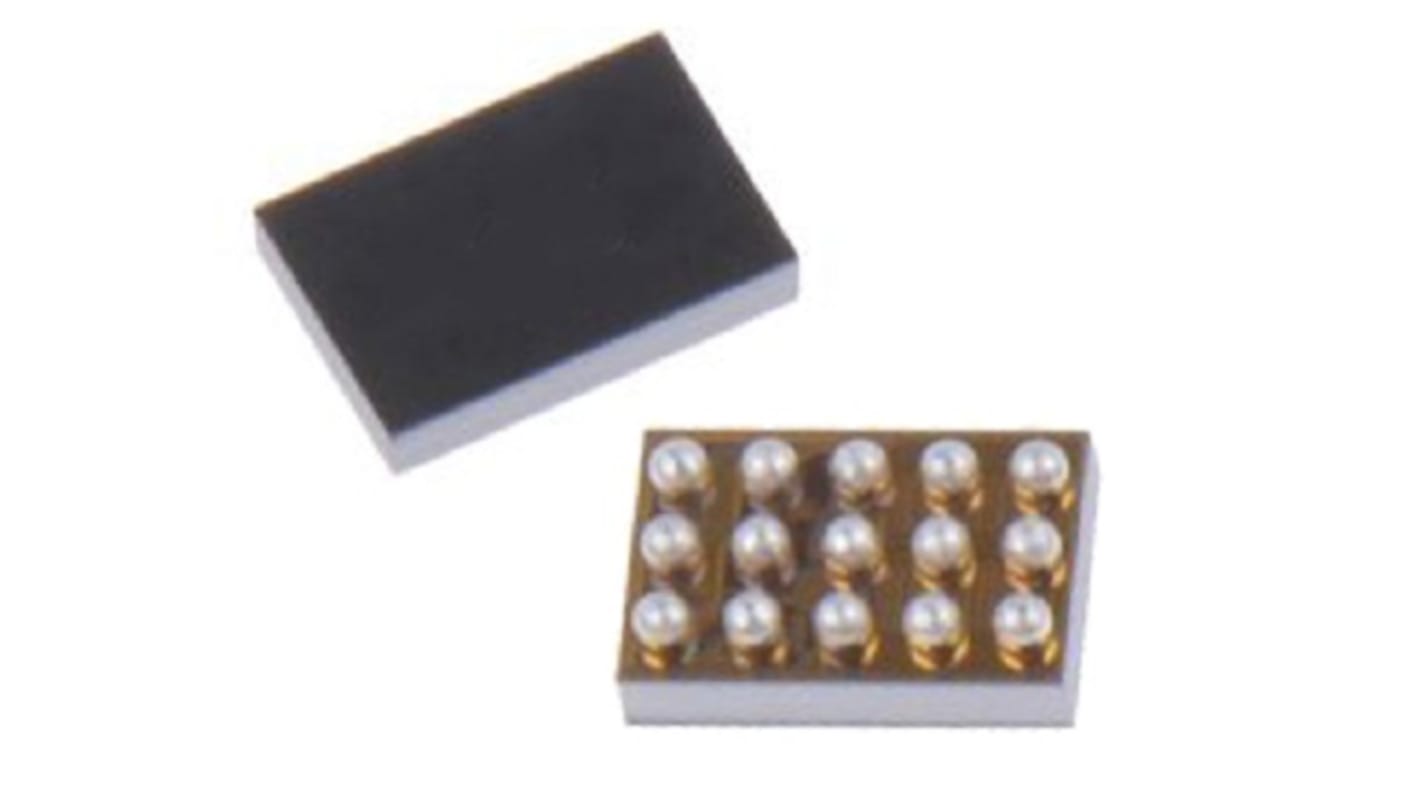

onsemi FAN53526UC224X, Step Down DC-DC Converter, 6.25mA, WLCSP
- RS Stock No.:
- 230-9033
- Mfr. Part No.:
- FAN53526UC224X
- Brand:
- onsemi
Subtotal (1 reel of 3000 units)*
£1,791.00
(exc. VAT)
£2,148.00
(inc. VAT)
FREE delivery for orders over £50.00
Being discontinued
- Final 3,000 unit(s), ready to ship
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.597 | £1,791.00 |
*price indicative
- RS Stock No.:
- 230-9033
- Mfr. Part No.:
- FAN53526UC224X
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Minimum Output Voltage | 0.6 V | |
| Maximum Output Voltage | 1.39 V | |
| Minimum Input Voltage | 2.5 V | |
| Maximum Input Voltage | 5 V | |
| Minimum Output Current | 6.25mA | |
| Converter Type | Step Down | |
| Package Type | WLCSP | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Minimum Output Voltage 0.6 V | ||
Maximum Output Voltage 1.39 V | ||
Minimum Input Voltage 2.5 V | ||
Maximum Input Voltage 5 V | ||
Minimum Output Current 6.25mA | ||
Converter Type Step Down | ||
Package Type WLCSP | ||
The ON Semiconductor series FAN53526 is a step−down switching voltage regulator that delivers a digitally programmable output from an input voltage supply of 2.5 V to 5.5 V. The output voltage is programmed through an I2C interface capable of operating up to 3.4 MHz Using a proprietary architecture with synchronous rectification, the FAN53526 is capable of delivering 3.0 A continuous at over 80% efficiency, maintaining that efficiency at load currents as low as 10 mA.
Fixed−Frequency Operation: 2.4 MHz
Best−in−Class Load Transient
Continuous Output Current Capability: 3.0 A
2.5 V to 5.5 V Input Voltage Range
Digitally Programmable Output Voltage:
0.600 V to 1.39375 V in 6.25 mV Steps
Programmable Slew Rate for Voltage Transitions
I2C−Compatible Interface Up to 3.4 Mbps
PFM Mode for High Efficiency in Light-Load
Quiescent Current in PFM Mode: 50 A (Typical)
Input Under−Voltage Lockout (UVLO)
Thermal Shutdown and Overload Protection
15−Bump Wafer−Level Chip Scale Package (WLCSP)
Best−in−Class Load Transient
Continuous Output Current Capability: 3.0 A
2.5 V to 5.5 V Input Voltage Range
Digitally Programmable Output Voltage:
0.600 V to 1.39375 V in 6.25 mV Steps
Programmable Slew Rate for Voltage Transitions
I2C−Compatible Interface Up to 3.4 Mbps
PFM Mode for High Efficiency in Light-Load
Quiescent Current in PFM Mode: 50 A (Typical)
Input Under−Voltage Lockout (UVLO)
Thermal Shutdown and Overload Protection
15−Bump Wafer−Level Chip Scale Package (WLCSP)
