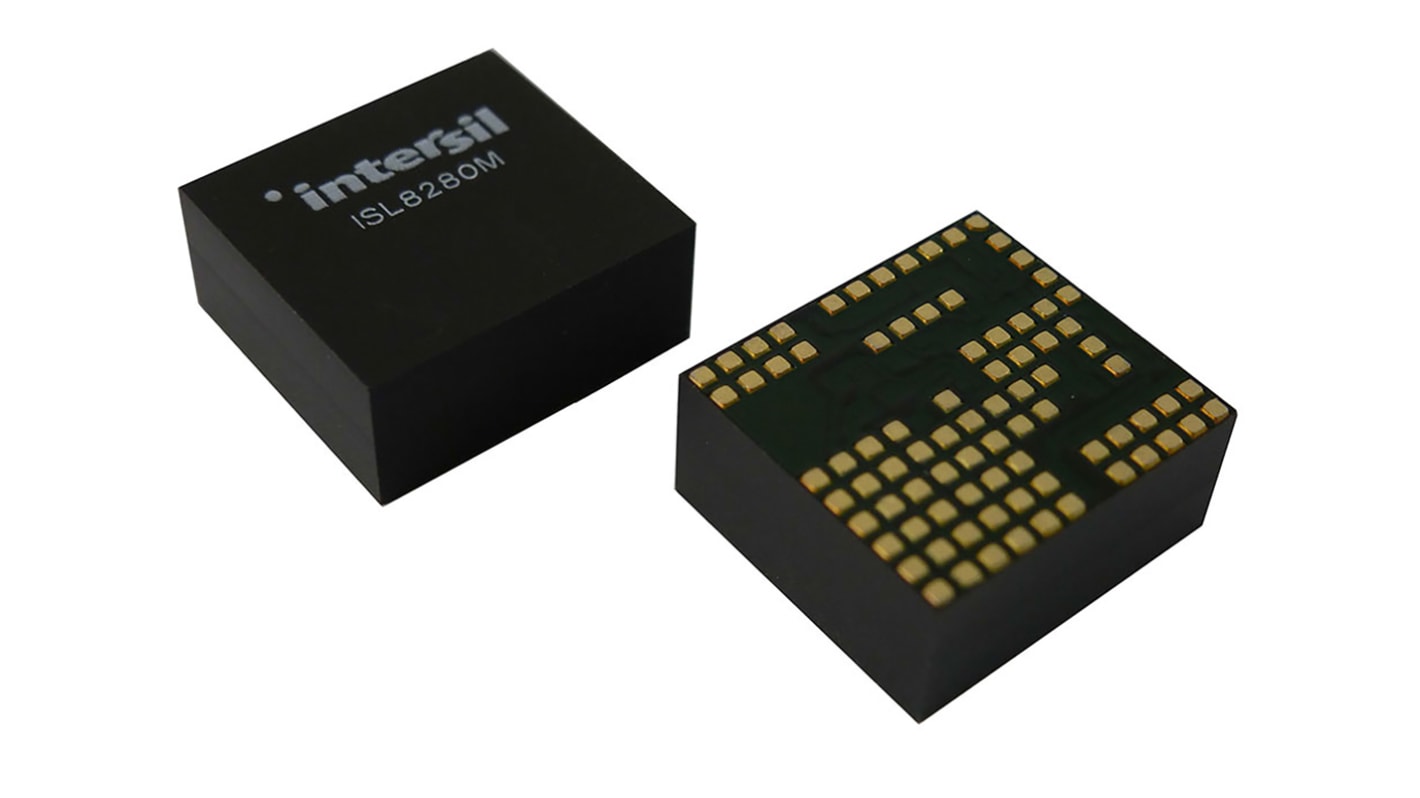

Renesas Electronics ISL8280MFRZ, 1-Channel, Step Down DC-DC Converter, Adjustable, 0A 83-Pin, HDA
- RS Stock No.:
- 186-2030
- Mfr. Part No.:
- ISL8280MFRZ
- Brand:
- Renesas Electronics
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 186-2030
- Mfr. Part No.:
- ISL8280MFRZ
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Minimum Output Voltage | 0.5 V | |
| Maximum Output Voltage | 5 V | |
| Minimum Input Voltage | 4.5 V | |
| Maximum Input Voltage | 16.5 V | |
| Minimum Output Current | 0A | |
| Maximum Output Current | 10A | |
| Converter Type | Step Down | |
| Number of Outputs | 1 | |
| Output Type | Adjustable | |
| Mounting Type | Surface Mount | |
| Maximum Switching Frequency | 1 MHz | |
| Package Type | HDA | |
| Pin Count | 83 | |
| Maximum Operating Temperature | +125 °C | |
| Minimum Operating Temperature | -40 °C | |
| Dimensions | 12 x 11 x 5.27mm | |
| Width | 11mm | |
| Height | 5.27mm | |
| Efficiency | 95.2% | |
| Load Regulation | ±1.2 % | |
| Length | 12mm | |
| Switching Regulator | Yes | |
| Line Regulation | ±1.2 % | |
Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Minimum Output Voltage 0.5 V | ||
Maximum Output Voltage 5 V | ||
Minimum Input Voltage 4.5 V | ||
Maximum Input Voltage 16.5 V | ||
Minimum Output Current 0A | ||
Maximum Output Current 10A | ||
Converter Type Step Down | ||
Number of Outputs 1 | ||
Output Type Adjustable | ||
Mounting Type Surface Mount | ||
Maximum Switching Frequency 1 MHz | ||
Package Type HDA | ||
Pin Count 83 | ||
Maximum Operating Temperature +125 °C | ||
Minimum Operating Temperature -40 °C | ||
Dimensions 12 x 11 x 5.27mm | ||
Width 11mm | ||
Height 5.27mm | ||
Efficiency 95.2% | ||
Load Regulation ±1.2 % | ||
Length 12mm | ||
Switching Regulator Yes | ||
Line Regulation ±1.2 % | ||
Linear control loop for optimal transient response
Variable frequency and duty cycle control during load transient for fastest possible response
Inherent voltage feed-forward for wide range input
Input voltage range: 4.5V to 16.5V
Output voltage range: 0.5V to 5V
±1.5% load/line/temperature regulation with remote sense
Supports all ceramic solutions
Integrated LDOs for single input rail solution
SMBus/PMBus/I2C compatible up to 1.25MHz
256 boot-up voltage levels with a configuration pin
Seven switching frequency options from 300kHz to 1MHz
PFM operation option for improved light-load efficiency
Startup into precharged load
Power-good monitor for soft-start and fault detection
Comprehensive fault protection for high system reliability
Over-temperature protection
Output overcurrent and short-circuit protection
Output overvoltage and undervoltage protection
Open remote sense protection
Input UVLO and power sequence, fault reset
Compatible with Renesas PowerNavigator™ software
Thermally enhanced 12mmx11mmx5.3mm HDA package
Variable frequency and duty cycle control during load transient for fastest possible response
Inherent voltage feed-forward for wide range input
Input voltage range: 4.5V to 16.5V
Output voltage range: 0.5V to 5V
±1.5% load/line/temperature regulation with remote sense
Supports all ceramic solutions
Integrated LDOs for single input rail solution
SMBus/PMBus/I2C compatible up to 1.25MHz
256 boot-up voltage levels with a configuration pin
Seven switching frequency options from 300kHz to 1MHz
PFM operation option for improved light-load efficiency
Startup into precharged load
Power-good monitor for soft-start and fault detection
Comprehensive fault protection for high system reliability
Over-temperature protection
Output overcurrent and short-circuit protection
Output overvoltage and undervoltage protection
Open remote sense protection
Input UVLO and power sequence, fault reset
Compatible with Renesas PowerNavigator™ software
Thermally enhanced 12mmx11mmx5.3mm HDA package
