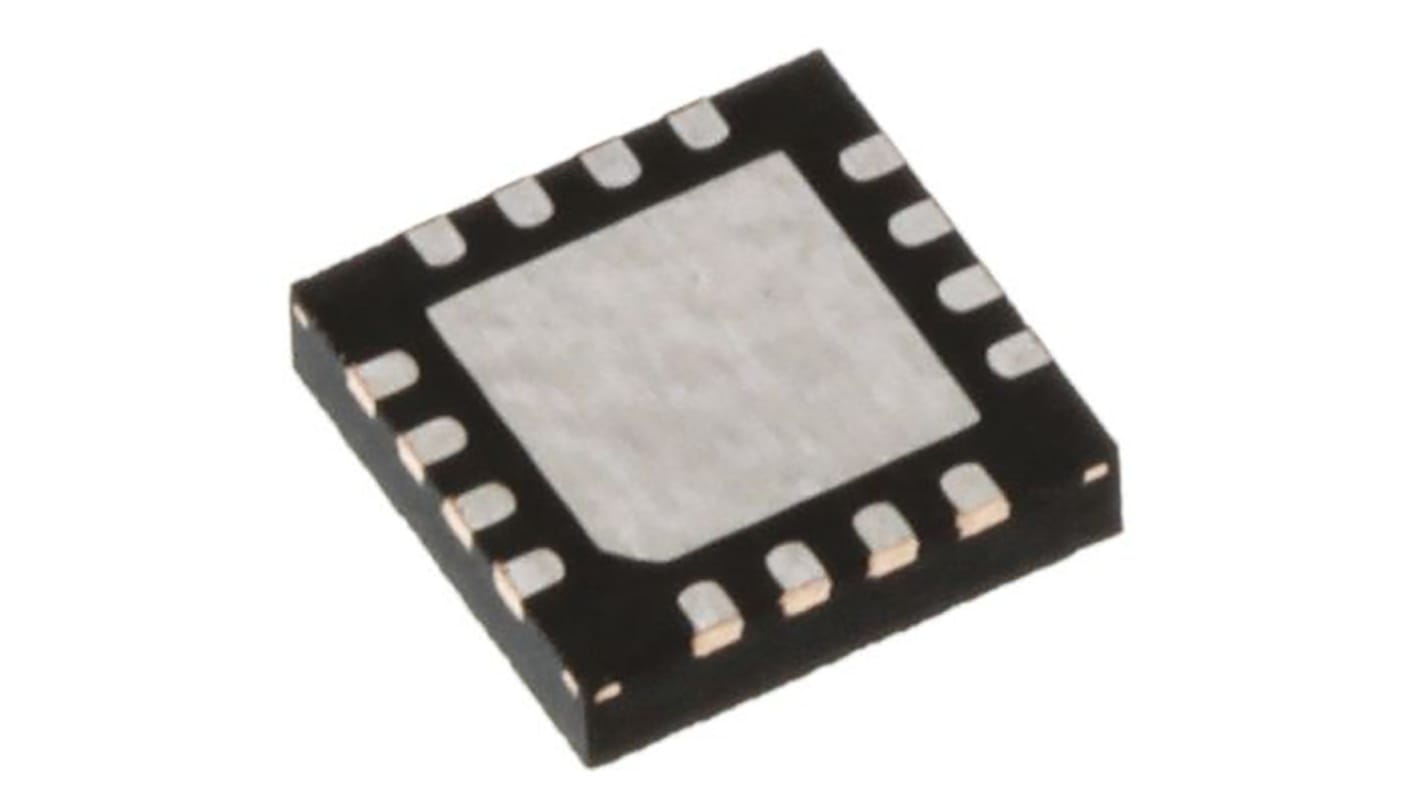

Texas Instruments TPS65233-1RTET, 1-Channel, Boost Converter DC-DC Converter, Adjustable 16-Pin, WQFN
- RS Stock No.:
- 168-5092
- Mfr. Part No.:
- TPS65233-1RTET
- Brand:
- Texas Instruments
Discontinued
- RS Stock No.:
- 168-5092
- Mfr. Part No.:
- TPS65233-1RTET
- Brand:
- Texas Instruments
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Minimum Output Voltage | 18.2 V | |
| Maximum Output Voltage | 19 V | |
| Minimum Input Voltage | 4.5 V | |
| Maximum Input Voltage | 20 V | |
| Converter Type | Boost Converter | |
| Number of Outputs | 1 | |
| Output Type | Adjustable | |
| Maximum Switching Frequency | 1 MHz | |
| Mounting Type | Surface Mount | |
| Package Type | WQFN | |
| Pin Count | 16 | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Temperature | -40 °C | |
| Width | 3.15mm | |
| Load Regulation | 0.7 %A | |
| Dimensions | 3.15 x 3.15 x 0.75mm | |
| Length | 3.15mm | |
| Line Regulation | 0.2 %/V | |
| Height | 0.75mm | |
| Switching Regulator | Yes | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Minimum Output Voltage 18.2 V | ||
Maximum Output Voltage 19 V | ||
Minimum Input Voltage 4.5 V | ||
Maximum Input Voltage 20 V | ||
Converter Type Boost Converter | ||
Number of Outputs 1 | ||
Output Type Adjustable | ||
Maximum Switching Frequency 1 MHz | ||
Mounting Type Surface Mount | ||
Package Type WQFN | ||
Pin Count 16 | ||
Maximum Operating Temperature +85 °C | ||
Minimum Operating Temperature -40 °C | ||
Width 3.15mm | ||
Load Regulation 0.7 %A | ||
Dimensions 3.15 x 3.15 x 0.75mm | ||
Length 3.15mm | ||
Line Regulation 0.2 %/V | ||
Height 0.75mm | ||
Switching Regulator Yes | ||
- COO (Country of Origin):
- PH
Power Management IC (PMIC), Texas Instruments
The Power Management Integrated Circuits (PMIC) are configurable multi-channel devices allow you to scale your power solutions. The PMIC handles the sequencing, voltage and current requirements of processors, Microcontrollers, FPGAs and system-level peripherals.
A PMIC integrates multiple DC-DC converters in one package. It simplifies the power design by reducing component count, while maintaining high-power efficiency and performance.
A PMIC integrates multiple DC-DC converters in one package. It simplifies the power design by reducing component count, while maintaining high-power efficiency and performance.
Power Management Multi-Channel IC (PMIC), Texas Instruments
The highly flexible and integrated PMIC configurable devices from Texas Instruments allow you to scale your power solutions to handle the sequencing, voltage and current requirements of processors, Microcontrollers, FPGAs and system-level peripherals.
