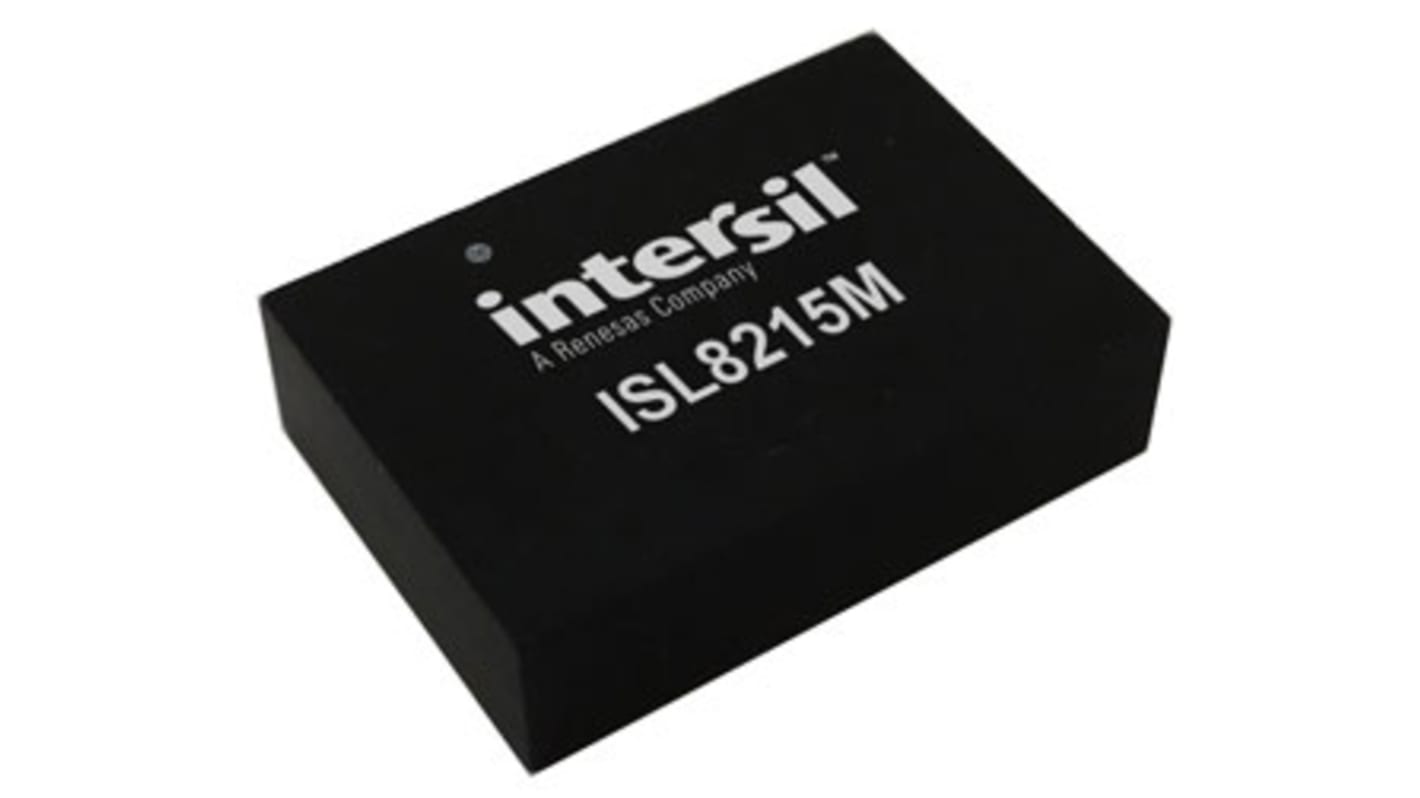

Intersil ISL8215MIRZ-T1, 1-Channel, DC-DC DC-DC Power Supply Module, Adjustable, 0A 22-Pin, HDA
- RS Stock No.:
- 158-5323
- Mfr. Part No.:
- ISL8215MIRZ-T1
- Brand:
- Intersil
Bulk discount available
Subtotal (1 unit)*
£18.75
(exc. VAT)
£22.50
(inc. VAT)
Stock information currently inaccessible
Units | Per unit |
|---|---|
| 1 - 4 | £18.75 |
| 5 - 9 | £17.81 |
| 10 - 24 | £16.88 |
| 25 - 49 | £16.50 |
| 50 + | £15.75 |
*price indicative
- RS Stock No.:
- 158-5323
- Mfr. Part No.:
- ISL8215MIRZ-T1
- Brand:
- Intersil
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Intersil | |
| Minimum Output Voltage | 0.6 V | |
| Maximum Output Voltage | 12 V | |
| Minimum Input Voltage | 7 V | |
| Maximum Input Voltage | 42 V | |
| Minimum Output Current | 0A | |
| Maximum Output Current | 15A | |
| Converter Type | DC-DC | |
| Number of Outputs | 1 | |
| Output Type | Adjustable | |
| Mounting Type | Surface Mount | |
| Maximum Switching Frequency | 2375 kHz | |
| Package Type | HDA | |
| Pin Count | 22 | |
| Maximum Operating Temperature | +125 °C | |
| Minimum Operating Temperature | -40 °C | |
| Load Regulation | 0.3 % | |
| Switching Regulator | Yes | |
| Line Regulation | 0.1 % | |
| Dimensions | 19 x 13 x 5.3mm | |
| Length | 19mm | |
| Height | 5.3mm | |
| Width | 13mm | |
| Efficiency | 96.5% | |
Select all | ||
|---|---|---|
Brand Intersil | ||
Minimum Output Voltage 0.6 V | ||
Maximum Output Voltage 12 V | ||
Minimum Input Voltage 7 V | ||
Maximum Input Voltage 42 V | ||
Minimum Output Current 0A | ||
Maximum Output Current 15A | ||
Converter Type DC-DC | ||
Number of Outputs 1 | ||
Output Type Adjustable | ||
Mounting Type Surface Mount | ||
Maximum Switching Frequency 2375 kHz | ||
Package Type HDA | ||
Pin Count 22 | ||
Maximum Operating Temperature +125 °C | ||
Minimum Operating Temperature -40 °C | ||
Load Regulation 0.3 % | ||
Switching Regulator Yes | ||
Line Regulation 0.1 % | ||
Dimensions 19 x 13 x 5.3mm | ||
Length 19mm | ||
Height 5.3mm | ||
Width 13mm | ||
Efficiency 96.5% | ||
The ISL8215M power module is a single-channel, synchronous step-down, non-isolated complete power supply, capable of delivering up to 15A of continuous current. Operating from a single 7V to 42V wide input power rail and integrating the controller, power inductor, and MOSFETs, the ISL8215M requires only a few external components to operate and is optimized for space constrained applications. Based on a valley current mode PWM control scheme, the ISL8215M provides fast transient response and excellent loop stability.
15A single-channel complete power supply
Integrates controller, MOSFETs, and inductor
7V to 42V wide input voltage range
0.6V to 12V wide output voltage range
40ns on-time low duty cycle conversion capable
±1.5% accuracy over line, load, and temperature
Up to 96.5% efficiency
Integrates controller, MOSFETs, and inductor
7V to 42V wide input voltage range
0.6V to 12V wide output voltage range
40ns on-time low duty cycle conversion capable
±1.5% accuracy over line, load, and temperature
Up to 96.5% efficiency
