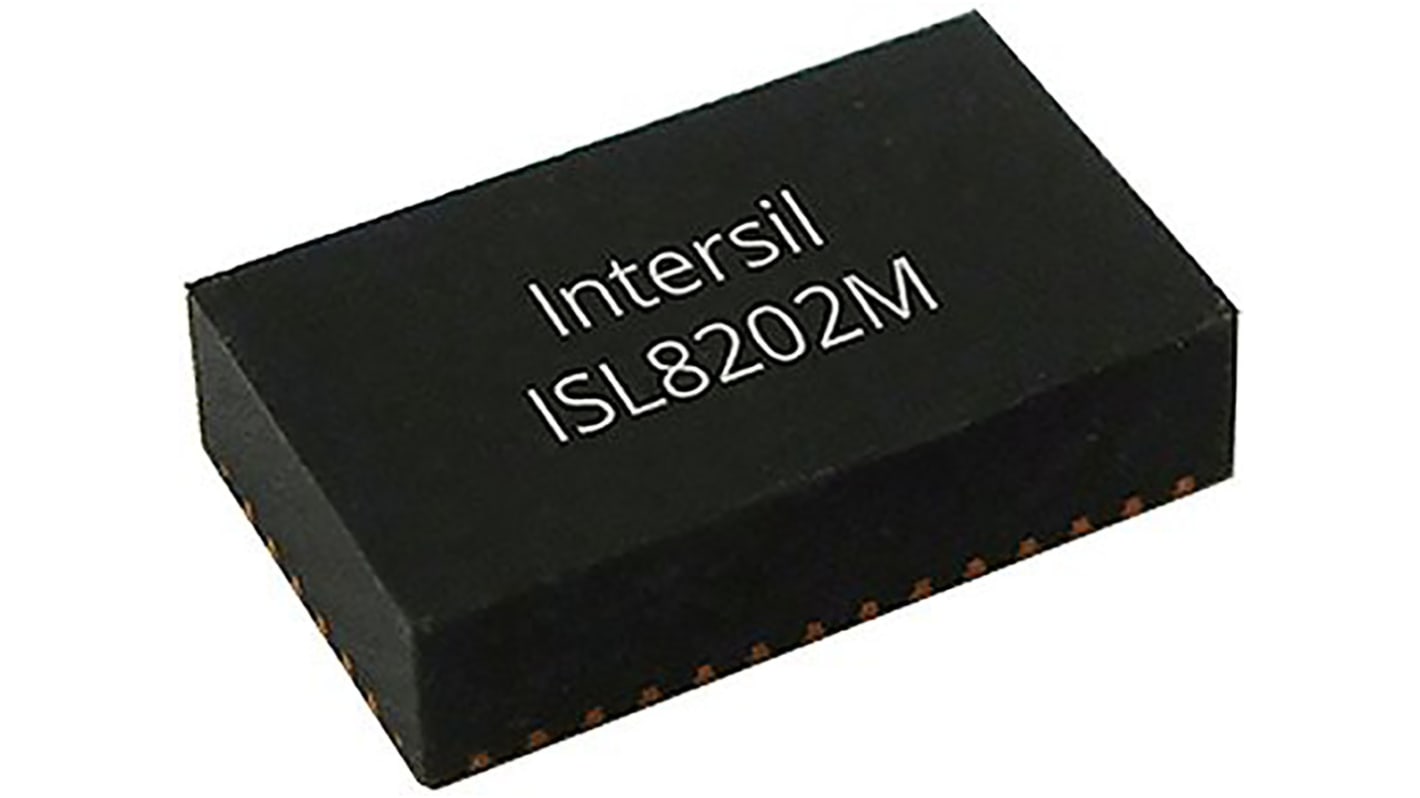

Intersil ISL8202MIRZ-T7A, 1-Channel, Step Down DC-DC Power Supply Module, Adjustable, 0A 22-Pin, QFN
- RS Stock No.:
- 125-0810
- Mfr. Part No.:
- ISL8202MIRZ-T7A
- Brand:
- Intersil
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 125-0810
- Mfr. Part No.:
- ISL8202MIRZ-T7A
- Brand:
- Intersil
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Intersil | |
| Minimum Output Voltage | 0.6 V | |
| Maximum Output Voltage | 5 V | |
| Minimum Input Voltage | 2.6 V | |
| Maximum Input Voltage | 5.5 V | |
| Minimum Output Current | 0A | |
| Maximum Output Current | 3A | |
| Converter Type | Step Down | |
| Number of Outputs | 1 | |
| Output Type | Adjustable | |
| Maximum Switching Frequency | 2070 kHz | |
| Mounting Type | Surface Mount | |
| Package Type | QFN | |
| Pin Count | 22 | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Temperature | -40 °C | |
| Height | 1.85mm | |
| Width | 4.5mm | |
| Length | 7.5mm | |
| Line Regulation | 0.66 % | |
| Load Regulation | 0.34 % | |
| Dimensions | 7.5 x 4.5 x 1.85mm | |
Select all | ||
|---|---|---|
Brand Intersil | ||
Minimum Output Voltage 0.6 V | ||
Maximum Output Voltage 5 V | ||
Minimum Input Voltage 2.6 V | ||
Maximum Input Voltage 5.5 V | ||
Minimum Output Current 0A | ||
Maximum Output Current 3A | ||
Converter Type Step Down | ||
Number of Outputs 1 | ||
Output Type Adjustable | ||
Maximum Switching Frequency 2070 kHz | ||
Mounting Type Surface Mount | ||
Package Type QFN | ||
Pin Count 22 | ||
Maximum Operating Temperature +85 °C | ||
Minimum Operating Temperature -40 °C | ||
Height 1.85mm | ||
Width 4.5mm | ||
Length 7.5mm | ||
Line Regulation 0.66 % | ||
Load Regulation 0.34 % | ||
Dimensions 7.5 x 4.5 x 1.85mm | ||
Analogue Power Modules, Intersil
Analogue power modules offer a fully integrated DC/DC switching step down converter. They combine the controller, power FETs, an output inductor and compensation circuitry in one package.
Power Modules, Intersil
