RS PRO Data Acquisition System, 20 Channel(s), Digital IO, LAN, USB, 6.5 digit
- RS Stock No.:
- 235-755
- Brand:
- RS PRO
Subtotal (1 unit)*
£1,826.40
(exc. VAT)
£2,191.68
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,826.40 |
*price indicative
- RS Stock No.:
- 235-755
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Number of Input Channels | 20 | |
| Resolution | 6.5 digit | |
| Connectivity | Digital IO, LAN, USB | |
| On Board Memory | 0.1M points | |
| Power Source | Mains | |
| Input Type | Digital | |
| Output Type | Digital | |
| Dimensions | 266.9 x 107 x 357.8mm | |
| Weight | 4.5kg | |
| Height | 107mm | |
| Length | 357.8mm | |
| Width | 266.9mm | |
| Maximum Operating Temperature | 55°C | |
| Minimum Operating Temperature | 0°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Number of Input Channels 20 | ||
Resolution 6.5 digit | ||
Connectivity Digital IO, LAN, USB | ||
On Board Memory 0.1M points | ||
Power Source Mains | ||
Input Type Digital | ||
Output Type Digital | ||
Dimensions 266.9 x 107 x 357.8mm | ||
Weight 4.5kg | ||
Height 107mm | ||
Length 357.8mm | ||
Width 266.9mm | ||
Maximum Operating Temperature 55°C | ||
Minimum Operating Temperature 0°C | ||
- COO (Country of Origin):
- TW

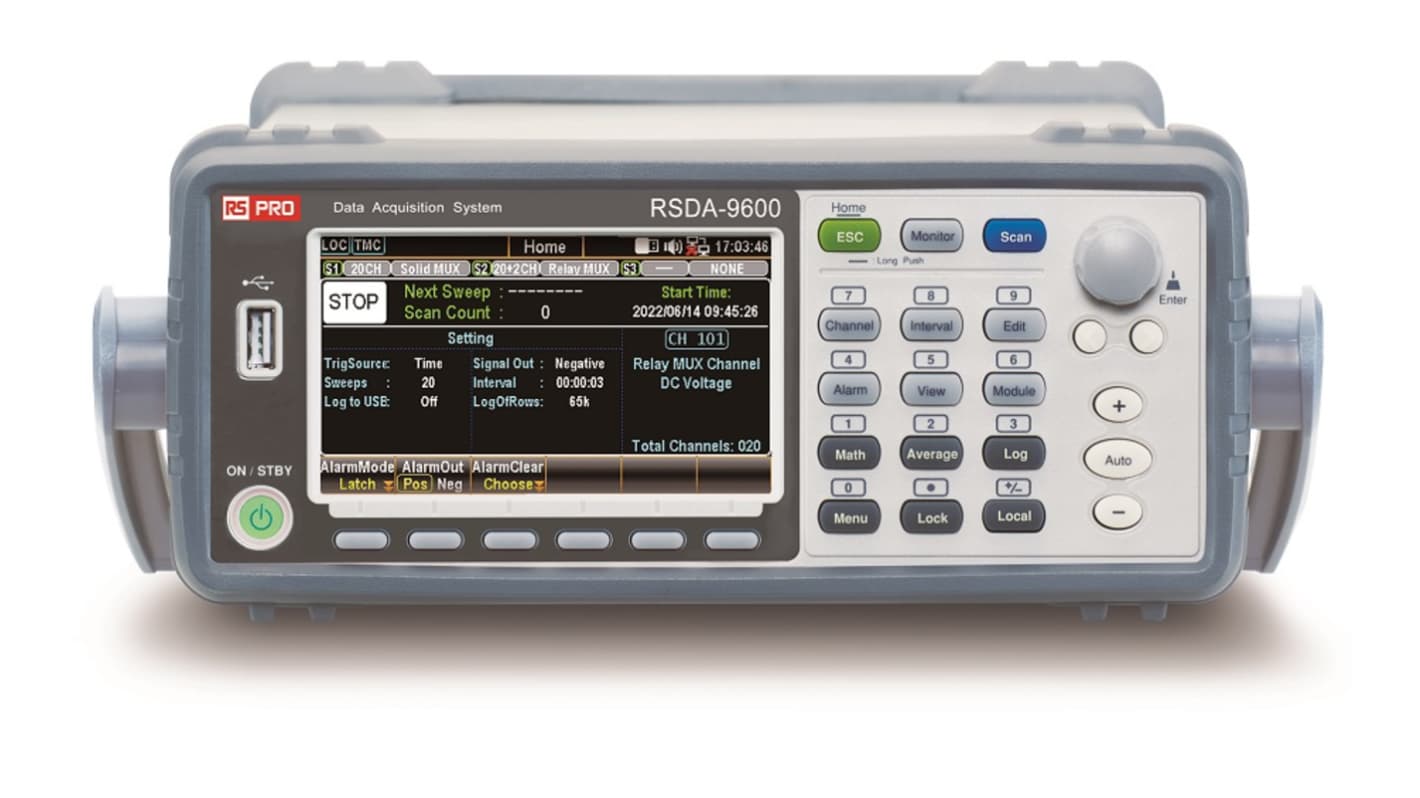

RS PRO Data Acquisition System, 4.3 Inch Display
The RS PRO Data Acquisition System is designed to efficiently capture and process a wide range of input signals. With its 4.3-inch colour display and versatile connectivity options, it is ideal for precise data monitoring and analysis in various industrial settings.
Features and Benefits
Large 4.3” TFT Colour Display: Provides clear and detailed data visualization
3-slot Mainframe with Built-in 6 Digit DMM: Enhances measurement accuracy and flexibility
Basic 0.0035% DCV Accuracy: Ensures precise voltage measurements
5 Selectable Switch Modules: Offers adaptability for different testing needs
Up to 450 Channel/s Scan Rate: Facilitates rapid data acquisition
Up to 100 kilo Points Internal Memory: Allows extensive data storage
Measures and Converts 14 Different Input Signals: Supports a wide range of measurements including temperature, voltage, and current
Command Compatible with the DAQ970A: Ensures seamless integration with existing systems
USB Storage Support: Enables easy data logging and transfer
Interfaces: Digital I/O, LAN, USB Host/Device, and optional Mini GPIB: Provides versatile connectivity options
Free PC Software RSDA-Data Logger: Simplifies test configuration and control
3-slot Mainframe with Built-in 6 Digit DMM: Enhances measurement accuracy and flexibility
Basic 0.0035% DCV Accuracy: Ensures precise voltage measurements
5 Selectable Switch Modules: Offers adaptability for different testing needs
Up to 450 Channel/s Scan Rate: Facilitates rapid data acquisition
Up to 100 kilo Points Internal Memory: Allows extensive data storage
Measures and Converts 14 Different Input Signals: Supports a wide range of measurements including temperature, voltage, and current
Command Compatible with the DAQ970A: Ensures seamless integration with existing systems
USB Storage Support: Enables easy data logging and transfer
Interfaces: Digital I/O, LAN, USB Host/Device, and optional Mini GPIB: Provides versatile connectivity options
Free PC Software RSDA-Data Logger: Simplifies test configuration and control
Applications
The RS PRO Data Acquisition System is suitable for use in laboratories, manufacturing plants, and research facilities where precise data collection and analysis are critical.
Additional Information
Includes free PC software RSDA-Data Logger for enhanced test management and data analysis capabilities.
