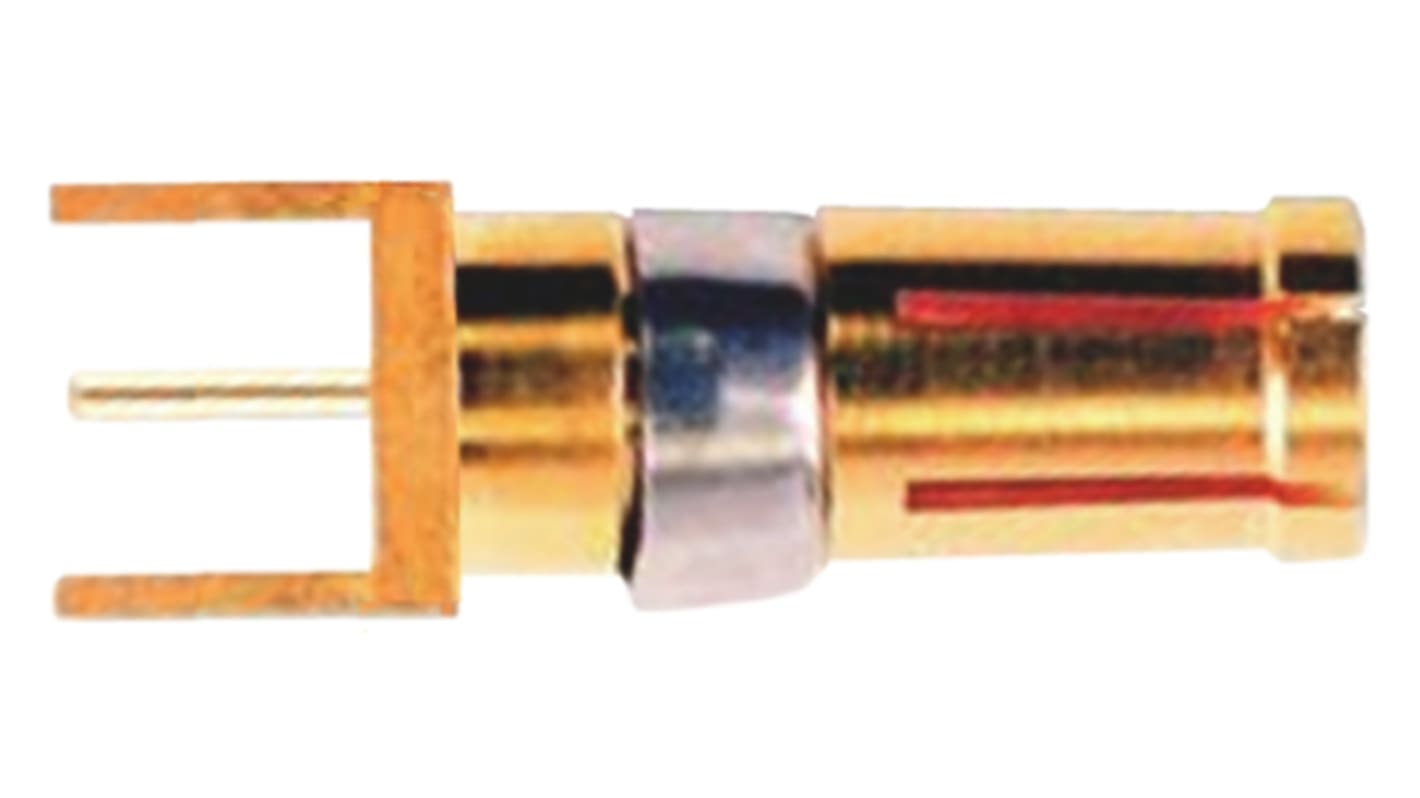

FCT, FME Female Solder D-Sub Connector Coaxial Contact, Gold over Nickel Coaxial

  • RS Stock No. 309-4159
  • Mfr. Part No. FME010S102 / 1731120049
  • Brand FCT
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

Coax, power and high-voltage contacts

A range of Coax, power and high-voltage contacts from FCT.

Power and coax contacts matching “D” hybrid contact plug housings
Contacts snap into housing
Can be removed using the ejection tool
Power contacts have soldered terminals
Coax contacts (straight type) accept RG178B/U and RG174A/U cables with crimping and soldered terminals
For use with crimping tool (see DIN41612 plug, type "M")
High-voltage contacts available for connecting voltages up to 3 kW

Mixed Contact 'D'

Mixed contact connectors suitable for making combined signal and power connections. Plug and socket options with solder bucket or 90° PCB terminations. Shell definition: 17W2 shell can have 17 mixed contacts in total. Shell is supplied with 15 signal contacts and has 2 cavities for power or coaxial contacts. Suitable for military, industrial or commercial applications and computer interfacing etc

Warning

  • Description "pin" or "jack" refers to the middle contact in each case
Specifications
Attribute Value
Gender Female
Contact Material Copper Alloy
Contact Plating Gold over Nickel
Contact Type Coaxial
Series FME
Current Rating 2A
Termination Method Solder
Length 17.2mm
1073 In stock - FREE next working day delivery available
Price Each
£ 5.19
(exc. VAT)
£ 6.23
(inc. VAT)
Units
Per unit
1 - 24
£5.19
25 - 74
£4.55
75 - 199
£4.33
200 +
£3.67
