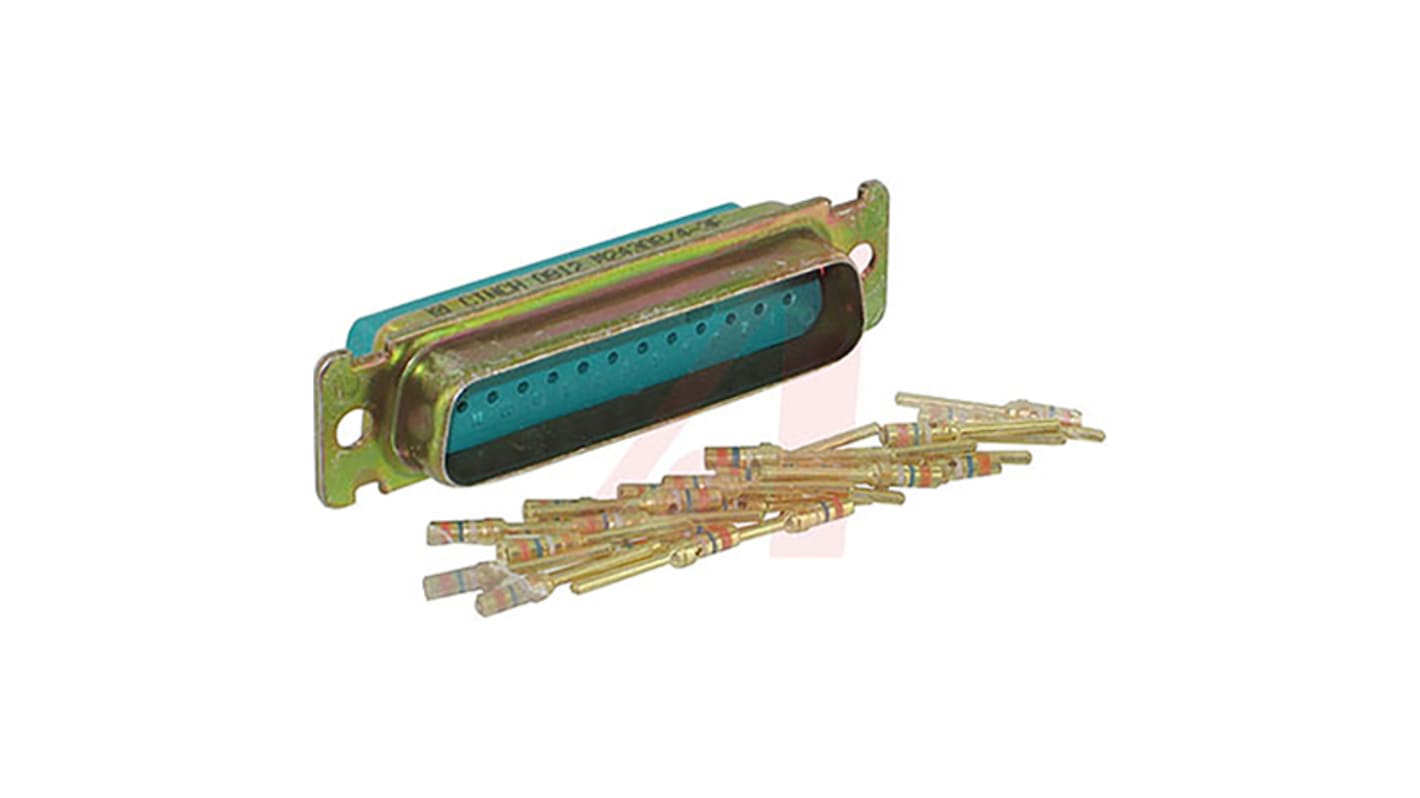

Cinch Connectivity M24308 series D-Sub metal shell connectors are designed for applications that require a rugged, durable and high performance D-Sub connector. The M24308 series is an ideal connector for applications where weight and space must be kept to a minimum while maintaining maximum reliability.
Meets all MIL-C-24308 Class G specifications Available as 9, 15, 25, 37, an 50 position High temperature rating
D-Sub Connectors - Cinch
Attribute
Value
Number of Contacts
25
Gender
Male
Body Orientation
Straight
Mounting Type
Cable Mount
Termination Method
Crimp
Current Rating
5.0A
Housing Material
Steel
Voltage Rating
1.25 kV
Length
53.04mm
Width
10.82mm
Depth
12.55mm
Contact Material
Brass
Contact Plating
Gold over Copper, Nickel
Dimensions
53.04 x 10.82 x 12.55mm
Series
M24308
Minimum Operating Temperature
-65.0°C
Maximum Operating Temperature
+125°C
