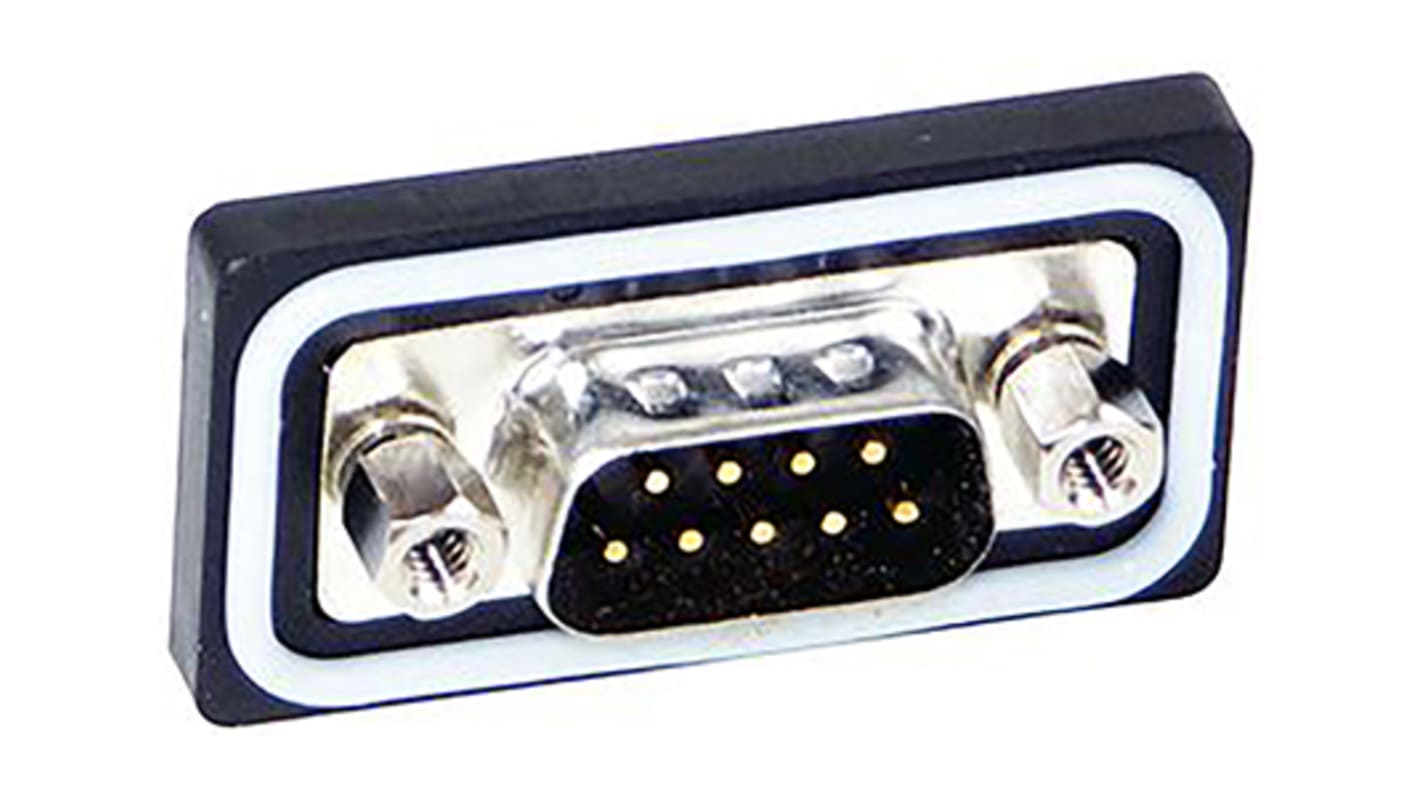

Switchcraft DCPD 9 Way Panel Mount D-sub Connector Plug
- RS Stock No.:
- 878-2296
- Mfr. Part No.:
- DCPDB09MSC1
- Brand:
- Switchcraft
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 878-2296
- Mfr. Part No.:
- DCPDB09MSC1
- Brand:
- Switchcraft
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Switchcraft | |
| Number of Contacts | 9 | |
| Gender | Male | |
| Body Orientation | Straight | |
| Mounting Type | Panel Mount | |
| D Connector Type | Standard D-Sub | |
| Termination Method | Solder | |
| D-Sub Shell Size | E | |
| Current Rating | 5.0A | |
| Housing Material | Steel | |
| Length | 39.5mm | |
| Width | 21.1mm | |
| Depth | 9.7mm | |
| Contact Material | Copper Alloy | |
| Series | DCPD | |
| Contact Plating | Gold | |
| Dimensions | 39.5 x 21.1 x 9.7mm | |
| Minimum Operating Temperature | -55.0°C | |
| Contact Size | 9 | |
| Maximum Operating Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand Switchcraft | ||
Number of Contacts 9 | ||
Gender Male | ||
Body Orientation Straight | ||
Mounting Type Panel Mount | ||
D Connector Type Standard D-Sub | ||
Termination Method Solder | ||
D-Sub Shell Size E | ||
Current Rating 5.0A | ||
Housing Material Steel | ||
Length 39.5mm | ||
Width 21.1mm | ||
Depth 9.7mm | ||
Contact Material Copper Alloy | ||
Series DCPD | ||
Contact Plating Gold | ||
Dimensions 39.5 x 21.1 x 9.7mm | ||
Minimum Operating Temperature -55.0°C | ||
Contact Size 9 | ||
Maximum Operating Temperature +85°C | ||
- COO (Country of Origin):
- US
DCP Data Con-X Panel Mount Connector
Robust range of waterproof connectors which can be used in a wide variety of applications including data control centres, manufacturing control centres and many more
D-Sub Connectors - Switchcraft
