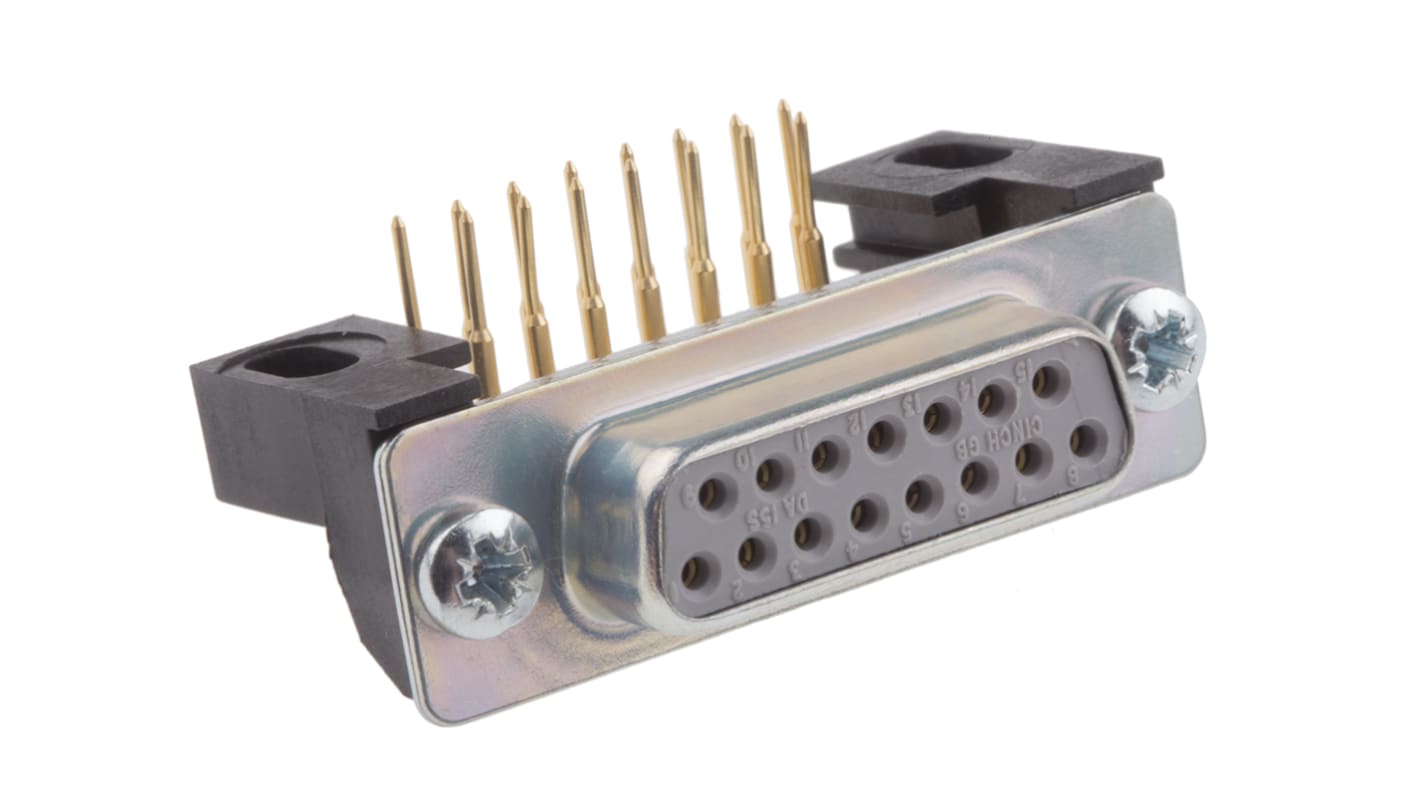

RS PRO 15 Way Right Angle Through Hole D-sub Connector Socket
- RS Stock No.:
- 437-5544
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£4.20
(exc. VAT)
£5.04
(inc. VAT)
- RS Stock No.:
- 437-5544
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Number of Contacts | 15 | |
| Gender | Female | |
| Body Orientation | Right Angle | |
| Mounting Type | Through Hole | |
| Termination Method | Solder | |
| Current Rating | 5.0A | |
| Housing Material | PET | |
| Voltage Rating | 750.0 V | |
| Contact Plating | Gold | |
| Contact Material | Copper Alloy | |
| Minimum Operating Temperature | -55.0°C | |
| Maximum Operating Temperature | +125°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Number of Contacts 15 | ||
Gender Female | ||
Body Orientation Right Angle | ||
Mounting Type Through Hole | ||
Termination Method Solder | ||
Current Rating 5.0A | ||
Housing Material PET | ||
Voltage Rating 750.0 V | ||
Contact Plating Gold | ||
Contact Material Copper Alloy | ||
Minimum Operating Temperature -55.0°C | ||
Maximum Operating Temperature +125°C | ||
- COO (Country of Origin):
- GB
RS PRO 15 Way Right Angle Through Hole D-Sub Connector Socket
Looking for a D-sub socket to accommodate your male connectors? Use this RS PRO solder-based, 15-way connector socket to establish secure connections between your electronic devices.
The gold-plated copper alloy contact material is highly conductive for a quality connection. You can be assured that the robust and lightweight polyethylene terephthalate (PET) housing is heat resistant and won't ignite or feed fires. This product can be fitted to devices used in computer cold rooms as it's manufactured to function under extreme temperatures. Zinc passivation protects the component against corrosion and increases its longevity.
The product's Restriction of Hazardous Substances (RoHS) certification means this item doesn't contain high levels of any harmful substances. This socket is suitable for computing units.
The gold-plated copper alloy contact material is highly conductive for a quality connection. You can be assured that the robust and lightweight polyethylene terephthalate (PET) housing is heat resistant and won't ignite or feed fires. This product can be fitted to devices used in computer cold rooms as it's manufactured to function under extreme temperatures. Zinc passivation protects the component against corrosion and increases its longevity.
The product's Restriction of Hazardous Substances (RoHS) certification means this item doesn't contain high levels of any harmful substances. This socket is suitable for computing units.
Features and Benefits
• Right angle body orientation
• Copper alloy contact material
• Gold contact plating
• Current rating of 5 A
• Voltage rating of 750 V
• Female gender
• PET housing material
• Maximum operating temperature of +125°C
• Minimum operating temperature of -55°C
• Through-hole mounting type
• 15 contacts
• Solder termination method
• Copper alloy contact material
• Gold contact plating
• Current rating of 5 A
• Voltage rating of 750 V
• Female gender
• PET housing material
• Maximum operating temperature of +125°C
• Minimum operating temperature of -55°C
• Through-hole mounting type
• 15 contacts
• Solder termination method
