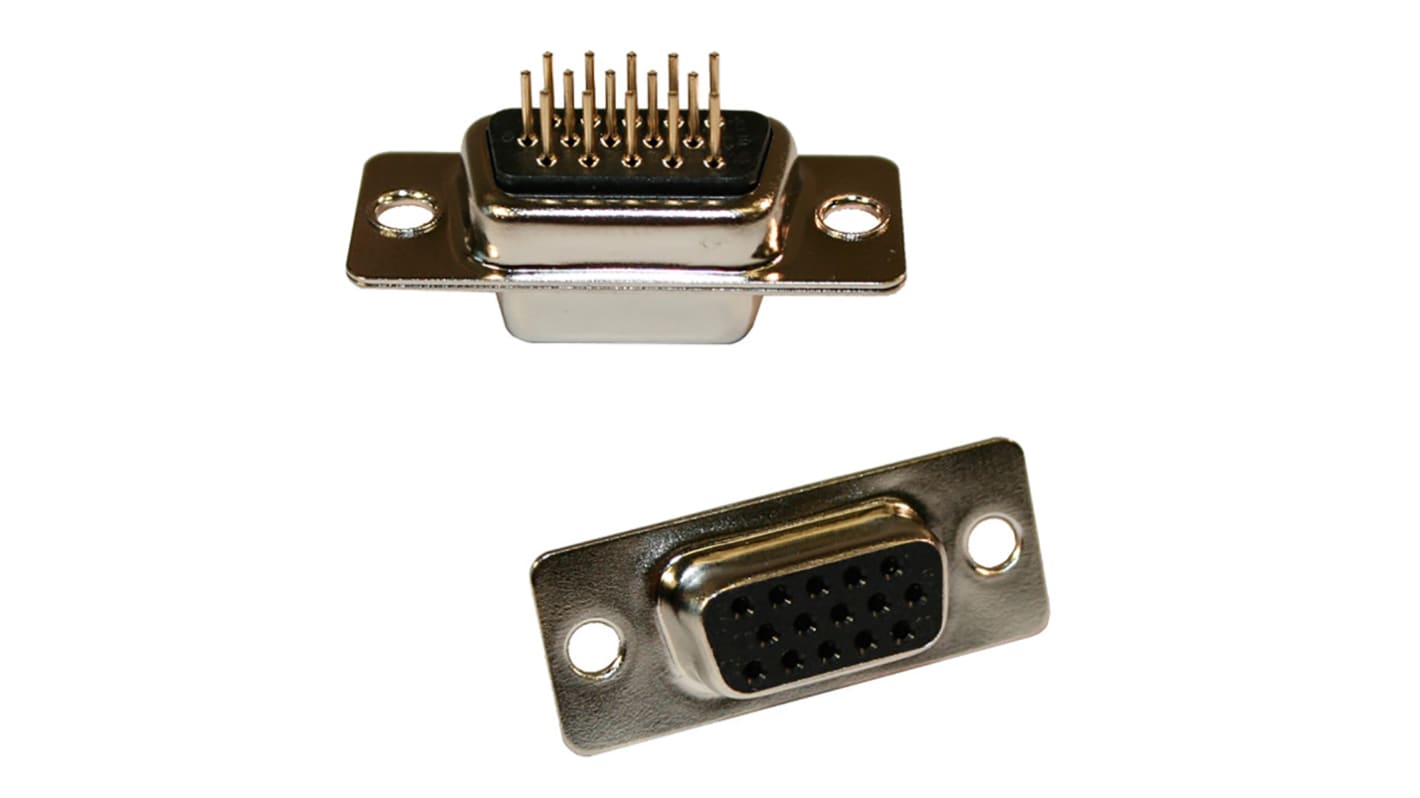

Norcomp 180 15 Way Through Hole D-sub Connector Plug, 2.29mm Pitch, with 4-40 Spacer/Board Lock
- RS Stock No.:
- 174-8504
- Mfr. Part No.:
- 180-015-113R911
- Brand:
- Norcomp
Subtotal (1 tray of 80 units)*
£198.24
(exc. VAT)
£237.92
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 80 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 80 + | £2.478 | £198.24 |
*price indicative
- RS Stock No.:
- 174-8504
- Mfr. Part No.:
- 180-015-113R911
- Brand:
- Norcomp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norcomp | |
| Number of Contacts | 15 | |
| Gender | Male | |
| Body Orientation | Straight | |
| Mounting Type | Through Hole | |
| Pitch | 2.29mm | |
| D Connector Type | High Density D-Sub | |
| Termination Method | Solder | |
| Mounting Hardware | 4-40 Spacer/Board Lock | |
| Current Rating | 3A | |
| Housing Material | Steel | |
| Voltage Rating | 500.0 V | |
| Length | 30.8mm | |
| Width | 12.6mm | |
| Depth | 12.5mm | |
| Contact Plating | Gold Flash | |
| Contact Material | Brass | |
| Series | 180 | |
| Dimensions | 30.8 x 12.6 x 12.5mm | |
| Maximum Operating Temperature | +100°C | |
| Series Number | 180 | |
| Minimum Operating Temperature | -50.0°C | |
Select all | ||
|---|---|---|
Brand Norcomp | ||
Number of Contacts 15 | ||
Gender Male | ||
Body Orientation Straight | ||
Mounting Type Through Hole | ||
Pitch 2.29mm | ||
D Connector Type High Density D-Sub | ||
Termination Method Solder | ||
Mounting Hardware 4-40 Spacer/Board Lock | ||
Current Rating 3A | ||
Housing Material Steel | ||
Voltage Rating 500.0 V | ||
Length 30.8mm | ||
Width 12.6mm | ||
Depth 12.5mm | ||
Contact Plating Gold Flash | ||
Contact Material Brass | ||
Series 180 | ||
Dimensions 30.8 x 12.6 x 12.5mm | ||
Maximum Operating Temperature +100°C | ||
Series Number 180 | ||
Minimum Operating Temperature -50.0°C | ||
- COO (Country of Origin):
- TW
Dip Solder d-subs in 5 industry sizes/positions
High Density (15 pin, 26 pin, 44 pin, 62 pin, 78 pin).
Approximately 65% higher density than standard D-Sub connectors.
Low cost / high performance stamped contacts.
Metal shell provides EMI/RFI shielding.
Plug shells have indents to provide grounding and additional retention.
Connectors will fit in standard d-sub backshells.
Shell: Steel, Nickel Plated
Insulator: Glass-filled thermoplastic, (260°C process temp)
Contacts: Brass, Gold Flash Plated (Entire Contact)
High Density (15 pin, 26 pin, 44 pin, 62 pin, 78 pin).
Approximately 65% higher density than standard D-Sub connectors.
Low cost / high performance stamped contacts.
Metal shell provides EMI/RFI shielding.
Plug shells have indents to provide grounding and additional retention.
Connectors will fit in standard d-sub backshells.
Shell: Steel, Nickel Plated
Insulator: Glass-filled thermoplastic, (260°C process temp)
Contacts: Brass, Gold Flash Plated (Entire Contact)
