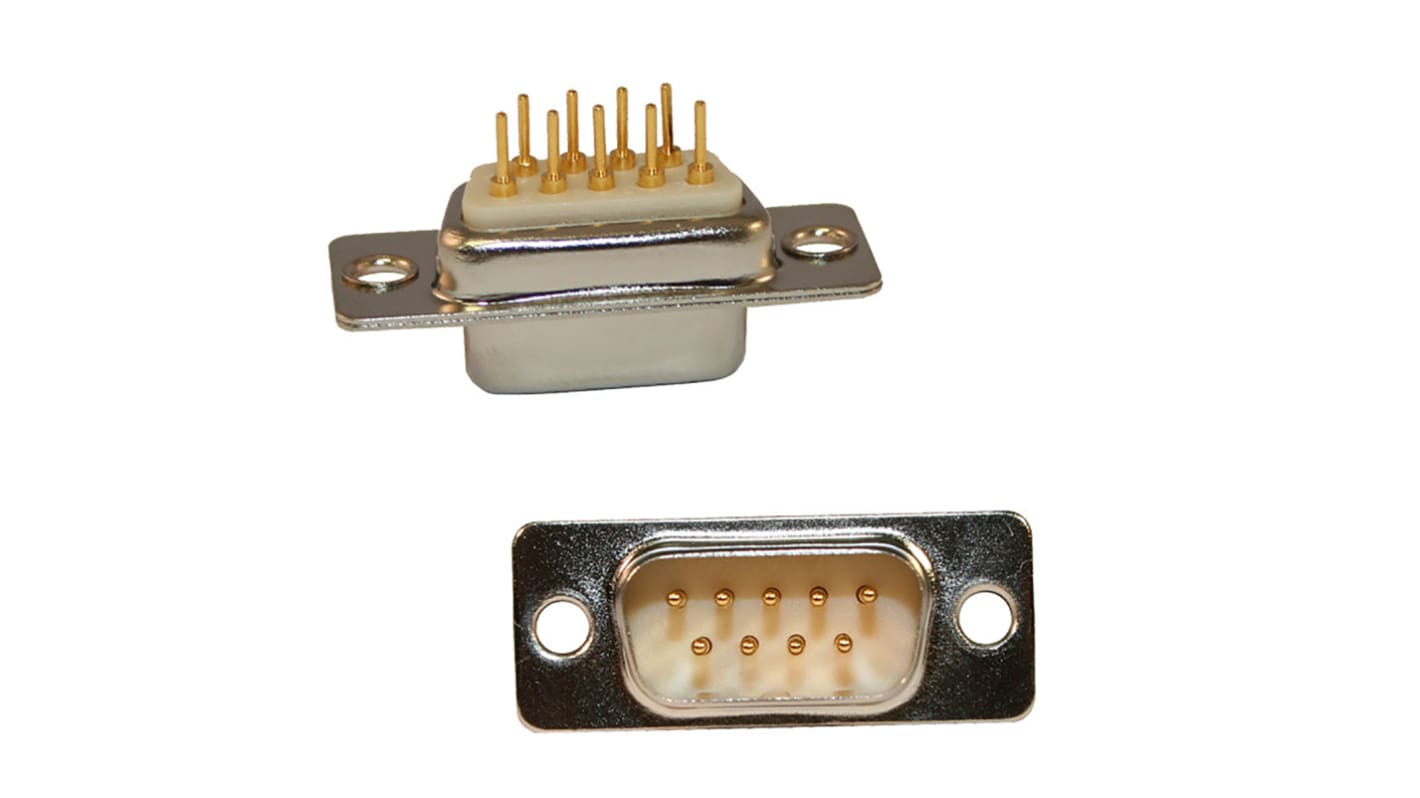

Norcomp 172 9 Way Through Hole D-sub Connector Socket, 2.54mm Pitch, with 4-40 Spacer/Board Lock
- RS Stock No.:
- 174-8462
- Mfr. Part No.:
- 172-E09-213R911
- Brand:
- Norcomp
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 174-8462
- Mfr. Part No.:
- 172-E09-213R911
- Brand:
- Norcomp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norcomp | |
| Number of Contacts | 9 | |
| Gender | Female | |
| Body Orientation | Straight | |
| Mounting Type | Through Hole | |
| Pitch | 2.54mm | |
| D Connector Type | Standard D-Sub | |
| D-Sub Shell Size | D | |
| Mounting Hardware | 4-40 Spacer/Board Lock | |
| Termination Method | Solder | |
| Current Rating | 5.0A | |
| Housing Material | Steel | |
| Voltage Rating | 500.0 V | |
| Length | 30.734mm | |
| Width | 12.446mm | |
| Depth | 12.446mm | |
| Contact Material | Brass | |
| Dimensions | 30.734 x 12.446 x 12.446mm | |
| Series | 172 | |
| Contact Plating | Gold Flash | |
| Minimum Operating Temperature | -50.0°C | |
| Series Number | 172 | |
| Maximum Operating Temperature | +100°C | |
Select all | ||
|---|---|---|
Brand Norcomp | ||
Number of Contacts 9 | ||
Gender Female | ||
Body Orientation Straight | ||
Mounting Type Through Hole | ||
Pitch 2.54mm | ||
D Connector Type Standard D-Sub | ||
D-Sub Shell Size D | ||
Mounting Hardware 4-40 Spacer/Board Lock | ||
Termination Method Solder | ||
Current Rating 5.0A | ||
Housing Material Steel | ||
Voltage Rating 500.0 V | ||
Length 30.734mm | ||
Width 12.446mm | ||
Depth 12.446mm | ||
Contact Material Brass | ||
Dimensions 30.734 x 12.446 x 12.446mm | ||
Series 172 | ||
Contact Plating Gold Flash | ||
Minimum Operating Temperature -50.0°C | ||
Series Number 172 | ||
Maximum Operating Temperature +100°C | ||
- COO (Country of Origin):
- TW
Dip solder d-subs available in 5 industry sizes/positions
Standard Density (9 pin, 15 pin, 25 pin, 37 pin, 50 pin).
Nickel shells available only. Low cost economy series.
Male shells have indents to provide grounding and additional retention.
Screw machined contacts offer high reliability. Non-removable contacts.
Optional mounting hardware available
Shell: Steel, Nickel plated
Insulator: Glass-filled thermoplastic. (260°C process temp)
Machined contacts: Male pins - Brass | Female pins - Brass
Plating: Gold flash on entire contact
Standard Density (9 pin, 15 pin, 25 pin, 37 pin, 50 pin).
Nickel shells available only. Low cost economy series.
Male shells have indents to provide grounding and additional retention.
Screw machined contacts offer high reliability. Non-removable contacts.
Optional mounting hardware available
Shell: Steel, Nickel plated
Insulator: Glass-filled thermoplastic. (260°C process temp)
Machined contacts: Male pins - Brass | Female pins - Brass
Plating: Gold flash on entire contact
