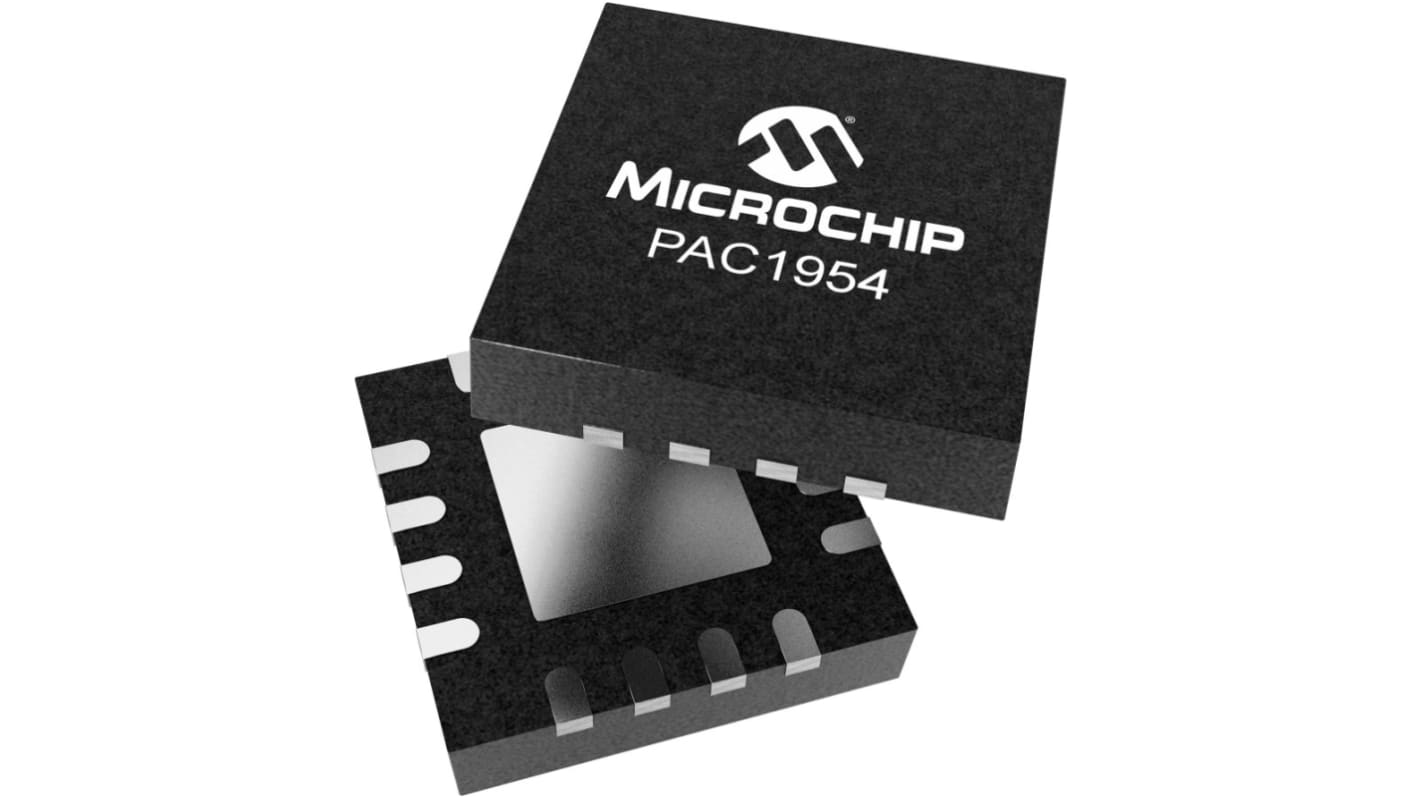

Microchip PAC1954T-E/4MX, High Side Current Monitor 16-Pin, VQFN
- RS Stock No.:
- 247-8747
- Mfr. Part No.:
- PAC1954T-E/4MX
- Brand:
- Microchip
Discontinued
- RS Stock No.:
- 247-8747
- Mfr. Part No.:
- PAC1954T-E/4MX
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Package Type | VQFN | |
| Pin Count | 16 | |
| Mounting Type | Surface Mount | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Package Type VQFN | ||
Pin Count 16 | ||
Mounting Type Surface Mount | ||
The Microchip PAC195X products are one, two, three and four-channel energy monitors, with bus voltage monitors and current sense amplifiers that feed high-resolution ADCs. The PAC195X-1 devices are for high-side current sensing. They are used in applications like Embedded computing, Networking, FPGA systems, low-voltage/high-power - AI, GPU, Industrial, Linux applications, notebook and tablet computing, cloud, Linux and server computing and optical networking modules. The device supported by computing platforms like Windows 10 driver, Arduino Library, Python script and MCC library.
High-side or low-side current monitor with one, two, three or four channels
100 mV Full-Scale Range (FSR) for current sense voltage
Programmable FSR from -50 mv to +50 mv
16-bit resolution for current measurements and external sense resistor sets the full-scale current range
Very low input current simplifies routing
100 mV Full-Scale Range (FSR) for current sense voltage
Programmable FSR from -50 mv to +50 mv
16-bit resolution for current measurements and external sense resistor sets the full-scale current range
Very low input current simplifies routing
