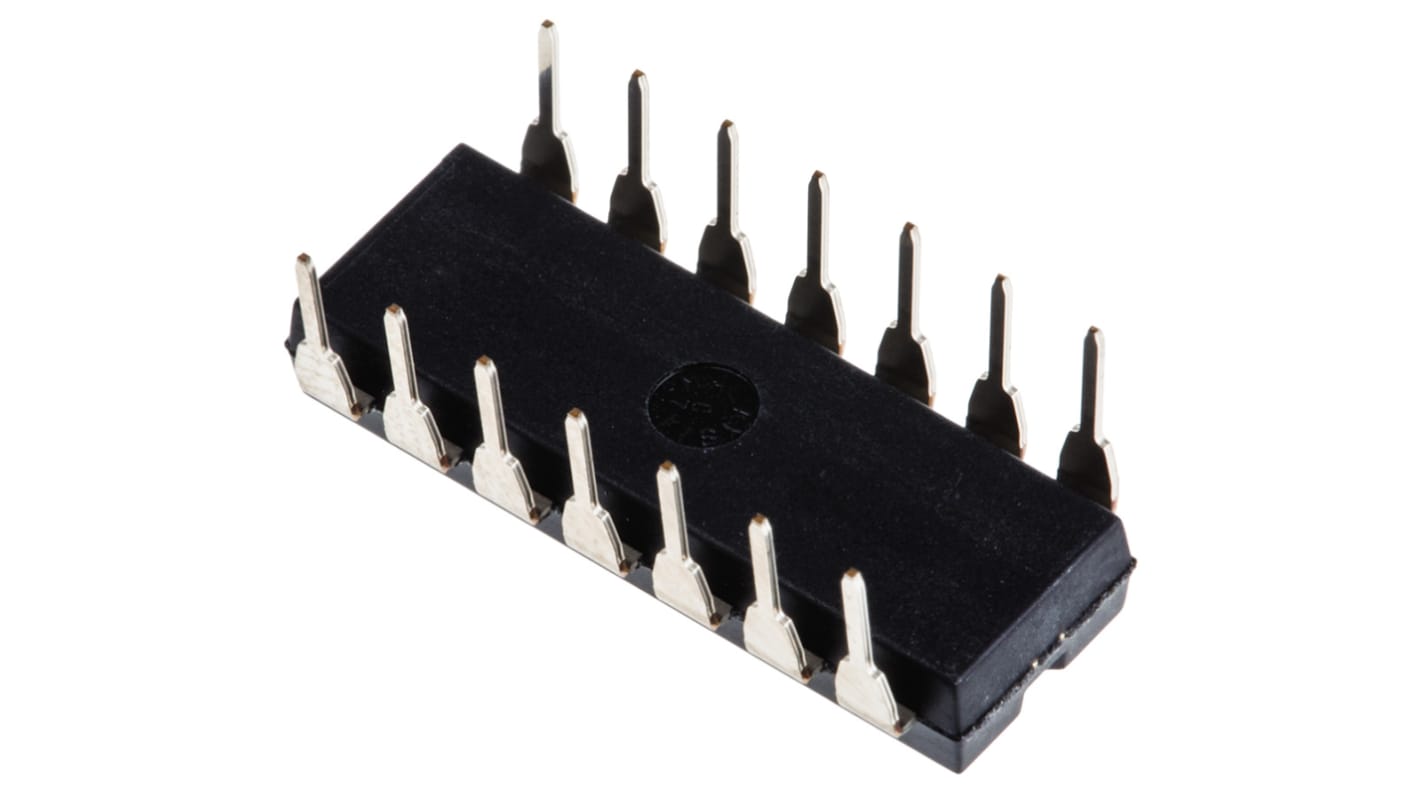

XTR105PA Texas Instruments, 4 → 20 mA Current Loop Transmitter 14-Pin PDIP
- RS Stock No.:
- 252-1650P
- Mfr. Part No.:
- XTR105PA
- Brand:
- Texas Instruments
Discontinued
- RS Stock No.:
- 252-1650P
- Mfr. Part No.:
- XTR105PA
- Brand:
- Texas Instruments
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Output Current | 4 → 20 mA | |
| Mounting Type | Through Hole | |
| Package Type | PDIP | |
| Pin Count | 14 | |
| Dimensions | 19.3 x 6.35 x 4.57mm | |
| Height | 4.57mm | |
| Length | 19.3mm | |
| Maximum Loop Supply Voltage | 36V | |
| Width | 6.35mm | |
| Maximum Operating Supply Voltage | 36 V | |
| Minimum Operating Temperature | -40 °C | |
| Priced to Clear | Yes | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Loop Supply Voltage | 7.5V | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Output Current 4 → 20 mA | ||
Mounting Type Through Hole | ||
Package Type PDIP | ||
Pin Count 14 | ||
Dimensions 19.3 x 6.35 x 4.57mm | ||
Height 4.57mm | ||
Length 19.3mm | ||
Maximum Loop Supply Voltage 36V | ||
Width 6.35mm | ||
Maximum Operating Supply Voltage 36 V | ||
Minimum Operating Temperature -40 °C | ||
Priced to Clear Yes | ||
Maximum Operating Temperature +85 °C | ||
Minimum Loop Supply Voltage 7.5V | ||
4mA-to-20mA Current-Loop, Texas Instruments
4mA-to-20mA Current-Loop Communication
Current loop systems are used in electrically noisy industrial environments for sending analogue sensor data over long distances of 300m or more.
