Knipex, 97 Crimping Die Set, Terminal
- RS Stock No.:
- 667-7710
- Mfr. Part No.:
- 97 49 16 RS
- Brand:
- Knipex
Subtotal (1 unit)*
£57.74
(exc. VAT)
£69.29
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £57.74 |
*price indicative
- RS Stock No.:
- 667-7710
- Mfr. Part No.:
- 97 49 16 RS
- Brand:
- Knipex
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Knipex | |
| Crimp Connector Type | Terminal | |
| Minimum Wire Size mm² | 10mm² | |
| Maximum Wire Size mm² | 16mm² | |
| Minimum Wire Size AWG | 8AWG | |
| Maximum Wire Size AWG | 6AWG | |
| Terminal Insulation | Insulated | |
| Number of Ports | 2 | |
| For Use With | Universal crimping plier - 97 43 200 | |
| Series | 97 | |
Select all | ||
|---|---|---|
Brand Knipex | ||
Crimp Connector Type Terminal | ||
Minimum Wire Size mm² 10mm² | ||
Maximum Wire Size mm² 16mm² | ||
Minimum Wire Size AWG 8AWG | ||
Maximum Wire Size AWG 6AWG | ||
Terminal Insulation Insulated | ||
Number of Ports 2 | ||
For Use With Universal crimping plier - 97 43 200 | ||
Series 97 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE

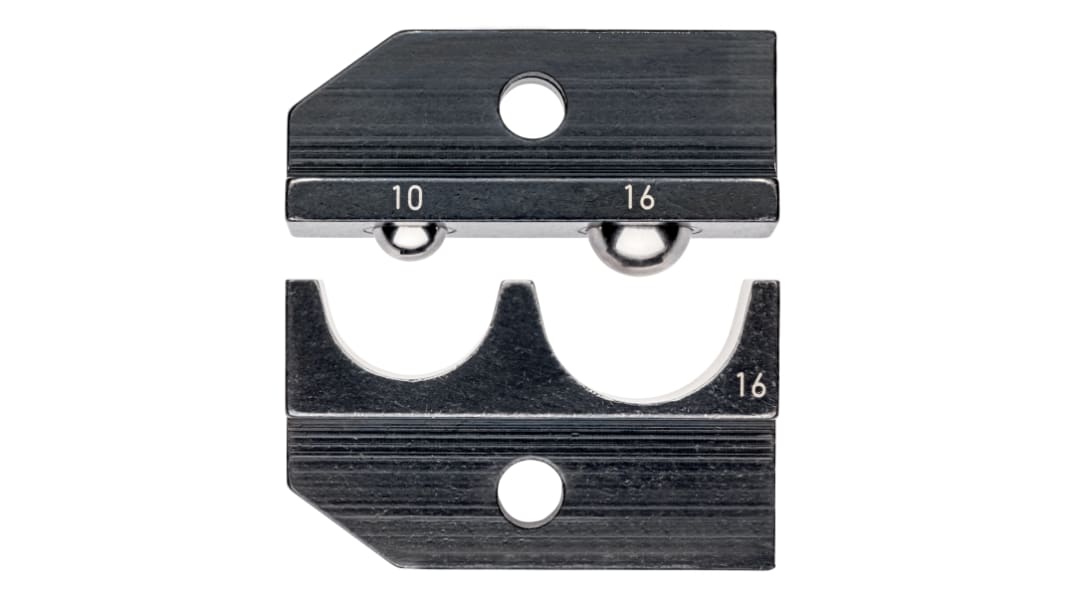

Crimp Die Set 97 49 16
For insulated cable lugs and connectors, 10 → 16 mm²
AWG 7 / 5
Weight 46 g
For use with crimp system tool 97 43 200 (stock no. 336-8084)
AWG 7 / 5
Weight 46 g
For use with crimp system tool 97 43 200 (stock no. 336-8084)
Crimp die set 97 49 16
Knipex universal crimping die 97 43 200 / RS 336-8084
For 10 / 16mm² insulated lugs and connectors - AWG 7 / 5.
Dies are machined and engraved with the cable section
The dies are fixed with a screw.
The dies are fixed with a screw.
Can be used with the Knipex 97 43 200 / RS 336-8084 universal crimping tool, which offers the following advantages :
"Can be used with the Knipex 97 43 200 / RS 336-8084 universal crimping tool, which offers the following advantages
Interchangeable crimping dies
One tool for almost 1,000 different crimps
Virtually parallel crimping mechanism
Consistently high crimping quality thanks to precision dies and forced locking mechanism (can be unlocked)
Crimping pressure is precisely set at the factory (calibrated), adjustable
Increased force due to lever transmission for less tiring work
Interchangeable crimping dies
One tool for almost 1,000 different crimps
Virtually parallel crimping mechanism
Consistently high crimping quality thanks to precision dies and forced locking mechanism (can be unlocked)
Crimping pressure is precisely set at the factory (calibrated), adjustable
Increased force due to lever transmission for less tiring work
Features and benefits :
Parallel crimping
Precision machining to obtain a precise crimp that meets the manufacturer's technical specifications
Over 1000 interchangeable dies.
Precision machining to obtain a precise crimp that meets the manufacturer's technical specifications
Over 1000 interchangeable dies.
Weight: about 40g
Special quality oil-hardened vanadium chrome electric steel
Maintenance tips :
Product maintenance
*Use a light non-mineral oil.
Importance of high quality crimping
When a crimping tool is used on a terminal, two crimps take place at the same time. One is the electrical connection between the conductor and the terminal. The other is the crimping of the insulation, which relieves vibration and stress. It is important that the electrical connection is gas-tight with no voids between the wire strands and the lug. If there are voids, corrosion can occur, causing resistance and excessive heat that damages the electrical connection. Using a good quality crimping tool will ensure a complete gas tight crimp, preventing future deterioration of the electrical connection and insulation failure
