Molex Male CLIK-Mate to Unterminated Crimped Wire, 150mm, 26AWG, Black
- RS Stock No.:
- 204-5315
- Mfr. Part No.:
- 215711-1112
- Brand:
- Molex
Available to back order for despatch 29/10/2024
Added
Price Each (In a Bag of 50)
£0.844
(exc. VAT)
£1.013
(inc. VAT)
| Units | Per unit | Per Bag* |
| 50 - 200 | £0.844 | £42.20 |
| 250 - 450 | £0.766 | £38.30 |
| 500 + | £0.735 | £36.75 |
| *price indicative | ||
- RS Stock No.:
- 204-5315
- Mfr. Part No.:
- 215711-1112
- Brand:
- Molex
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IN
Product Details

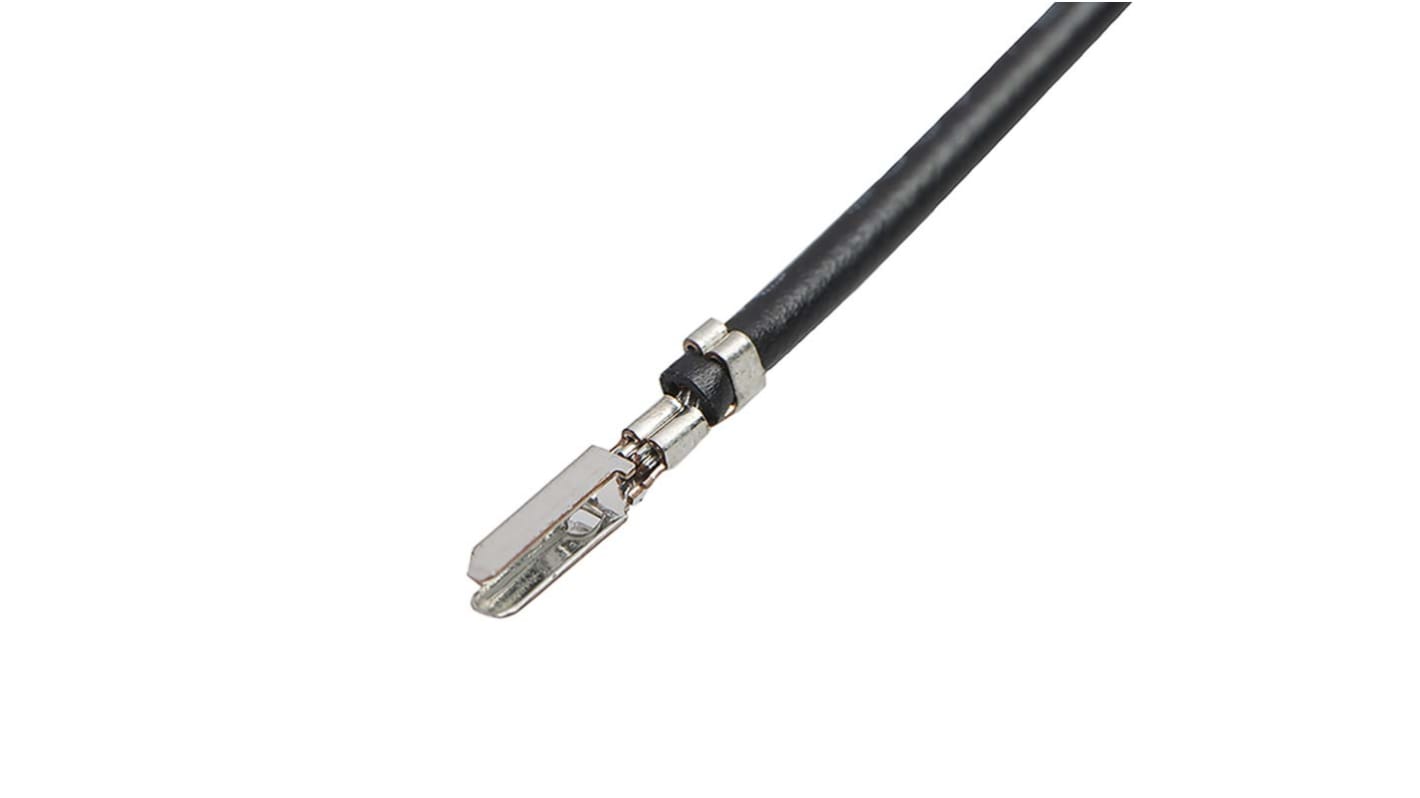

The Molex 215711 series pre-crimped lead male to pigtail wire with 150 mm length.
Current - Maximum per Contact 2.0A
Voltage - Maximum 100V AC (RMS)/DC
Plating min - Mating 0.406μm
Plating min - Termination 0.406μm
Material - Metal Copper Alloy
Material - Plating Termination Tin
Wire Insulation Diameter 0.78-1.28mm
Voltage - Maximum 100V AC (RMS)/DC
Plating min - Mating 0.406μm
Plating min - Termination 0.406μm
Material - Metal Copper Alloy
Material - Plating Termination Tin
Wire Insulation Diameter 0.78-1.28mm
Specifications
Attribute | Value |
|---|---|
| Crimp Terminal 1 | CLIK-Mate |
| Series | CLIK-Mate |
| Crimp Terminal 2 | Unterminated |
| Crimp Terminal 1 Gender | Male |
| Wire Size | 26AWG |
| Cable Length | 150mm |
| Contact Plating | Tin |
| Sheath Colour | Black |
| Series Number | 215711 |
| Current Rating | 2 A |
| Wire Style | UL 10002 |
