RS PRO Hand Crimp Tool for Wire End Sleeves, 0.32 → 0.20mm² Wire
- RS Stock No.:
- 210-5012
- Distrelec Article No.:
- 304-02-919
- Brand:
- RS PRO
Subtotal (1 unit)*
£65.50
(exc. VAT)
£78.60
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 24 unit(s) ready to ship
- Plus 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £65.50 |
*price indicative
- RS Stock No.:
- 210-5012
- Distrelec Article No.:
- 304-02-919
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Wire Size AWG | 28 → 24AWG | |
Wire Size mm² | 0.32 → 0.20mm² | |
Product Type | Crimp Tool | |
For Use With | Wire End Sleeves | |
Operation | Hand | |
Ratcheting | No | |
Height Safe | No | |
Overall Length | 200 mm | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Wire Size AWG 28 → 24AWG | ||
Wire Size mm² 0.32 → 0.20mm² | ||
Product Type Crimp Tool | ||
For Use With Wire End Sleeves | ||
Operation Hand | ||
Ratcheting No | ||
Height Safe No | ||
Overall Length 200 mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- GB

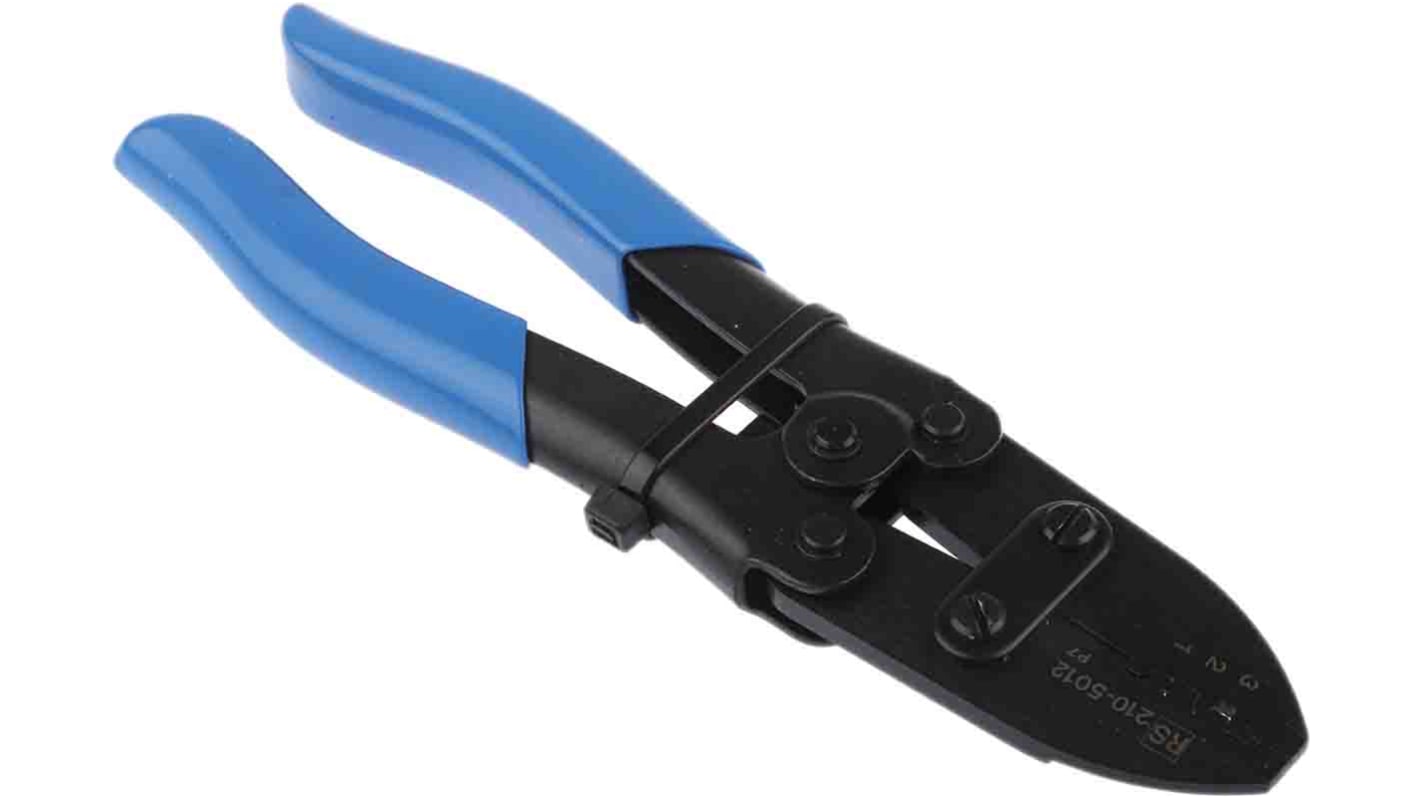

RS PRO Plier Action Crimp Tool
RS PRO crimp tool, designed for crimping crimp contacts. This professional tool offers wire range size of 24 AWG to 28 AWG with clear identifying marks on the head of the tool. A plier shape design and superb comfort in both hands deliver the perfect crimp every time.
Features and Benefits:
• Supports a wire size of 24 AWG to 28 AWG
• Suitable for crimping bootlace ferrules
• Ensures integrity the connector termination
• The indents are clearly marked with the different wire size ranges
Typical Applications
Crimping tools can be used for a variety of applications:-
• Maintenance & repair
• Electrical Installations
• Computer Interfacing
• Cable assemblies
FAQ:
How easy are they to use?
They are very easy to use, choose the male or female pin for application, insert the wire into the pin then open the crimp tool, insert into the hole of the indent crimper and squeeze until the cycle finishes.
How do you maintain the product?
• Movable parts should be regularly lubricated.
• Lubrication* is recommended at least every 10,000 cycles whenever the tool is exposed to contaminants.
*Use a light mineral-free oil
The Importance of a High-Quality Crimp
When a crimping tool is used on a terminal, two crimps take place at the same time. One is the electrical connection between the conductor and terminal. The other is the insulation crimp which provides strain relief against vibration and tension. It is important that the electrical connection is gas-tight without any voids between the wire strands and the terminal. If there any voids present, then corrosion can occur causing resistance and excessive heat which damages the electrical connection. Using a good quality crimping tool will ensure that a full, gas-tight crimp is produced preventing future deterioration of the electrical connection and insulation breakage.
Features and Benefits:
• Supports a wire size of 24 AWG to 28 AWG
• Suitable for crimping bootlace ferrules
• Ensures integrity the connector termination
• The indents are clearly marked with the different wire size ranges
Typical Applications
Crimping tools can be used for a variety of applications:-
• Maintenance & repair
• Electrical Installations
• Computer Interfacing
• Cable assemblies
FAQ:
How easy are they to use?
They are very easy to use, choose the male or female pin for application, insert the wire into the pin then open the crimp tool, insert into the hole of the indent crimper and squeeze until the cycle finishes.
How do you maintain the product?
• Movable parts should be regularly lubricated.
• Lubrication* is recommended at least every 10,000 cycles whenever the tool is exposed to contaminants.
*Use a light mineral-free oil
The Importance of a High-Quality Crimp
When a crimping tool is used on a terminal, two crimps take place at the same time. One is the electrical connection between the conductor and terminal. The other is the insulation crimp which provides strain relief against vibration and tension. It is important that the electrical connection is gas-tight without any voids between the wire strands and the terminal. If there any voids present, then corrosion can occur causing resistance and excessive heat which damages the electrical connection. Using a good quality crimping tool will ensure that a full, gas-tight crimp is produced preventing future deterioration of the electrical connection and insulation breakage.
