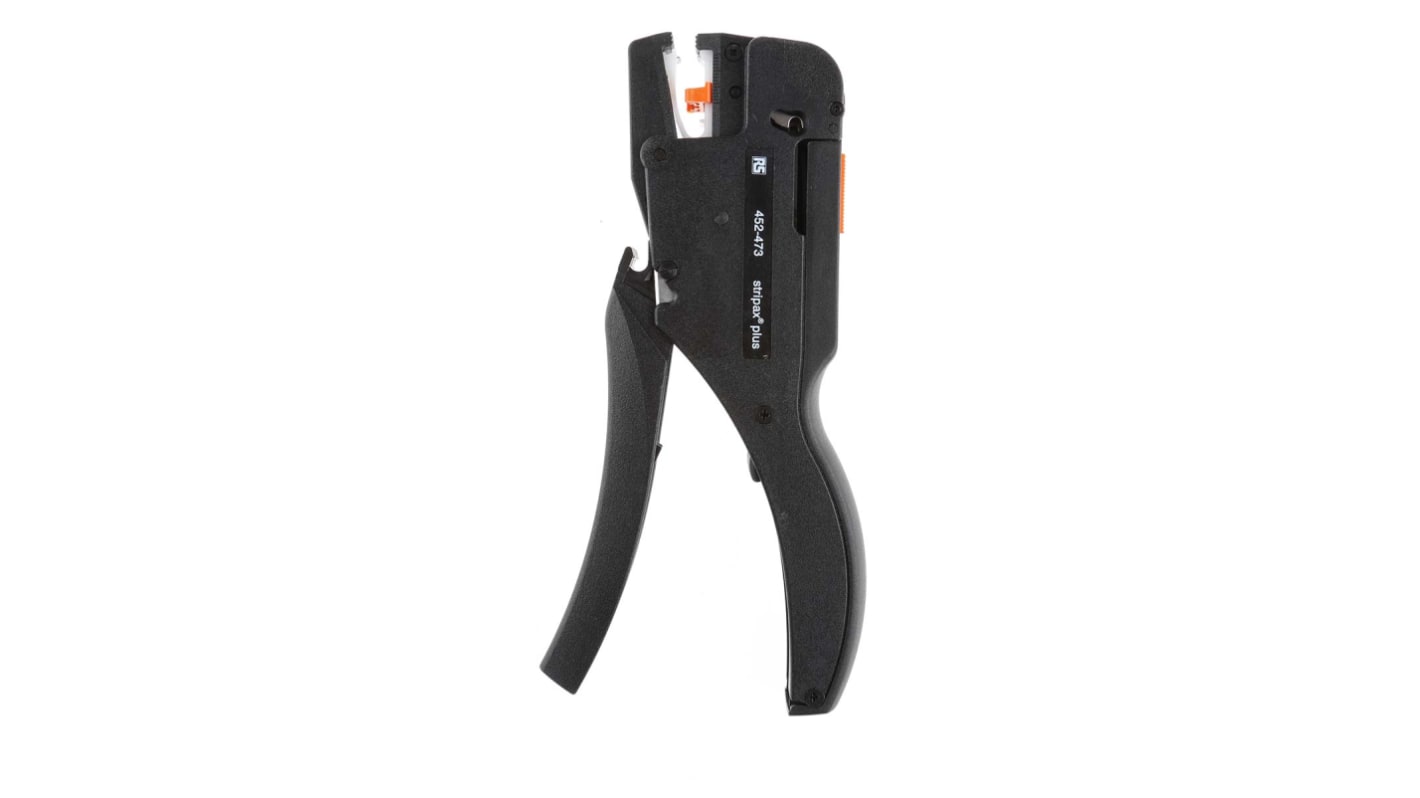

Weidmuller, Stripax Plus Ratchet Crimping Tool for Bootlace Ferrule

  • RS Stock No. 452-473
  • Mfr. Part No. 9021920000
  • Brand Weidmuller
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): DE
Product Details

Bootlace Ferrule Strips

Ferrules available in the French colour code range in sizes 0·5 to 2·5mm².,Each pack of ferrules contain 10 strips of 50, which can be rapidly terminated with a special tool, with automatic feed action enables cables to be cut, stripped and terminated. The automatic ferrule feed action allows efficient cable preparation and considerable time saving. The tool (which must be ordered separately) is moulded in glass filled polyamide and is lightweight in use.

The multifunction Stripax® Plus tool (Stock no. 452-473)

Note

Tool Length 210mm, Weight 260g

Weidmuller Stripax Plus is a professional multi-function tool designed for most demanding customers. It has been designed with a quality and durability in mind from the best materials to ensure long life operation.
The Stripax Plus allows for cutting, stripping and crimping of wires and cable ferrules. It features an automatic feed function for efficient cable preparation for manual wiring applications and ferrule crimping.

Features and Benefits:
• An efficient and multifunctional tool allowing for cutting, stripping and crimping
• Versatile tool for efficient wires and cable ferrules preparation over the complete cross-section range of 0.5 to 2.5 mm²
• Easy ferrule handling, contained inside tool in strip form with automatic feed function
• Integrated ratchet mechanism guarantees precise crimping
• Release option in the event of incorrect operation
• Compact size: only 210mm long
• Weight: 260g

Typical Applications:
• Maintenance & repair
• Electrical Installations
• Cable assemblies

FAQ’s:
What is the difference between un-insulated and insulated crimp tools?
Un-insulated crimp tools are typically used for general applications, whereas the insulated crimp tools have been VDE tested up to 1000 V, designed for use where electrical current is present.

How do you maintain the product?
• Axles and other movable parts should be regularly lubricated.
• Lubrication* is recommended at least every 10,000 cycles whenever the tool is exposed to contaminants.
• Adjustment of the crimping die nests should also be checked. Readjustment of the pressure adjustment axle is necessary when the pre-load of the tool decreases significantly.

The Importance of a High-Quality Crimp
When a crimping tool is used on a terminal, two crimps take place at the same time. One is the electrical connection between the conductor and terminal. The other is the insulation crimp which provides strain relief against vibration and tension. It is important that the electrical connection is gas-tight without any voids between the wire strands and the terminal. If there any voids present, then corrosion can occur causing resistance and excessive heat which damages the electrical connection. Using a good quality crimping tool will ensure that a full, gas-tight crimp is produced preventing future deterioration of the electrical connection and insulation breakage.

Approvals

-

Specifications
Attribute Value
Series Stripax Plus
Crimp Tool Type Ratchet
Crimp Connector Type Bootlace Ferrule
20 In stock for FREE next working day delivery
Price Each
£ 159.75
(exc. VAT)
£ 191.70
(inc. VAT)
Units
Per unit
1 +
£159.75
