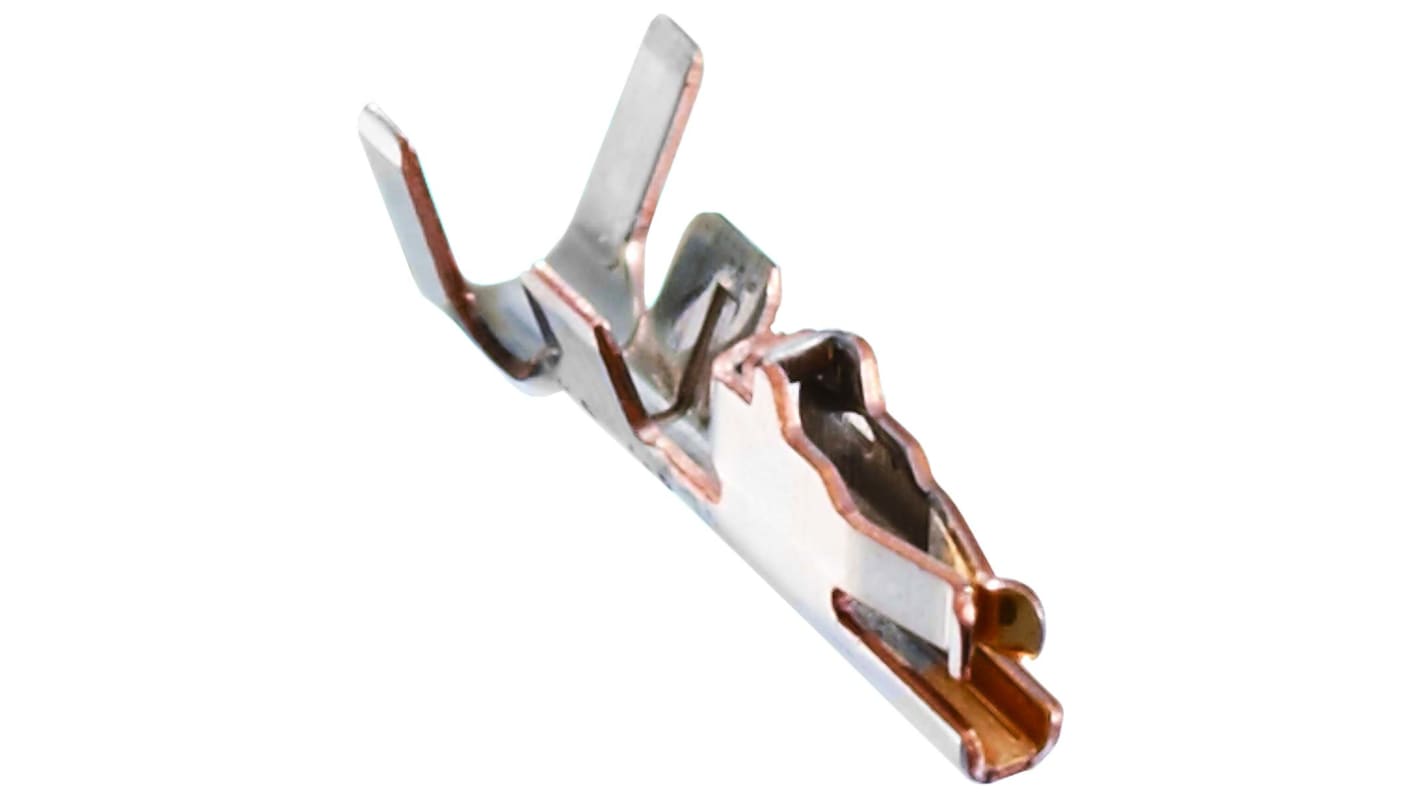

Hirose DF50 Series Female Crimp Terminal, 30AWG Min, 28AWG Max
- RS Stock No.:
- 873-5215
- Mfr. Part No.:
- DF50-2830SCFA
- Brand:
- Hirose
Bulk discount available
Subtotal (1 pack of 100 units)*
£3.40
(exc. VAT)
£4.10
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 500 unit(s) shipping from 17 November 2025
- Plus 30,200 unit(s) shipping from 24 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 - 400 | £0.034 | £3.40 |
| 500 - 900 | £0.029 | £2.90 |
| 1000 - 4900 | £0.025 | £2.50 |
| 5000 - 9900 | £0.02 | £2.00 |
| 10000 + | £0.017 | £1.70 |
*price indicative
- RS Stock No.:
- 873-5215
- Mfr. Part No.:
- DF50-2830SCFA
- Brand:
- Hirose
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hirose | |
| Gender | Female | |
| For Use With | DF50 Connector Housing | |
| Series | DF50 | |
| Maximum Wire Size mm² | 0.08mm² | |
| Termination Method | Crimp | |
| Minimum Wire Size AWG | 30AWG | |
| Contact Plating | Gold | |
| Maximum Wire Size AWG | 28AWG | |
| Contact Material | Phosphor Bronze | |
| Maximum Contact Resistance | 30mΩ | |
| Maximum Current | 1A | |
| Minimum Operating Temperature | -35°C | |
| Maximum Operating Temperature | +85°C | |
| Select all | ||
|---|---|---|
Brand Hirose | ||
Gender Female | ||
For Use With DF50 Connector Housing | ||
Series DF50 | ||
Maximum Wire Size mm² 0.08mm² | ||
Termination Method Crimp | ||
Minimum Wire Size AWG 30AWG | ||
Contact Plating Gold | ||
Maximum Wire Size AWG 28AWG | ||
Contact Material Phosphor Bronze | ||
Maximum Contact Resistance 30mΩ | ||
Maximum Current 1A | ||
Minimum Operating Temperature -35°C | ||
Maximum Operating Temperature +85°C | ||
- COO (Country of Origin):
- JP
Hirose 1.0mm DF50 Series Crimp Contacts
1.0mm Wire to Board - Hirose DF50 Series
