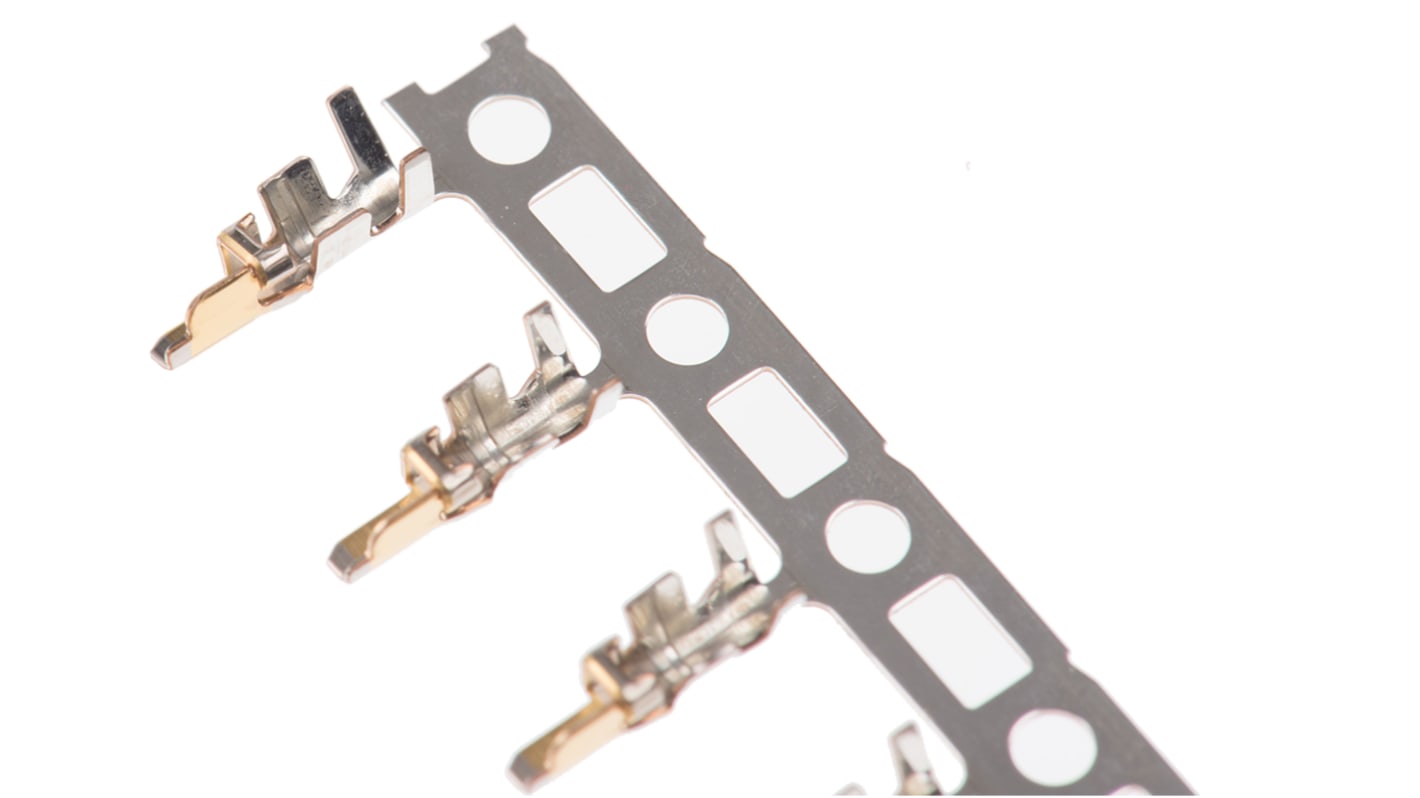

Hirose DF59 Series Male Crimp Terminal, 22AWG Max
- RS Stock No.:
- 738-8782
- Mfr. Part No.:
- DF59-22PCFA
- Brand:
- Hirose
Bulk discount available
Subtotal (1 pack of 10 units)*
£1.05
(exc. VAT)
£1.26
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 240 | £0.105 | £1.05 |
| 250 - 990 | £0.089 | £0.89 |
| 1000 - 4990 | £0.087 | £0.87 |
| 5000 - 9990 | £0.084 | £0.84 |
| 10000 + | £0.082 | £0.82 |
*price indicative
- RS Stock No.:
- 738-8782
- Mfr. Part No.:
- DF59-22PCFA
- Brand:
- Hirose
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hirose | |
| Gender | Male | |
| For Use With | DF59 Connector Housing | |
| Series | DF59 | |
| Termination Method | Crimp | |
| Maximum Wire Size mm² | 0.3mm² | |
| Contact Plating | Gold | |
| Contact Material | Copper Alloy | |
| Maximum Wire Size AWG | 22AWG | |
| Maximum Contact Resistance | 30mΩ | |
| Minimum Operating Temperature | -35°C | |
| Maximum Current | 3A | |
| Maximum Operating Temperature | +105°C | |
| Select all | ||
|---|---|---|
Brand Hirose | ||
Gender Male | ||
For Use With DF59 Connector Housing | ||
Series DF59 | ||
Termination Method Crimp | ||
Maximum Wire Size mm² 0.3mm² | ||
Contact Plating Gold | ||
Contact Material Copper Alloy | ||
Maximum Wire Size AWG 22AWG | ||
Maximum Contact Resistance 30mΩ | ||
Minimum Operating Temperature -35°C | ||
Maximum Current 3A | ||
Maximum Operating Temperature +105°C | ||
- COO (Country of Origin):
- JP
Hirose DF59 Crimp Contacts
Crimp contact for the Hirose DF59 series.
Hirose DF59 Series
The Hirose DF59 series features a low profile design that minimises shadowing and a positive swing-lock engagement, which provides strong plug retention against cable pull. Additionally, the Hirose DF59 series offers a floating board-to-board connector which allows ± 0.5mm floating function in XYZ directions, reducing contact stress. With the Hirose DF59 series, multiple board-to-board connections are possible, minimizing the issue of thermal expansion and reducing component quantity. Applications include LED lighting, power supplies, battery connection and small DC motor drives.
