Molex Mini-Latch Series Female Crimp Terminal, 28AWG Min, 22AWG Max
- RS Stock No.:
- 720-6113
- Mfr. Part No.:
- 50802-9001
- Brand:
- Molex
Bulk discount available
Subtotal (1 pack of 100 units)*
£7.70
(exc. VAT)
£9.20
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 9,700 unit(s) ready to ship
- Plus 900 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 - 900 | £0.077 | £7.70 |
| 1000 - 2900 | £0.073 | £7.30 |
| 3000 - 7400 | £0.07 | £7.00 |
| 7500 + | £0.066 | £6.60 |
*price indicative
- RS Stock No.:
- 720-6113
- Mfr. Part No.:
- 50802-9001
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Gender | Female | |
| For Use With | Mini-Latch Connector Housing | |
| Series | Mini-Latch | |
| Minimum Wire Size mm² | 0.08mm² | |
| Termination Method | Crimp | |
| Maximum Wire Size mm² | 0.3mm² | |
| Minimum Wire Size AWG | 28AWG | |
| Contact Plating | Tin | |
| Maximum Wire Size AWG | 22AWG | |
| Contact Material | Brass | |
| Series Number | 50802 | |
Select all | ||
|---|---|---|
Brand Molex | ||
Gender Female | ||
For Use With Mini-Latch Connector Housing | ||
Series Mini-Latch | ||
Minimum Wire Size mm² 0.08mm² | ||
Termination Method Crimp | ||
Maximum Wire Size mm² 0.3mm² | ||
Minimum Wire Size AWG 28AWG | ||
Contact Plating Tin | ||
Maximum Wire Size AWG 22AWG | ||
Contact Material Brass | ||
Series Number 50802 | ||
- COO (Country of Origin):
- JP

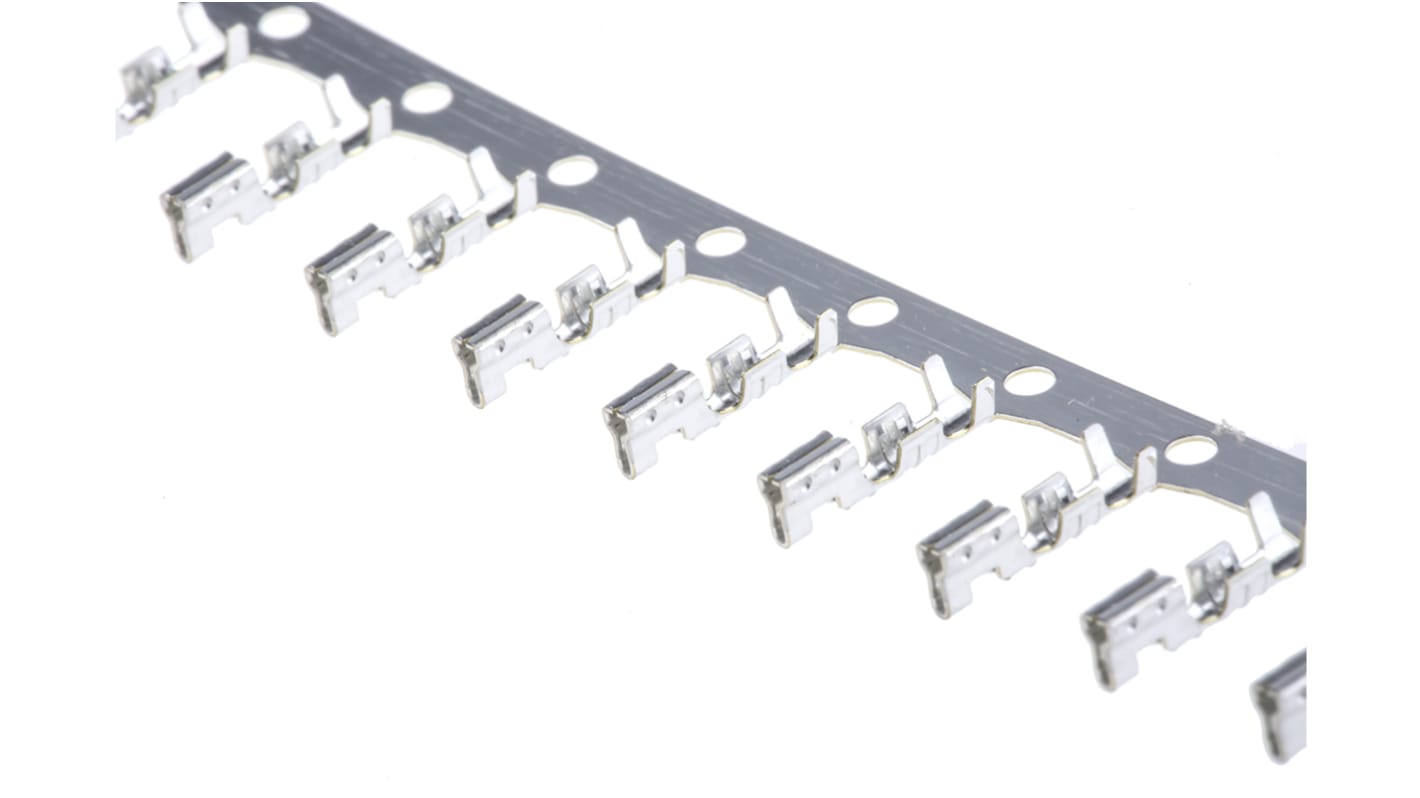

Molex Mini-Latch Series Crimp Terminal, Tin Contact Plating, 0.08mm² Minimum Wire size - 50802-9001
This crimp terminal is a high-quality female connector designed for use with Mini-Latch connector housings. Crafted from brass with tin plating, it provides a robust solution for secure wire connections. The terminal is compatible with various wire sizes, ranging from 0.08 to 0.3 mm², ensuring versatility in a range of applications.
Features & Benefits
• Tin plated connectors enhance durability and conductivity
• Crimp termination method provides reliable and efficient connectivity
• Maximum current rating of 3.0A supports varied electrical needs
• Crimp termination method provides reliable and efficient connectivity
• Maximum current rating of 3.0A supports varied electrical needs
Applications
• Suitable for signal transmission in electronic devices
• Ideal for wire-to-board and wire-to-wire connections
• Suited for automation systems requiring reliable connections
• Suitable for wire sizes 22 to 28 AWG for flexibility
• Ideal for wire-to-board and wire-to-wire connections
• Suited for automation systems requiring reliable connections
• Suitable for wire sizes 22 to 28 AWG for flexibility
How does the crimp termination method benefit connection stability?
The crimp termination method provides a strong mechanical bond, ensuring reliable connectivity without the risk of loosening over time.
What wire insulation diameter can be used with this terminal?
This terminal accommodates wire insulation diameters ranging from 1.15 to 1.90 mm, allowing compatibility with various wire types.
Why is the tin plating advantageous for this terminal?
Tin plating offers excellent resistance to corrosion and enhances electrical conductivity, ensuring optimal performance over time.
What kind of application tooling is compatible with this crimp terminal?
This terminal is compatible with specific hand crimp tools and applicators designed for 2.50mm pitch Mini-Latch terminals, ensuring precise installation.
2.5mm Wire to Board or Wire - Molex
