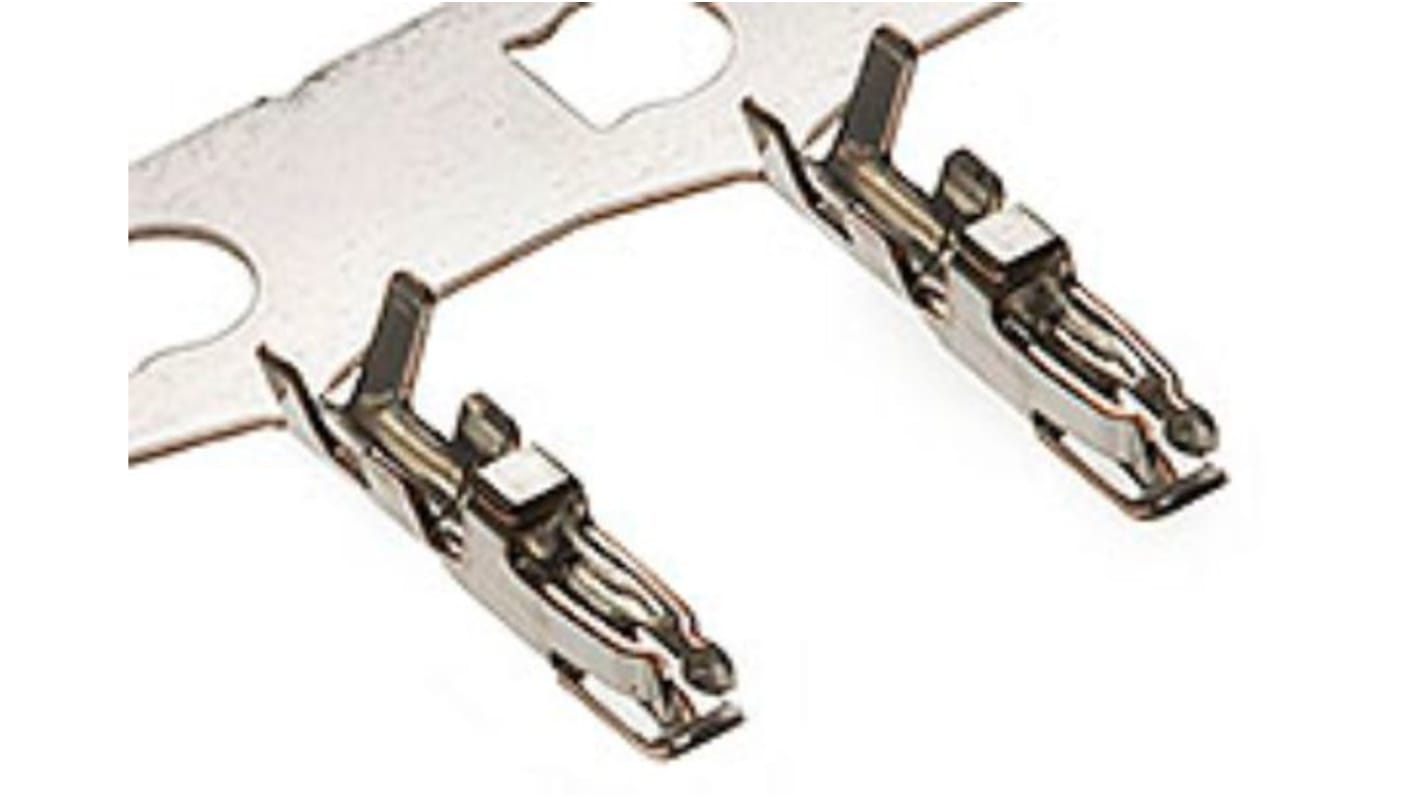

Molex 505565 Series Female Crimp Contact, Crimp or Compression Termination

This crimp contact is a female crimp terminal designed for use with the Micro-Lock Plus receptacle housing. It accommodates wire sizes ranging from 26 AWG to 30 AWG and is built for durability with a mating cycle longevity of up to 30. With its gold-plated finish offering superior conductivity, this product ensures reliable signal transmission for various electronic connections.

• Gold plating enhances electrical conductivity and prevents corrosion
• Copper alloy construction ensures strength and performance
• Designed for crimp or compression termination methods
• Compatible with Micro-Lock Plus receptacle housing for secure connections
• Supports a maximum current rating of 1.5 A for efficient power transfer
• Suitable for wire sizes between 0.049 to 0.136 mm² for flexibility in applications

• Utilised for secure connections in electronic devices
• Ideal for requiring wire-to-board connectivity
• Employed in automation systems where space is constrained
• Used in automotive and mechanical industries for reliable electrical assembly

The gold plating on the contact enhances its conductivity, ensuring efficient transmission of signals and reducing the likelihood of oxidation, which can compromise performance over time.

For effective crimping, specific applicators for Micro-Lock Plus terminals are available, which facilitate precise and reliable crimping of wires within the specified range.

The product is rated for a maximum voltage of 50V AC (RMS) or DC, making it suitable for various low-voltage applications.

Yes, it can accommodate wire insulation diameters ranging from 0.78 mm to 1.02 mm, allowing for versatility in wire selection.
