MPN

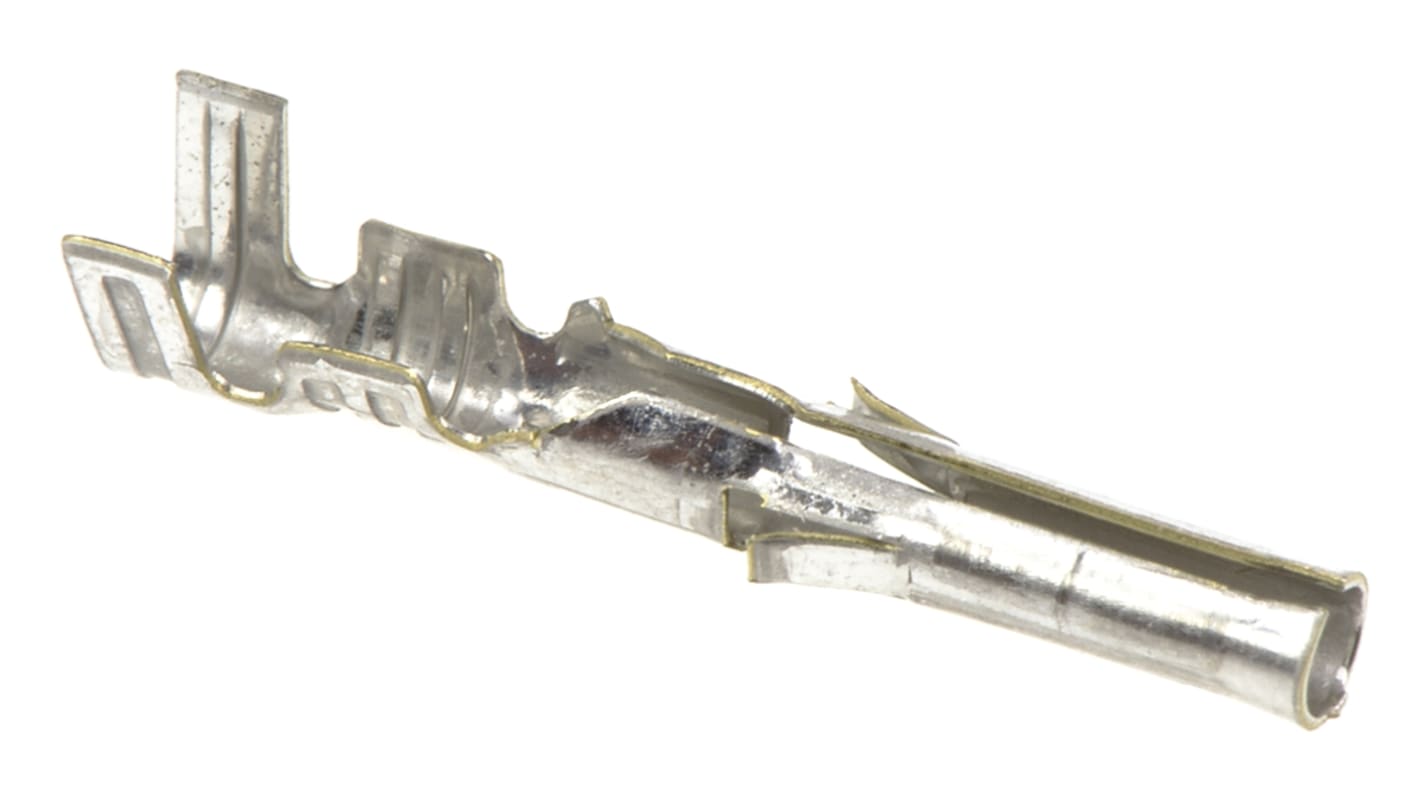

Molex STANDARD .062" Series Female Crimp Terminal, 24AWG Min, 18AWG Max

RS Stock No.:: 236-3050P
Mfr. Part No.:: 02-06-1103
Brand:: Molex

Molex STANDARD .062" Series Female Crimp Terminal, 24AWG Min, 18AWG Max

Bulk discount available

Subtotal 250 units (supplied in a box)*

£30.25

(exc. VAT)

£36.25

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

21,280 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
250 - 990	£0.121
1000 - 4990	£0.097
5000 - 9990	£0.092
10000 +	£0.088

*price indicative

RS Stock No.:: 236-3050P
Mfr. Part No.:: 02-06-1103
Brand:: Molex

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Molex
	Gender	Female
	For Use With	STANDARD .062" Connector Housing
	Series	STANDARD .062"
	Minimum Wire Size mm²	0.2mm²
	Termination Method	Crimp
	Maximum Wire Size mm²	0.8mm²
	Minimum Wire Size AWG	24AWG
	Contact Plating	Tin
	Maximum Wire Size AWG	18AWG
	Contact Material	Brass
	Series Number	1561
	Maximum Contact Resistance	3.2mΩ
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	+105°C

	Select all
	Brand Molex
	Gender Female
	For Use With STANDARD .062" Connector Housing
	Series STANDARD .062"
	Minimum Wire Size mm² 0.2mm²
	Termination Method Crimp
	Maximum Wire Size mm² 0.8mm²
	Minimum Wire Size AWG 24AWG
	Contact Plating Tin
	Maximum Wire Size AWG 18AWG
	Contact Material Brass
	Series Number 1561
	Maximum Contact Resistance 3.2mΩ
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature +105°C

Molex Standard .062" Crimp Terminal Contacts & Tools

A range of 1.57mm Diameter Standard .062" Pin and Socket Crimp Terminal contacts available as gold-plated or tinned versions for use with receptacles housings stock number 236-2928 typically and for plug housings 236-2984 typically

Features:

• Shell Material: Nylon UL 94-V2
• Colour: Neutral (natural nylon)
• Current Rating: 5V
• Voltage: 250V
• 1 to 36 circuit housing
• Passive (friction) lock
• Round terminals may be oriented in any direction

Application:

• Consumer Electronics
• Communications
• Networking
• Portable Devices

Note

See stock number 501-051 for Ratcheting Hand Crimp Tool.
See stock number 710-6499 for none ratchet type Hand Crimp Tool.
See stock number 178-6935 for Insertion Tool.
See stock number 178-6957 for Extraction Tool.

Molex Female Crimp Contact, 24 to 18 AWG - STANDARD .062" series - 02-06-1103

This crimp contact from Molex makes an effective socket for PCBs (printed circuit boards). It provides a secure electrical connection with features that maximise performance. Tin-plated brass contacts offer the perfect combination of durability and conductivity. A passive friction lock secures the contact to the connector housing, while the crimp termination method creates a strong, airtight join that won't corrode. The contact is rated for currents up to 5V (volts) and fits wires from 24 to 18 AWG (American Wire Gauge).

Features & Benefits

• Maximum operating temperature of +105°C and minimum of -40°C allows for use in demanding applications
• Quick and easy to use as no soldering is needed
• Tin contact plating protects against corrosion and rust
• Contains low levels of halogen for reduced risk of toxic fumes in case of excessive heat or fire

Applications

• Consumer electronics
• Telecommunications and networking systems
• Automotive industry
• Industrial automation

What's the difference between a crimp connection and a soldered connection?

Soldering involves heating a fusible metal alloy until it melts over the connector wires. A crimp connection uses pressure to cold-weld the wires together. This creates a mechanically stronger, airtight bond for a more reliable connection.

Molex 1625 Series (0.062in./1.57mm)

A range of Molex Standard .062" products that are suitable for either Power or Signal applications. Housings of the Standard .062" system are polarized and locking is by passive (friction) lock between the plug and the socket via a projection moulded on to the socket. The Standard .062" system housings take male or female round crimp terminals which allows for orientation in any direction.
