Molex 43031 Series Male Crimp Terminal, 30 AWG Min Crimp, 26 AWG Max
- RS Stock No.:
- 233-3043
- Distrelec Article No.:
- 304-40-664
- Mfr. Part No.:
- 43031-0010
- Brand:
- Molex
Bulk discount available
Subtotal (1 bag of 100 units)*
£14.90
(exc. VAT)
£17.90
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Bag* |
|---|---|---|
| 100 - 900 | £0.149 | £14.90 |
| 1000 - 2900 | £0.119 | £11.90 |
| 3000 + | £0.115 | £11.50 |
*price indicative
- RS Stock No.:
- 233-3043
- Distrelec Article No.:
- 304-40-664
- Mfr. Part No.:
- 43031-0010
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | Crimp Terminal | |
| Gender | Male | |
| For Use With | Micro-Fit 3.0 and Micro-Fit BMI Connector Housings | |
| Series | 43031 | |
| Current | 8.5A | |
| Contact Plating | Tin | |
| Minimum Wire Size AWG | 30AWG | |
| Maximum Wire Size AWG | 26AWG | |
| Contact Material | Phosphor Bronze | |
| Maximum Contact Resistance | 10mΩ | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Crimp | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type Crimp Terminal | ||
Gender Male | ||
For Use With Micro-Fit 3.0 and Micro-Fit BMI Connector Housings | ||
Series 43031 | ||
Current 8.5A | ||
Contact Plating Tin | ||
Minimum Wire Size AWG 30AWG | ||
Maximum Wire Size AWG 26AWG | ||
Contact Material Phosphor Bronze | ||
Maximum Contact Resistance 10mΩ | ||
Minimum Operating Temperature -40°C | ||
Termination Type Crimp | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals No | ||

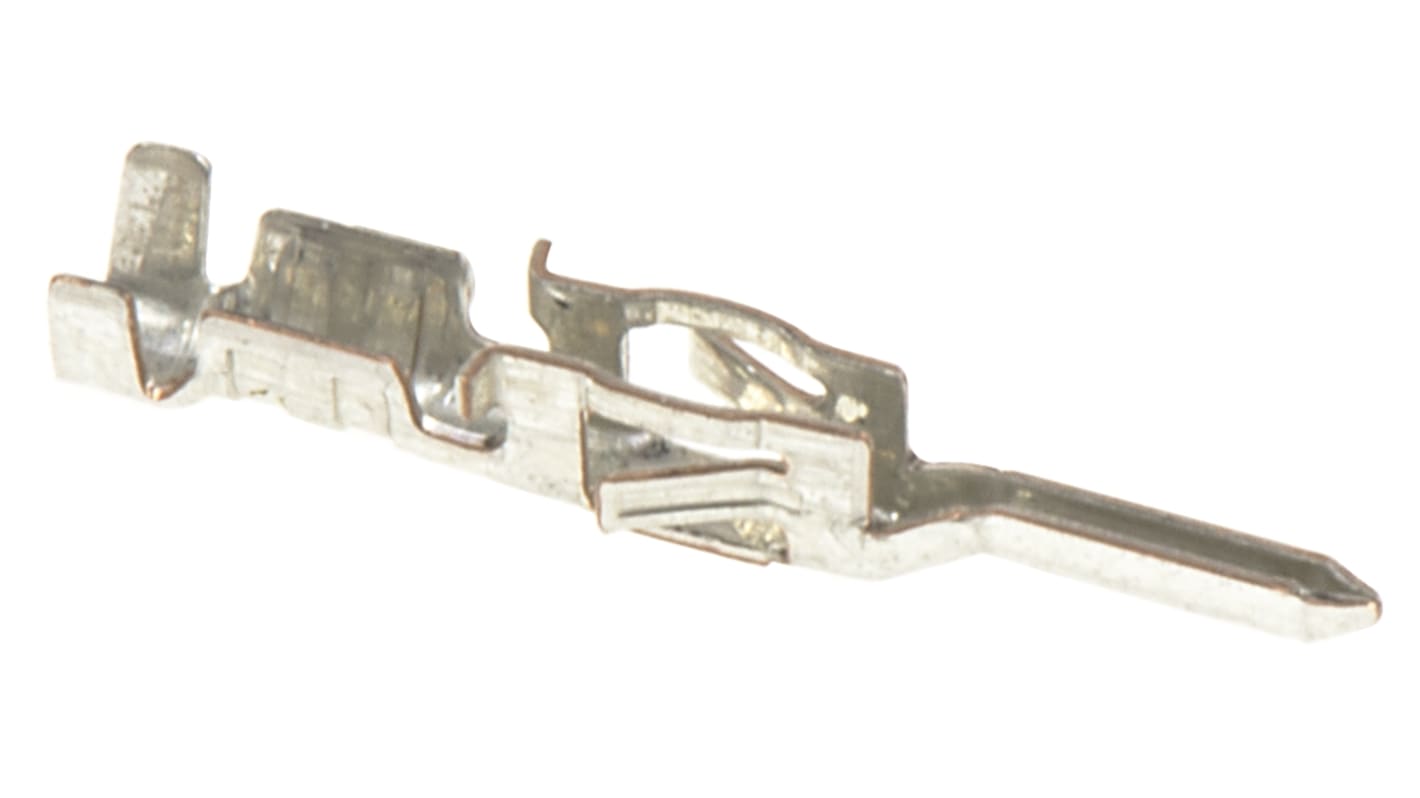

Molex Male Crimp Terminal, 26AWG Maximum Wire Size - Micro-Fit 3.0 Series - 43031-0010
Safely connect your cables to printed circuit boards (PCBs) with this crimp Terminal from Molex. It creates a channel for stranded conductors to be inserted into PCB jumpers. As it's MADE of conductive phosphor bronze material, it ensures a stable and reliable connection. Tin contact plating provides protection from rust and oxidation, so you're sure of long-lasting performance. With a low maximum contact resistance of 10mΩ, this Terminal enables effective signal transmission. You'll find it used in electronics and automation applications.
• Can accommodate different wire sizes, from 30 to 26AWG (American Wire Gauge), for versatility
• Wide operating temperature range of -40°C to +105°C for use in demanding conditions
• Light weight of 0.06g so it's easy to handle and won't strain the PCB
• Simple crimp termination method with low insertion force to save time and effort
Applications
• Medical equipment
• Automotive industries
• Telecommunication infrastructure
What's the difference between a male and a female connector?
The difference between the two connector types is that the female adapter acts as a receptacle to hold the male plug or jack. The female connector can also be called a socket.
