Amphenol Communications Solutions Minitek Series Female Crimp Terminal, 24 AWG Min Crimp, 28 AWG Max
- RS Stock No.:
- 208-3881
- Mfr. Part No.:
- 10157551-0P10LF
- Brand:
- Amphenol Communications Solutions
Bulk discount available
Subtotal (1 tape of 100 units)*
£3.40
(exc. VAT)
£4.10
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Tape* |
|---|---|---|
| 100 - 900 | £0.034 | £3.40 |
| 1000 - 2400 | £0.034 | £3.40 |
| 2500 - 4900 | £0.033 | £3.30 |
| 5000 - 9900 | £0.032 | £3.20 |
| 10000 + | £0.031 | £3.10 |
*price indicative
- RS Stock No.:
- 208-3881
- Mfr. Part No.:
- 10157551-0P10LF
- Brand:
- Amphenol Communications Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Communications Solutions | |
| Product Type | Crimp Terminal | |
| Gender | Female | |
| For Use With | Housing 10157554-00621LF, Housing 10157554-01511LF | |
| Series | Minitek | |
| Current | 2A | |
| Contact Plating | Tin | |
| Minimum Wire Size AWG | 24AWG | |
| Contact Material | Phosphor Bronze | |
| Maximum Wire Size AWG | 28AWG | |
| Maximum Contact Resistance | 20mΩ | |
| Termination Type | Crimp | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Amphenol Communications Solutions | ||
Product Type Crimp Terminal | ||
Gender Female | ||
For Use With Housing 10157554-00621LF, Housing 10157554-01511LF | ||
Series Minitek | ||
Current 2A | ||
Contact Plating Tin | ||
Minimum Wire Size AWG 24AWG | ||
Contact Material Phosphor Bronze | ||
Maximum Wire Size AWG 28AWG | ||
Maximum Contact Resistance 20mΩ | ||
Termination Type Crimp | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals No | ||

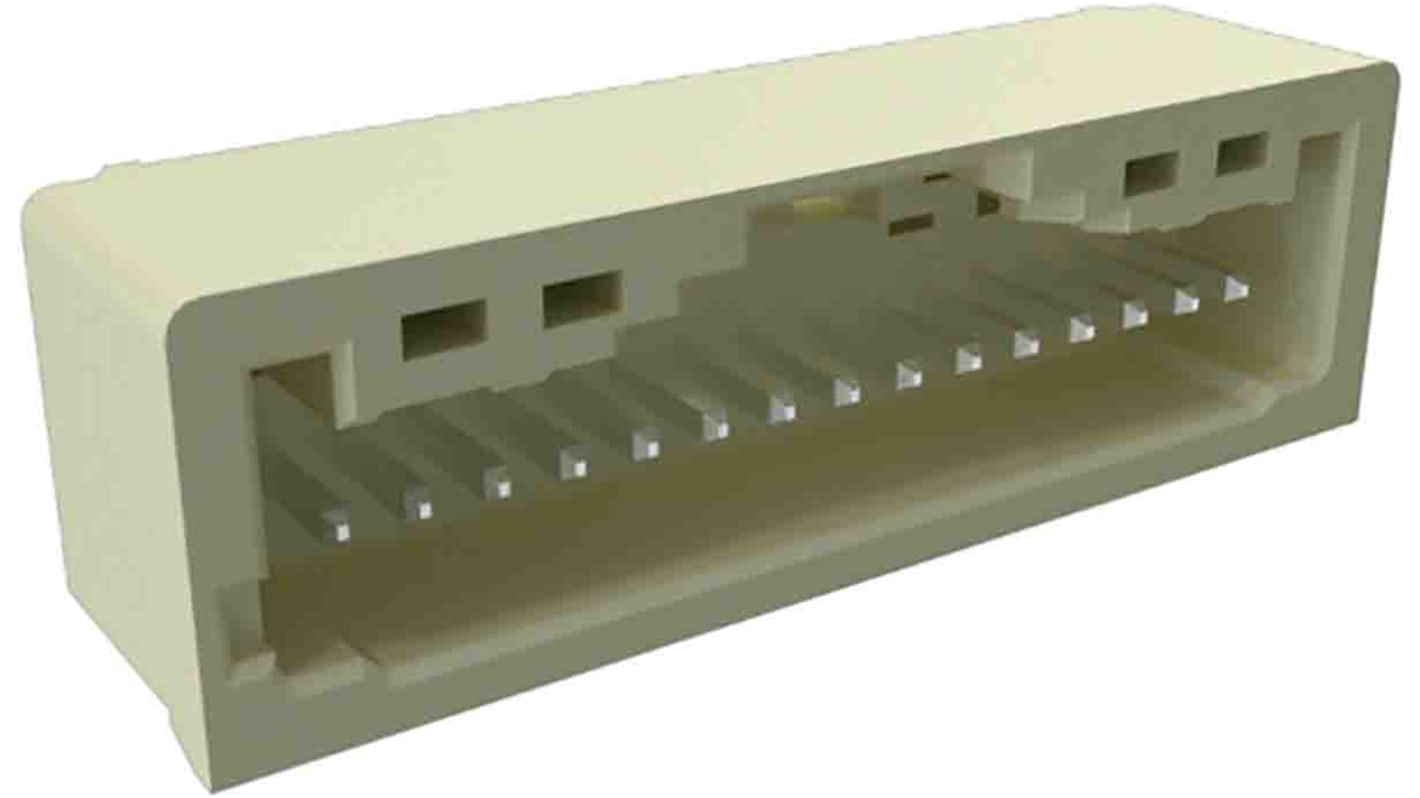

The Amphenol FCI Minitek series multipitch 1.25mm receptacle terminal with compact design addresses the growing demand for miniaturizing components.
Housing with positive locking
Hold down feature
Polarized mating geometry
