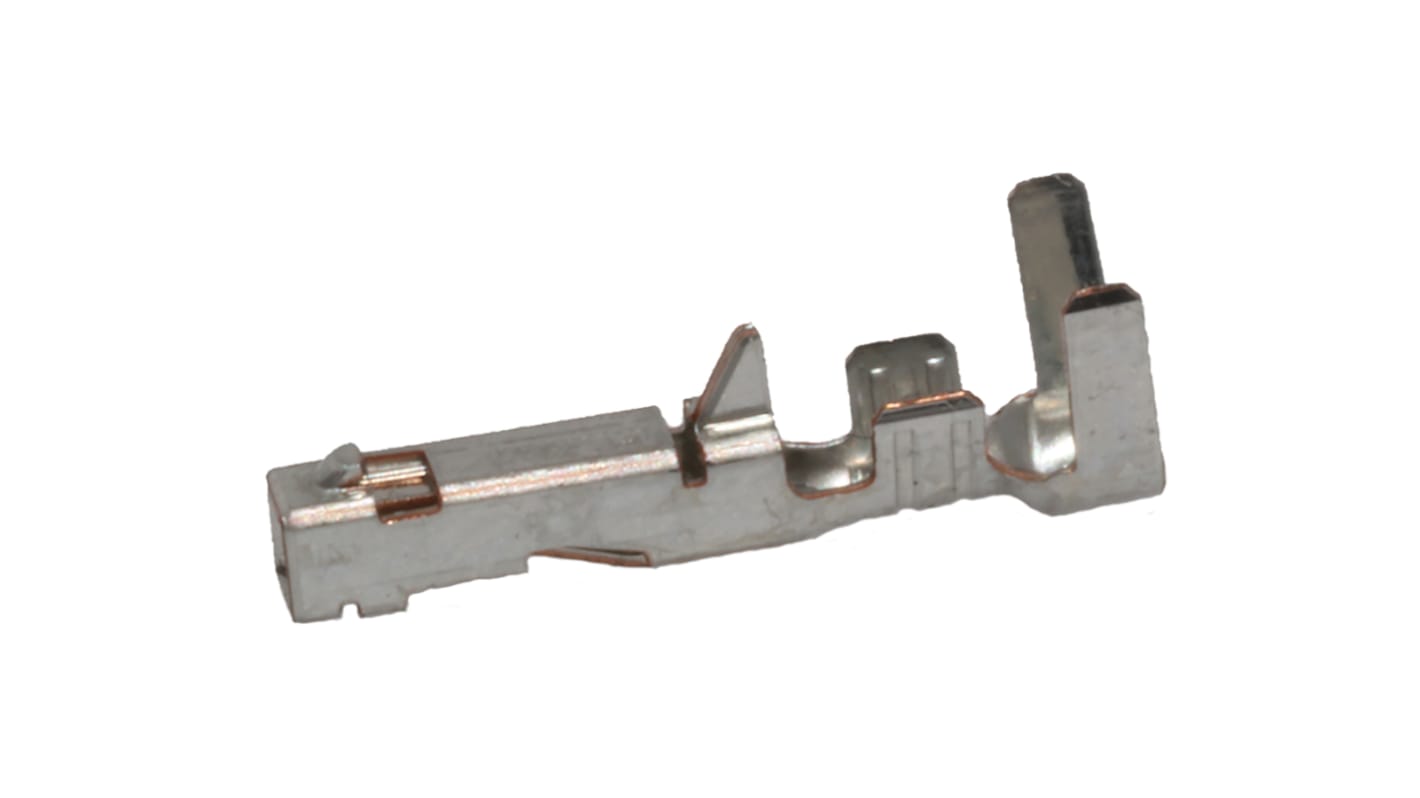

Molex CP-6.5 Series Female Crimp Terminal, Compression, Crimp Termination, 24AWG Min, 22AWG Max
- RS Stock No.:
- 191-8128
- Mfr. Part No.:
- 50598-8010
- Brand:
- Molex
Bulk discount available
Subtotal (1 tape of 50 units)*
£8.55
(exc. VAT)
£10.25
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3,450 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 50 - 450 | £0.171 | £8.55 |
| 500 - 950 | £0.099 | £4.95 |
| 1000 + | £0.088 | £4.40 |
*price indicative
- RS Stock No.:
- 191-8128
- Mfr. Part No.:
- 50598-8010
- Brand:
- Molex
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Gender | Female | |
| For Use With | 151207 CP-6.5 Receptacle Housing | |
| Series | CP-6.5 | |
| Termination Method | Compression, Crimp | |
| Minimum Wire Size AWG | 24AWG | |
| Contact Plating | Tin | |
| Contact Material | Copper Alloy | |
| Maximum Wire Size AWG | 22AWG | |
| Series Number | 50598 | |
| Maximum Contact Resistance | 10mΩ | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +105°C | |
Select all | ||
|---|---|---|
Brand Molex | ||
Gender Female | ||
For Use With 151207 CP-6.5 Receptacle Housing | ||
Series CP-6.5 | ||
Termination Method Compression, Crimp | ||
Minimum Wire Size AWG 24AWG | ||
Contact Plating Tin | ||
Contact Material Copper Alloy | ||
Maximum Wire Size AWG 22AWG | ||
Series Number 50598 | ||
Maximum Contact Resistance 10mΩ | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +105°C | ||
