Molex 5556 Series Female Crimp Terminal, 24 AWG Min Crimp, 18 AWG Max
- RS Stock No.:
- 189-1405
- Mfr. Part No.:
- 39-00-0429
- Brand:
- Molex

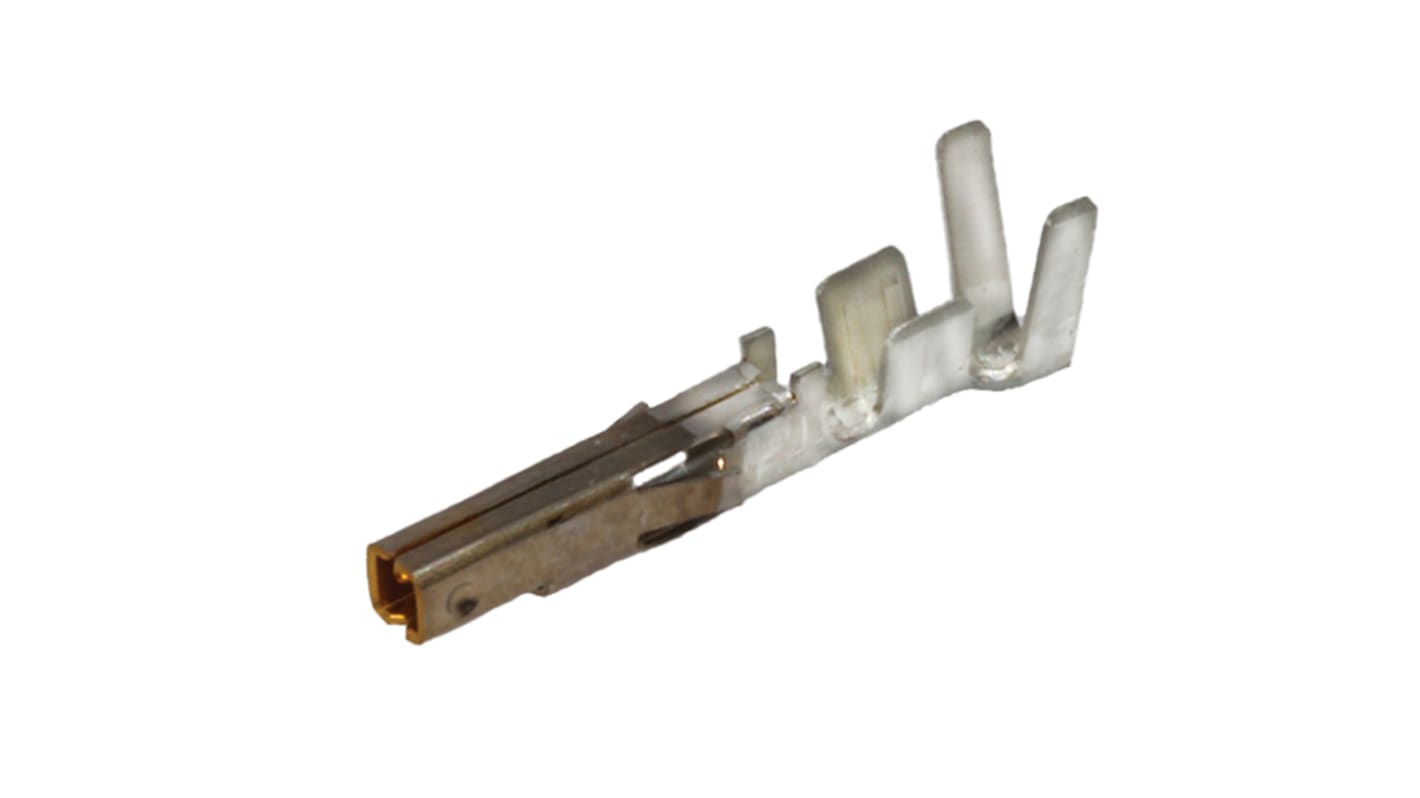

Image representative of range
Subtotal (1 bag of 4000 units)*
£1,216.00
(exc. VAT)
£1,460.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 20,000 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 4000 + | £0.304 | £1,216.00 |
*price indicative
- RS Stock No.:
- 189-1405
- Mfr. Part No.:
- 39-00-0429
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Gender | Female | |
| Product Type | Crimp Terminal | |
| For Use With | Mini-Fit Jr Connector Housing | |
| Series | 5556 | |
| Current | 9A | |
| Contact Plating | Gold | |
| Minimum Wire Size AWG | 24AWG | |
| Maximum Wire Size AWG | 18AWG | |
| Contact Material | Brass | |
| Maximum Contact Resistance | 10mΩ | |
| Termination Type | Crimp | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Gender Female | ||
Product Type Crimp Terminal | ||
For Use With Mini-Fit Jr Connector Housing | ||
Series 5556 | ||
Current 9A | ||
Contact Plating Gold | ||
Minimum Wire Size AWG 24AWG | ||
Maximum Wire Size AWG 18AWG | ||
Contact Material Brass | ||
Maximum Contact Resistance 10mΩ | ||
Termination Type Crimp | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals No | ||
Molex Mini-Fit Series Crimp Terminal, Gold Contact Plating, 0.2mm² Minimum Wire size - 39-00-0429
This female crimp terminal is part of the Mini-Fit series and is designed for use with Mini-Fit Jr connector housings. It supports a wire size range of 24 to 18 AWG and features brass contacts plated with gold, enhancing conductivity and durability. The terminal operates efficiently in temperatures ranging from -40 °C to +105 °C, making it suitable for various applications in demanding environments.
Features & Benefits
• Excellent electrical conductivity with gold-plated connectors
• Robust brass construction ensures durability in high-stress environments
• Covers a wire size range of 24 AWG to 18 AWG
• Designed for reliable crimping with minimal contact resistance
• Operates within a wide temperature range, from -40 °C to +105 °C
• Ideal for applications requiring up to 9.0A current and 600V voltage
Applications
• Utilised in power distribution systems
• Suitable for wire-to-board and wire-to-wire connections
• Perfect for automation and electronics industries
• Employed in mechanical assembly for electrical connectivity solutions
What is the maximum contact resistance for effective performance?
The crimp terminal has a maximum contact resistance of 10 mΩ, ensuring efficient electrical connections with minimal power loss.
How does the terminal withstand extreme conditions?
It is rated for temperatures between -40 °C and +105 °C, making it capable of functioning reliably under various environmental conditions without compromising performance.
What is the significance of the gold plating on the terminal?
The selective gold plating enhances corrosion resistance and conductivity, which is crucial for maintaining high-performance connections in electrical applications.
