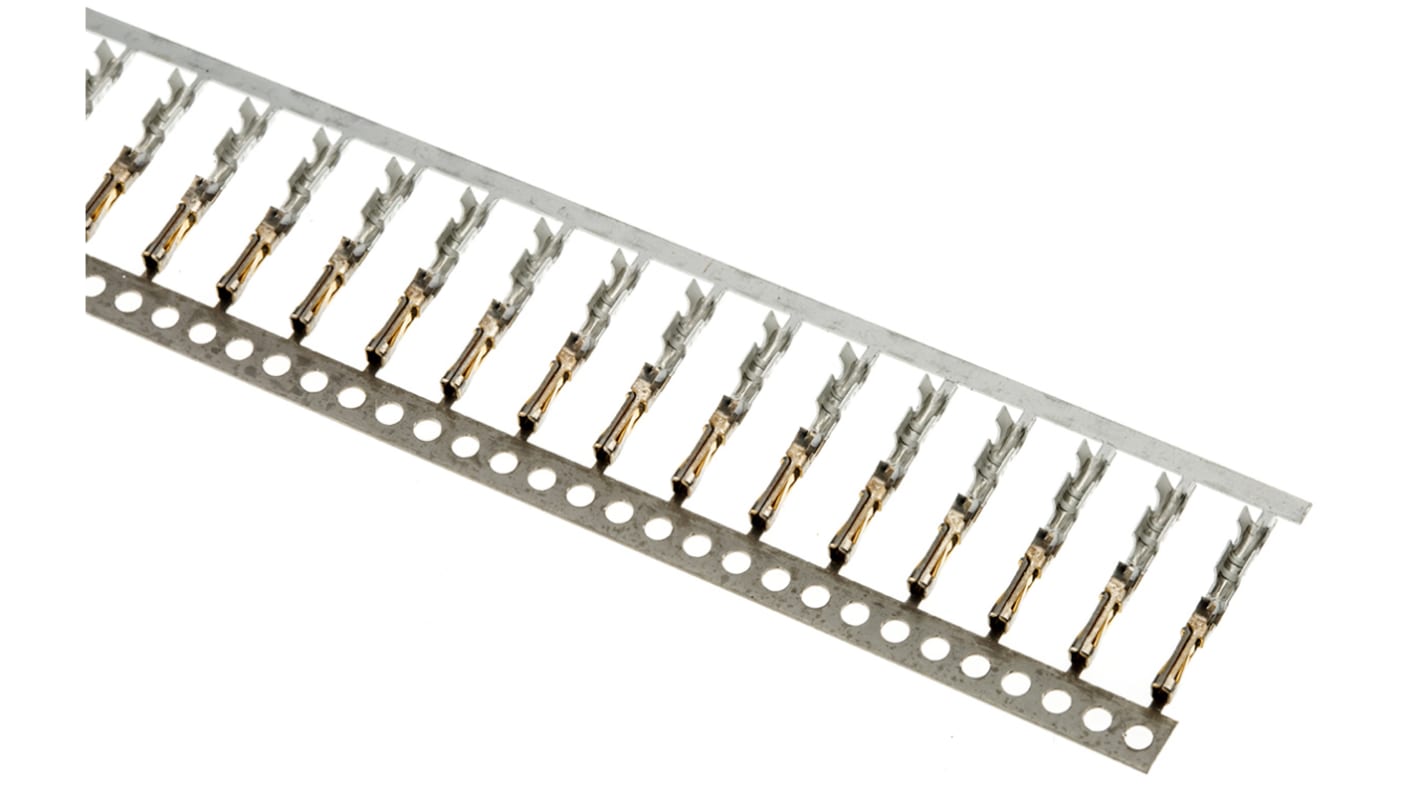

Molex CyClone, SL Series Female Crimp Terminal, Compression, Crimp Termination, 24AWG Min, 22AWG Max
- RS Stock No.:
- 189-1339
- Mfr. Part No.:
- 16-02-0087
- Brand:
- Molex
Subtotal (1 reel of 20000 units)*
£1,260.00
(exc. VAT)
£1,520.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 20,000 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 20000 + | £0.063 | £1,260.00 |
*price indicative
- RS Stock No.:
- 189-1339
- Mfr. Part No.:
- 16-02-0087
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Gender | Female | |
| For Use With | 70066 SL Crimp Housings, 70450 SL Crimp Housings, 73099 CyClone Connector | |
| Series | CyClone, SL | |
| Termination Method | Compression, Crimp | |
| Contact Plating | Gold, Tin | |
| Minimum Wire Size AWG | 24AWG | |
| Maximum Wire Size AWG | 22AWG | |
| Contact Material | Phosphor Bronze | |
| Series Number | 70058 | |
| Maximum Contact Resistance | 10mΩ | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +105°C | |
Select all | ||
|---|---|---|
Brand Molex | ||
Gender Female | ||
For Use With 70066 SL Crimp Housings, 70450 SL Crimp Housings, 73099 CyClone Connector | ||
Series CyClone, SL | ||
Termination Method Compression, Crimp | ||
Contact Plating Gold, Tin | ||
Minimum Wire Size AWG 24AWG | ||
Maximum Wire Size AWG 22AWG | ||
Contact Material Phosphor Bronze | ||
Series Number 70058 | ||
Maximum Contact Resistance 10mΩ | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +105°C | ||
- COO (Country of Origin):
- US
Molex CyClone / SL Series Crimp Terminal, Phosphor Bronze Contact Material, Compression / Crimp Termination Method - 16-02-0087
This CyClone Crimp Terminal, designed for 22-24 AWG wires, features a 0.38μm gold-plated contact for reliable conductivity. With a maximum wire insulation diameter of 1.63mm, it is engineered for robust performance in signal applications and compatible with SL crimp housings.
Features & Benefits
• Gold-plated contact for low-resistance connections
• Phosphor bronze for durability and longevity
• Compatible with 70066 and 70450 SL crimp housings
• High-temperature performance from -40°C to +105°C
• Maintains contact resistance under 10mΩ
• Phosphor bronze for durability and longevity
• Compatible with 70066 and 70450 SL crimp housings
• High-temperature performance from -40°C to +105°C
• Maintains contact resistance under 10mΩ
Applications
• Signal applications needing reliable connections
• Wire-to-board and wire-to-wire configurations
• Automated systems and electronics
• Mechanical assemblies requiring robust connectivity
• Wire-to-board and wire-to-wire configurations
• Automated systems and electronics
• Mechanical assemblies requiring robust connectivity
Is this product compliant with environmental regulations?
Yes, it meets EU RoHS and GADSL standards.
