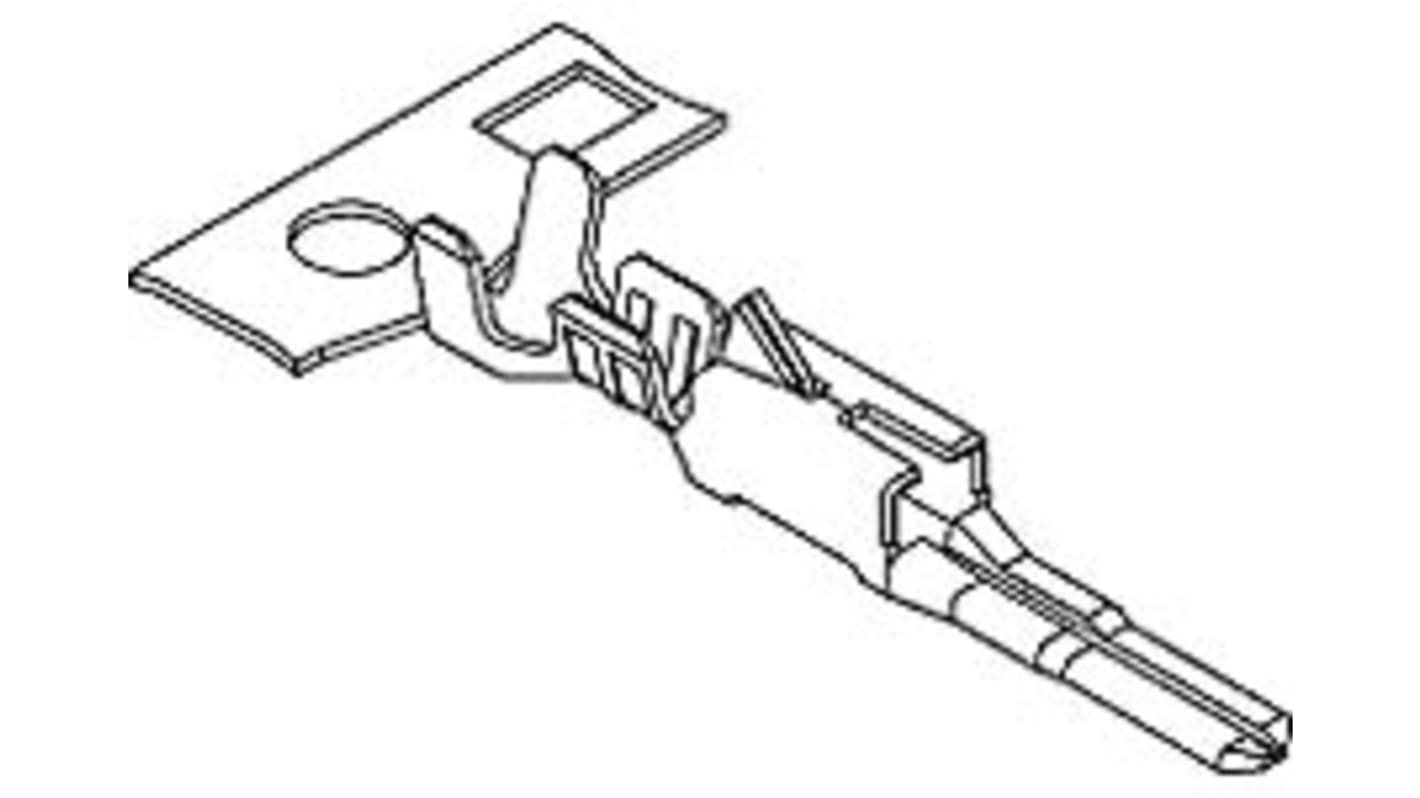

Molex CP-3.3 Series Male Crimp Terminal, 28AWG Min, 22AWG Max
- RS Stock No.:
- 150-4143
- Mfr. Part No.:
- 50398-8000
- Brand:
- Molex
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 150-4143
- Mfr. Part No.:
- 50398-8000
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Gender | Male | |
| For Use With | CP-3.3 Connector Housing | |
| Series | CP-3.3 | |
| Minimum Wire Size mm² | 0.08mm² | |
| Termination Method | Crimp | |
| Maximum Wire Size mm² | 0.35mm² | |
| Minimum Wire Size AWG | 28AWG | |
| Contact Plating | Tin | |
| Maximum Wire Size AWG | 22AWG | |
| Contact Material | Copper Alloy | |
| Series Number | 50398 | |
| Maximum Contact Resistance | 20mΩ | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +105°C | |
Select all | ||
|---|---|---|
Brand Molex | ||
Gender Male | ||
For Use With CP-3.3 Connector Housing | ||
Series CP-3.3 | ||
Minimum Wire Size mm² 0.08mm² | ||
Termination Method Crimp | ||
Maximum Wire Size mm² 0.35mm² | ||
Minimum Wire Size AWG 28AWG | ||
Contact Plating Tin | ||
Maximum Wire Size AWG 22AWG | ||
Contact Material Copper Alloy | ||
Series Number 50398 | ||
Maximum Contact Resistance 20mΩ | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +105°C | ||
- COO (Country of Origin):
- JP
2.5mm Terminal, 50397 Series
Leveraging full keying and Colour-pairing features, foolproof CP-3.3 wire-to- wire connectors enhance user-safety while preventing mismating in consumer electronics, white goods, industrial and medical application
2.50mm and 3.30mm Pitch Crimp Terminal, Male, 22-28 AWG, Reel
2.5mm Wire to Board or Wire - Molex
