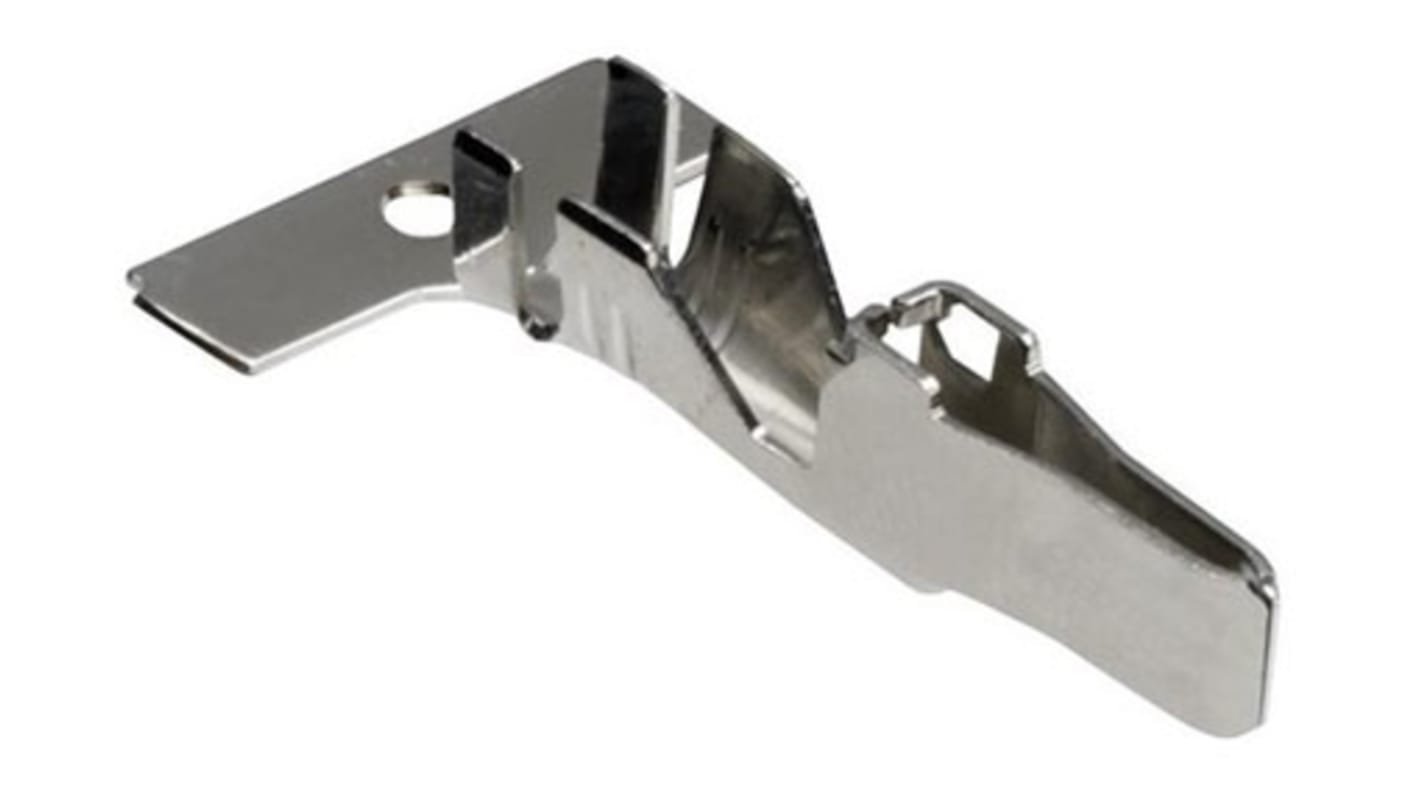

Molex Mini-Fit Sr Series Male Crimp Terminal, 16AWG Min, 14AWG Max
- RS Stock No.:
- 124-7167
- Mfr. Part No.:
- 42817-1044
- Brand:
- Molex
Bulk discount available
Subtotal (1 bag of 50 units)*
£68.20
(exc. VAT)
£81.85
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 1,900 unit(s) shipping from 06 October 2025
- Plus 100 unit(s) shipping from 06 October 2025
- Plus 6,200 unit(s) shipping from 13 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 50 - 200 | £1.364 | £68.20 |
| 250 - 450 | £1.231 | £61.55 |
| 500 - 950 | £1.102 | £55.10 |
| 1000 - 2450 | £0.971 | £48.55 |
| 2500 + | £0.933 | £46.65 |
*price indicative
- RS Stock No.:
- 124-7167
- Mfr. Part No.:
- 42817-1044
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Gender | Male | |
| For Use With | Mini-Fit Sr Connector Housing | |
| Series | Mini-Fit Sr | |
| Termination Method | Crimp | |
| Contact Plating | Silver | |
| Minimum Wire Size AWG | 16AWG | |
| Contact Material | Copper Alloy | |
| Maximum Wire Size AWG | 14AWG | |
| Series Number | 42817 | |
| Maximum Contact Resistance | 1.5mΩ | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +105°C | |
Select all | ||
|---|---|---|
Brand Molex | ||
Gender Male | ||
For Use With Mini-Fit Sr Connector Housing | ||
Series Mini-Fit Sr | ||
Termination Method Crimp | ||
Contact Plating Silver | ||
Minimum Wire Size AWG 16AWG | ||
Contact Material Copper Alloy | ||
Maximum Wire Size AWG 14AWG | ||
Series Number 42817 | ||
Maximum Contact Resistance 1.5mΩ | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +105°C | ||
- COO (Country of Origin):
- US
Molex Mini-Fit Sr. Crimp contacts - 42815 and 42817 Series
Male and female crimp terminals for use in Mini-Fit Sr. receptacle and plug housings able to support up to 50 A. These crimp terminals are available with a silver plating which is more cost effective than gold and also offers corrosion resistance and good conductive qualities. The receptacle terminals have a dual beam design with four points of contact for high contact reliability and long-term electrical performance. These crimp terminals also have a low insertion force
Features and Benefits
• Support up to 50 A
• Silver plating offers cost savings, corrosion resistance and high conductivity
• Dual beam design with four points of contact for high electrical reliability
• Low insertion force
• Silver plating offers cost savings, corrosion resistance and high conductivity
• Dual beam design with four points of contact for high electrical reliability
• Low insertion force
Product Application Information
Mini-Fit Sr. power connectors are suitable for use in the industrial, consumer, automotive, telecommunications and medical industries. Applications include printers, power supplies, washers, dryers, motorcycles, commercial vehicles, servers and X-ray machines
Molex Minifit Sr.™ Series
