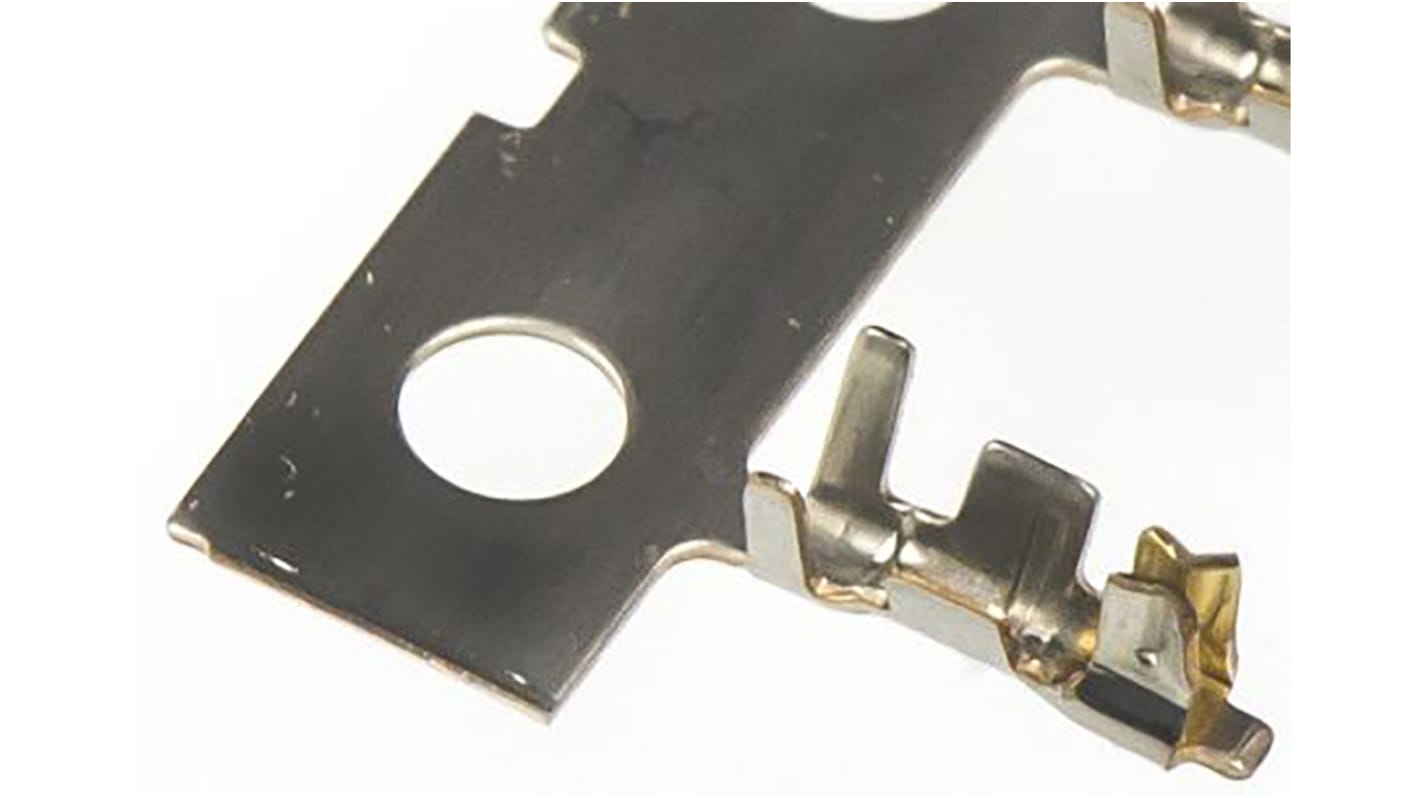

Hirose DF20 Series Female Crimp Terminal, 30AWG Min, 28AWG Max

View all Crimp Contacts
Bulk discount available

Subtotal (1 reel of 10000 units)*

£300.00

(exc. VAT)

£400.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 60,000 unit(s) ready to ship
  • Plus 70,000 unit(s) shipping from 21 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
10000 - 10000£0.03£300.00
20000 - 40000£0.028£280.00
50000 - 90000£0.026£260.00
100000 - 190000£0.025£250.00
200000 +£0.024£240.00

*price indicative

RS Stock No.:
122-1635
Mfr. Part No.:
DF20F-2830SCFA
Brand:
Hirose
Find similar products by selecting one or more attributes.
Select all

Brand

Hirose

Gender

Female

For Use With

DF20A Connector Housing

Series

DF20

Maximum Wire Size mm²

0.08mm²

Termination Method

Crimp

Minimum Wire Size AWG

30AWG

Contact Plating

Gold

Contact Material

Copper Alloy

Maximum Wire Size AWG

28AWG

Maximum Contact Resistance

30mΩ

Minimum Operating Temperature

-35°C

Maximum Current

1A

Maximum Operating Temperature

+85°C

COO (Country of Origin):
JP

Crimp Receptacle Contacts for DF20 Series Socket Connector


Crimp receptacle contacts for use with DF20 series socket connectors. These crimp socket contacts are made from gold plated phosphor bronze and are available in two sizes: stock number 685-0757 is for wire sizes 28-30 AWG and stock number 779-4761 is for wire sizes 30-32 AWG.


1.0mm Double-Row Connector - Hirose DF20


Board to wire connector range, 1mm contact pitch,Low profile design with a mating height above the PCB of 5.8mm,Mechanism to prevent mis-insertion
