Baumer FE514 Counter, 6 Digit, 60Hz, 110 V ac
- RS Stock No.:
- 287-8265
- Mfr. Part No.:
- FE514.650AB8C
- Brand:
- Baumer

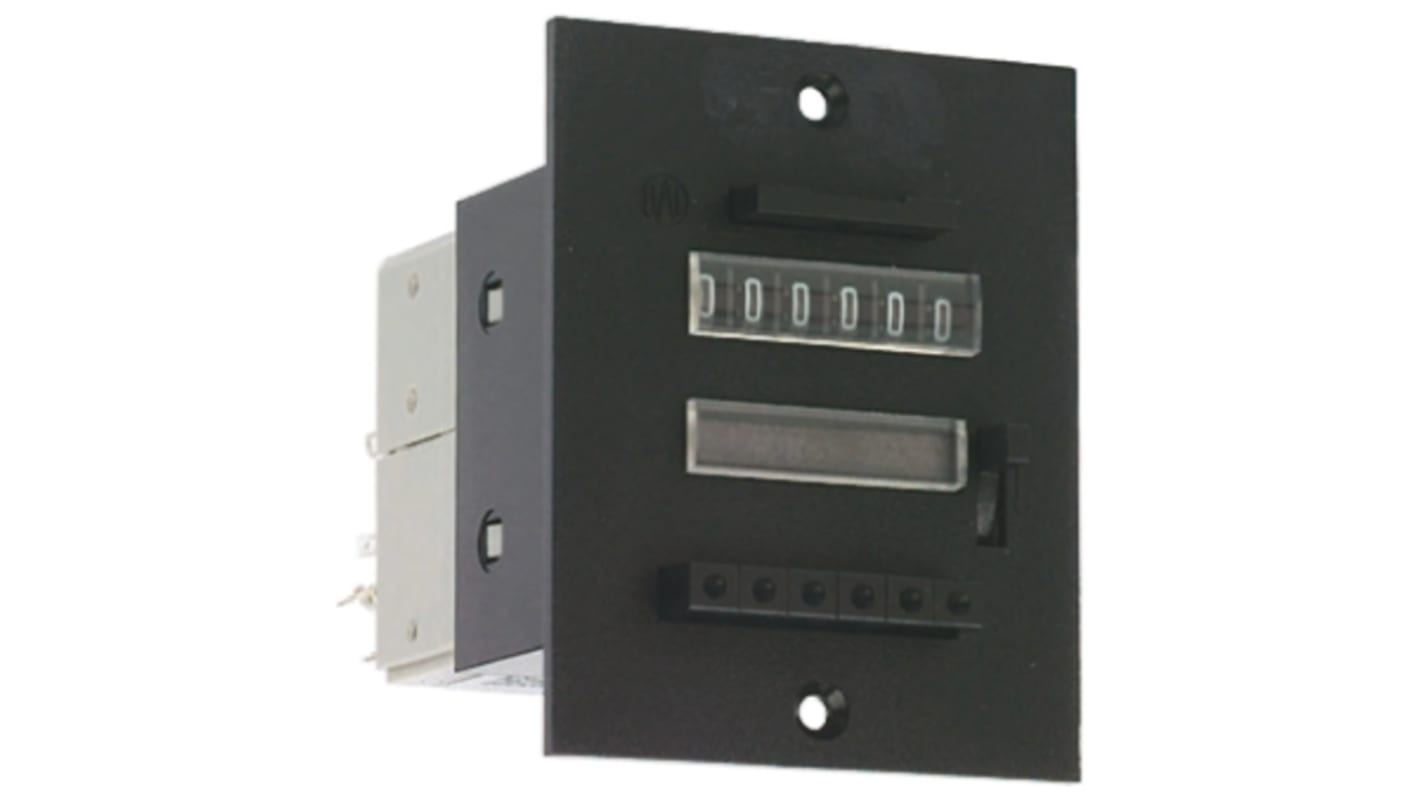

Image representative of range
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£474.86
(exc. VAT)
£569.83
(inc. VAT)
- RS Stock No.:
- 287-8265
- Mfr. Part No.:
- FE514.650AB8C
- Brand:
- Baumer
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Baumer | |
| Supply Voltage | 110 V ac | |
| Count Mode | Impulses | |
| Display Type | Mechanical | |
| Input Type | Voltage | |
| Connection Type | Solder Pin | |
| Reset Method | Manual | |
| Number of Digits | 6 | |
| Mounting Type | Panel Mount | |
| Output / Interface | Contact | |
| Count Direction | Batch, Up | |
| Digit Height | 4.5 mm | |
| Maximum Count Frequency | 60Hz | |
| Display Range | 0 → 999999 | |
| Measurement Range | 0 → 999999 | |
| Minimum Operating Temperature | 0°C | |
| Series | FE514 | |
| Weight | 160g | |
| Maximum Operating Temperature | +45°C | |
Select all | ||
|---|---|---|
Brand Baumer | ||
Supply Voltage 110 V ac | ||
Count Mode Impulses | ||
Display Type Mechanical | ||
Input Type Voltage | ||
Connection Type Solder Pin | ||
Reset Method Manual | ||
Number of Digits 6 | ||
Mounting Type Panel Mount | ||
Output / Interface Contact | ||
Count Direction Batch, Up | ||
Digit Height 4.5 mm | ||
Maximum Count Frequency 60Hz | ||
Display Range 0 → 999999 | ||
Measurement Range 0 → 999999 | ||
Minimum Operating Temperature 0°C | ||
Series FE514 | ||
Weight 160g | ||
Maximum Operating Temperature +45°C | ||
- COO (Country of Origin):
- DE
Predetermining Batch
Isolated SPDT microswitch changes over when the counter reaches the preselected count value, 230Vac 2A (contact load)
Contacts return to original position when counter is reset to zero
Contacts return to original position when counter is reset to zero
