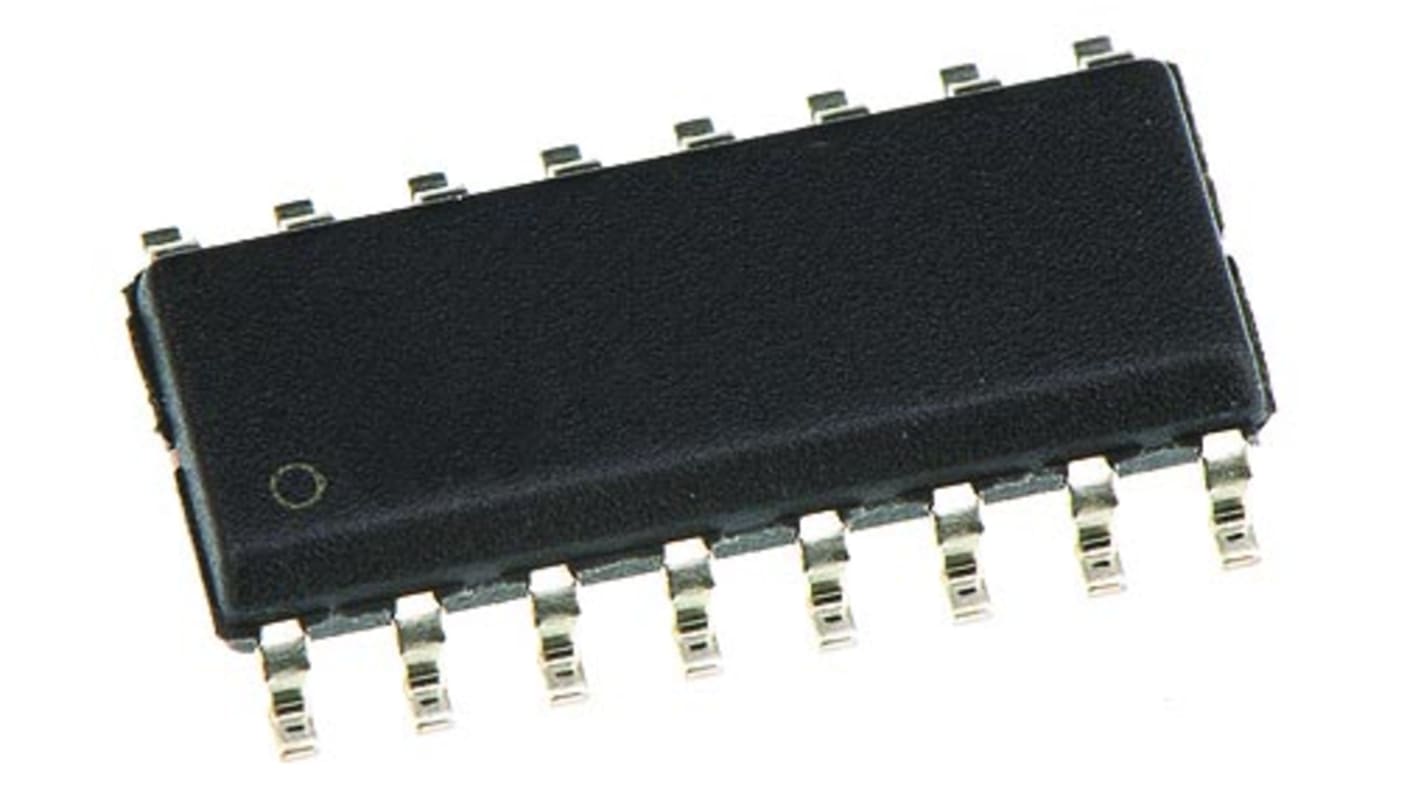

Nexperia HEF4021BT,652 8-stage Shift Register, Parallel to Serial, , Uni-Directional, 16-Pin SOIC

  • RS Stock No. 865-1599
  • Mfr. Part No. HEF4021BT,652
  • Brand Nexperia
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TH
Product Details

4000 Series Counters & Shift Registers, Nexperia

4000 CMOS Logic Family, Nexperia

CMOS Family devices
Wide operating voltage range: 3 to 18V

Specifications
Attribute Value
Package Type SOIC
Logic Function Shift Register
Number of Stages 8
Logic Family HEF
Mounting Type Surface Mount
Operation Mode Parallel to Serial
Number of Elements 1
Pin Count 16
Minimum Operating Supply Voltage 3 V
Maximum Operating Supply Voltage 15 V
Dimensions 10 x 4 x 1.45mm
Length 10mm
Width 4mm
Height 1.45mm
Minimum Operating Temperature -40 °C
Direction Type Uni-Directional
Maximum Operating Temperature +125 °C
Triggering Type Positive Edge
1800 In stock for FREE next working day delivery
Price Each (In a Tube of 50)
£ 0.175
(exc. VAT)
£ 0.21
(inc. VAT)
Units
Per unit
Per Tube*
50 - 50
£0.175
£8.75
100 - 200
£0.171
£8.55
250 - 450
£0.166
£8.30
500 - 950
£0.162
£8.10
1000 +
£0.158
£7.90
*price indicative
