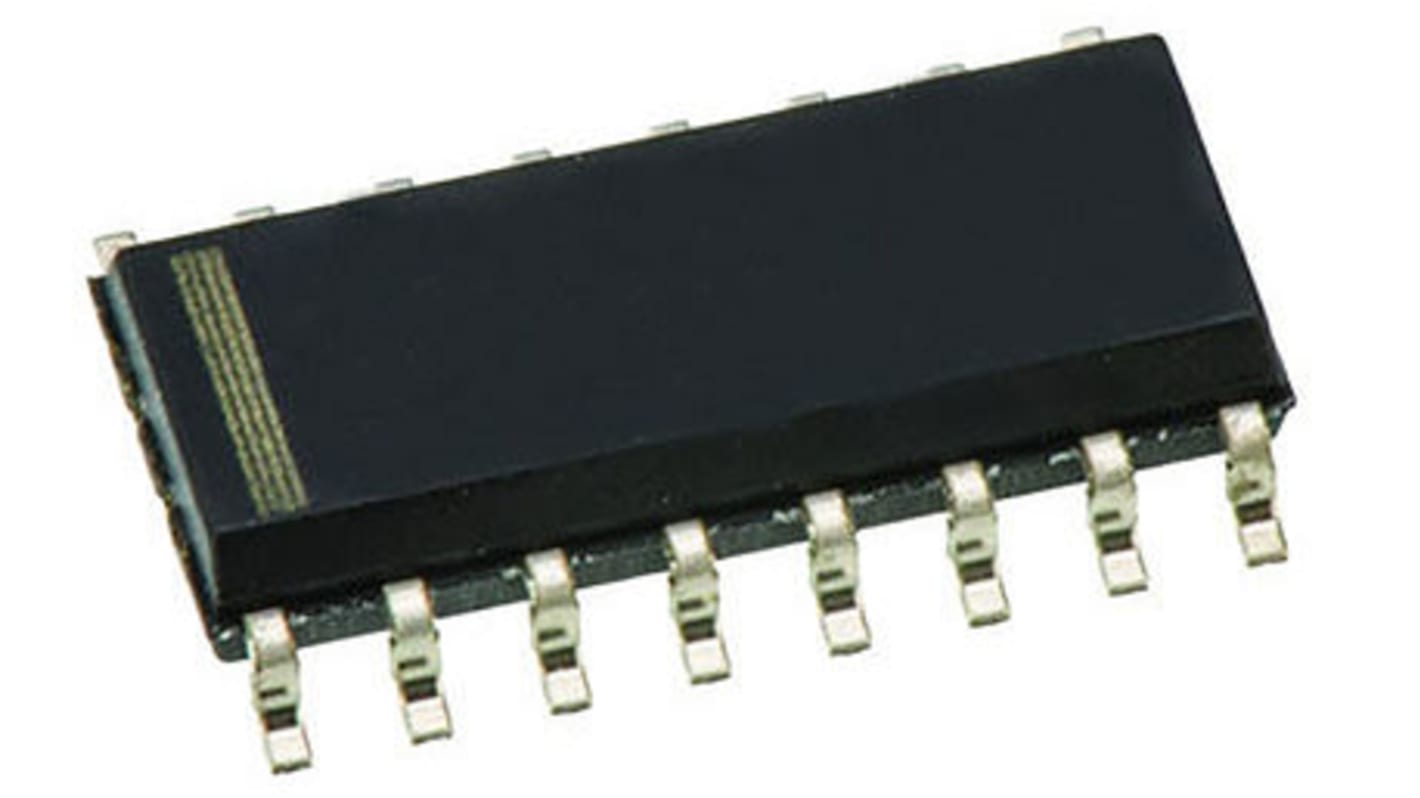

Nexperia 74HC390D,652 Surface Mount Decade Counter 74HC, 16-Pin SOIC
- RS Stock No.:
- 781-2819
- Mfr. Part No.:
- 74HC390D,652
- Brand:
- Nexperia
Discontinued
- RS Stock No.:
- 781-2819
- Mfr. Part No.:
- 74HC390D,652
- Brand:
- Nexperia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Package Type | SOIC | |
| Logic Function | Counter | |
| Logic Family | 74HC | |
| Mounting Type | Surface Mount | |
| Counter Type | Decade | |
| Operation Mode | Up Counter | |
| Number of Elements | 2 | |
| Pin Count | 16 | |
| Minimum Operating Supply Voltage | 2 V | |
| Maximum Operating Supply Voltage | 6 V | |
| Dimensions | 10 x 4 x 1.45mm | |
| Length | 10mm | |
| Width | 3.9mm | |
| Height | 1.45mm | |
| Direction Type | Uni-Directional | |
| Triggering Type | Negative Edge | |
| Minimum Operating Temperature | -40 °C | |
| Reset Type | Asynchronous | |
| Maximum Operating Temperature | +125 °C | |
| Select all | ||
|---|---|---|
Brand Nexperia | ||
Package Type SOIC | ||
Logic Function Counter | ||
Logic Family 74HC | ||
Mounting Type Surface Mount | ||
Counter Type Decade | ||
Operation Mode Up Counter | ||
Number of Elements 2 | ||
Pin Count 16 | ||
Minimum Operating Supply Voltage 2 V | ||
Maximum Operating Supply Voltage 6 V | ||
Dimensions 10 x 4 x 1.45mm | ||
Length 10mm | ||
Width 3.9mm | ||
Height 1.45mm | ||
Direction Type Uni-Directional | ||
Triggering Type Negative Edge | ||
Minimum Operating Temperature -40 °C | ||
Reset Type Asynchronous | ||
Maximum Operating Temperature +125 °C | ||
- COO (Country of Origin):
- TH
74HC Family Counters & Shift Registers, Nexperia
A range of 74HC Family CMOS Logic Counters and Shift Registers from NXP. The 74HC Family use silicon gate CMOS technology to achieve operating speeds similar to the LSTTL family but with the low power consumption of standard CMOS integrated circuits.
High-Speed CMOS Logic
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS
74HC Family
