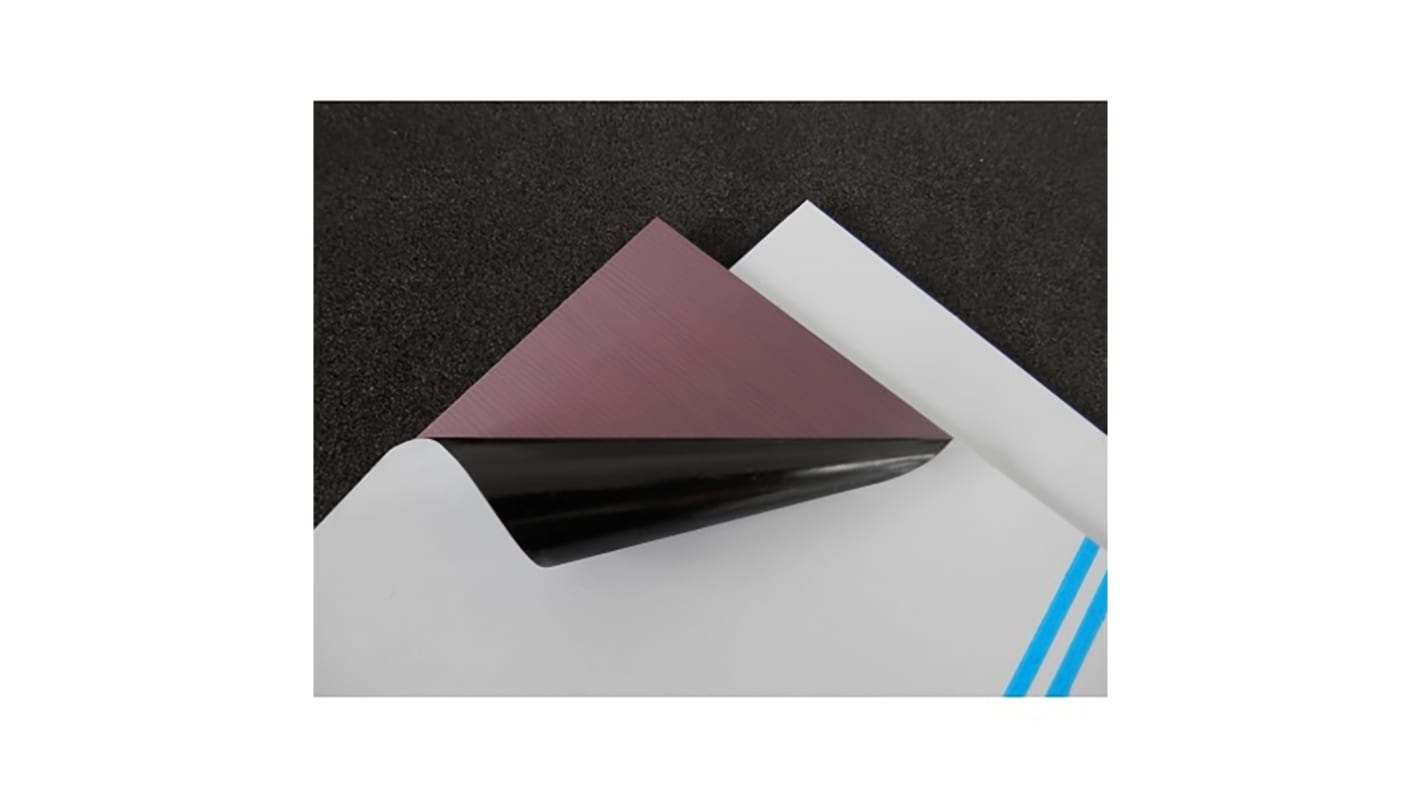

ABB20, Double-Sided Copper Clad Board FR4 With 35μm Copper Thick, 300 x 200 x 0.8mm
- RS Stock No.:
- 159-5818
- Mfr. Part No.:
- ABB20
- Brand:
- CIF
6 In stock - FREE next working day delivery available
37 available from Europe for delivery within 1 working day(s).
Added
Price Each
£17.86
(exc. VAT)
£21.43
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £17.86 |
| 5 - 9 | £16.98 |
| 10 - 39 | £16.13 |
| 40 + | £15.32 |
- RS Stock No.:
- 159-5818
- Mfr. Part No.:
- ABB20
- Brand:
- CIF
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- FR
Product Details
Pre-Sensitised Boards 35μm or 70μm
Complies with military standard P 13949F M12 13949F
Professional quality boards with blue coloured positive resin
Fire resistance: UL 94-V0
Board material Glass-Epoxy FR4
Fire resistance: UL 94-V0
Board material Glass-Epoxy FR4
Note
Developer concentration: use sachet 160-9490 or 6-10g/l of Sodium or Potassium Hydroxide. Conduct trials if in doubt.
Approvals
UL, CSA (K130 and above)
Specifications
Attribute | Value |
|---|---|
| Base Material | Epoxy Glass Fabric Laminate |
| Board Type | Photoresist Board |
| Number of Sides | 2 |
| Dimensions | 300 x 200 x 0.8mm |
| Copper Thickness | 35µm |
| FR Material Grade | FR4 |
| Length | 300mm |
| Thickness | 200mm |
| Width | 0.8mm |
