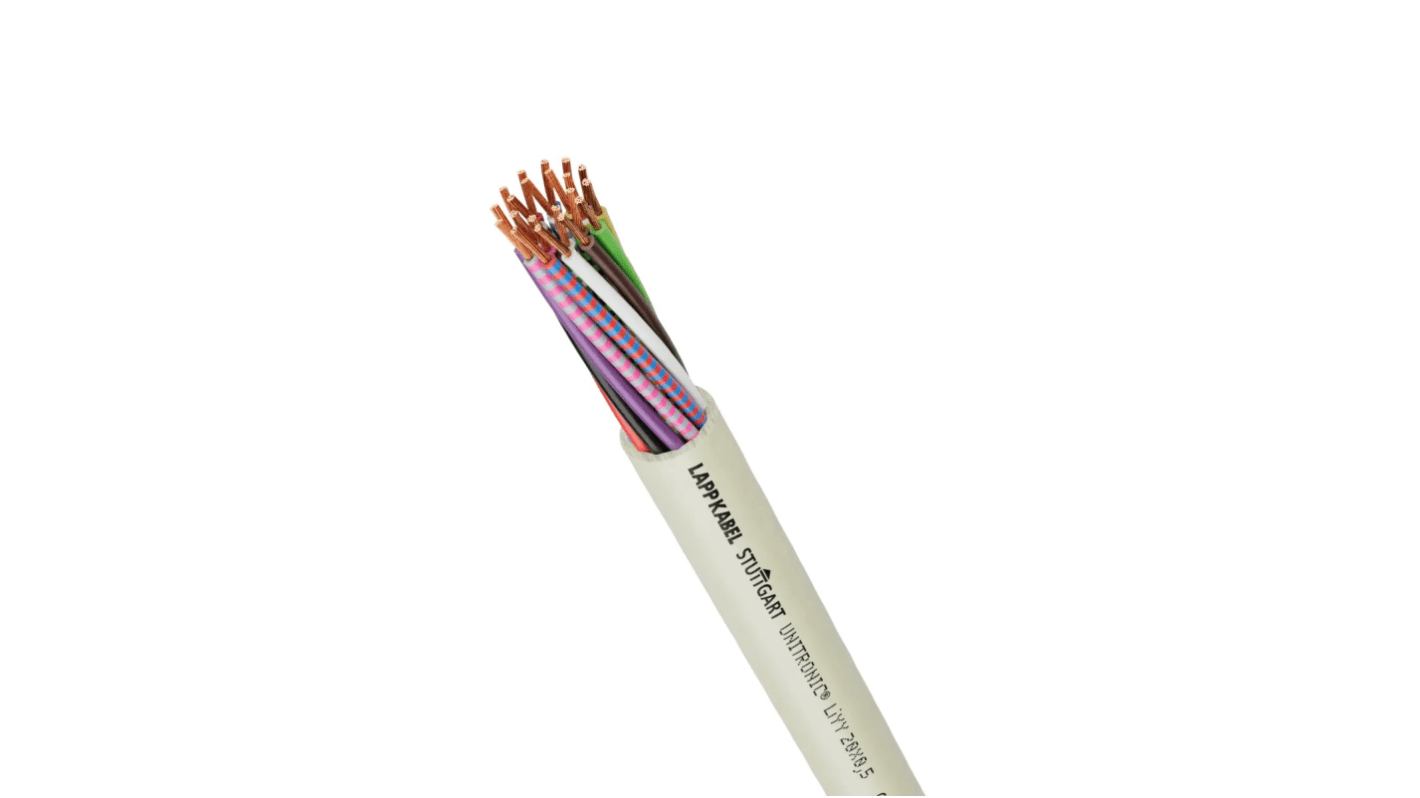

Name: Lapp UNITRONIC Control Cable, 20 Cores, 0.34 mm², Unscreened, 100m, Grey PVC Sheath, 22 AWG
Brand: Lapp
SKU: 491-8804
Price: 237.67 GBP
Availability: Discontinued

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Lapp
	Series	UNITRONIC
	Number of Cores	20
	Cross Sectional Area	0.34 mm²
	American Wire Gauge	22 AWG
	Conductor Material	Copper
	Sheath Material	Polyvinyl Chloride PVC
	Sheath Colour	Grey
	Screened/Unscreened	Unscreened
	Outer Diameter	9.6mm
	Length	100m
	Minimum Bend Radius	Fixed - 4 x D Occasional flexing - 10 x D
	Voltage Rating	500 V
	Current Rating	6 A
	Maximum Operating Temperature	+80°C
	Earth Cable	No
	Core Strands	7/0.25 mm
	Filler Material	Non-Wicking Filler
	Minimum Operating Temperature	-40°C
	Oil Resistant	Yes
	Insulation Material	PVC
	Conductor Resistance	57 Ω/km

	Select all
	Brand Lapp
	Series UNITRONIC
	Number of Cores 20
	Cross Sectional Area 0.34 mm²
	American Wire Gauge 22 AWG
	Conductor Material Copper
	Sheath Material Polyvinyl Chloride PVC
	Sheath Colour Grey
	Screened/Unscreened Unscreened
	Outer Diameter 9.6mm
	Length 100m
	Minimum Bend Radius Fixed - 4 x D Occasional flexing - 10 x D
	Voltage Rating 500 V
	Current Rating 6 A
	Maximum Operating Temperature +80°C
	Earth Cable No
	Core Strands 7/0.25 mm
	Filler Material Non-Wicking Filler
	Minimum Operating Temperature -40°C
	Oil Resistant Yes
	Insulation Material PVC
	Conductor Resistance 57 Ω/km

LIYCY Cable Data Sheet

COO (Country of Origin):: DE

LAPP UNITRONIC Series Data Cable, 20 Core Cable, 0.34mm² Cross-Sectional Area - 0028420

This data cable is a versatile solution designed to meet the needs of various applications in automation, electronics, and electrical industries. With a cross-sectional area of 0.34mm² and featuring 20 cores, it provides exceptional flexibility and performance. The cable is equipped with a PVC sheath, ensuring durability and reliability for both fixed installations and occasional flexing.

Features & Benefits

• Unscreened design allows for easy installation in diverse settings
• PVC insulation maintains performance in temperatures from -40°C to +80°C
• Flame-retardant properties enhance safety in installations
• Compact 9.6mm outer diameter saves space during wiring
• Bare copper conductors ensure excellent conductivity and low resistance

Applications

• Used as a control cable in computer systems and electronic devices
• Suitable for office machinery, including balances and automation controls
• Ideal for installations in dry or damp environments where flexibility is required
• Appropriate for instrumentation and control automation

What is the significance of the cable's 500V voltage rating?

A 500V voltage rating is essential for safely handling various applications, ensuring that the cable can withstand the necessary electrical pressures without risking failure or operational compromise.

How does the unshielded design benefit installations?

The unshielded design simplifies installation by reducing bulk and making it easier to manage multiple cores, particularly in tight spaces, while still providing necessary performance for most low-frequency applications.

What environments is this cable suitable for?

It is designed for use in both dry and damp rooms, making it versatile for applications in various settings, from industrial facilities to office environments.

How does the cable’s flexibility improve usability?

The combination of fine-wire construction and a small diameter allows for easy bending and routing, which is crucial when navigating complex installations or making adjustments in tight spaces.

Note

YY cable is not suitable for fixed wiring applications requiring compliance with the requirements set out in BS7671.
