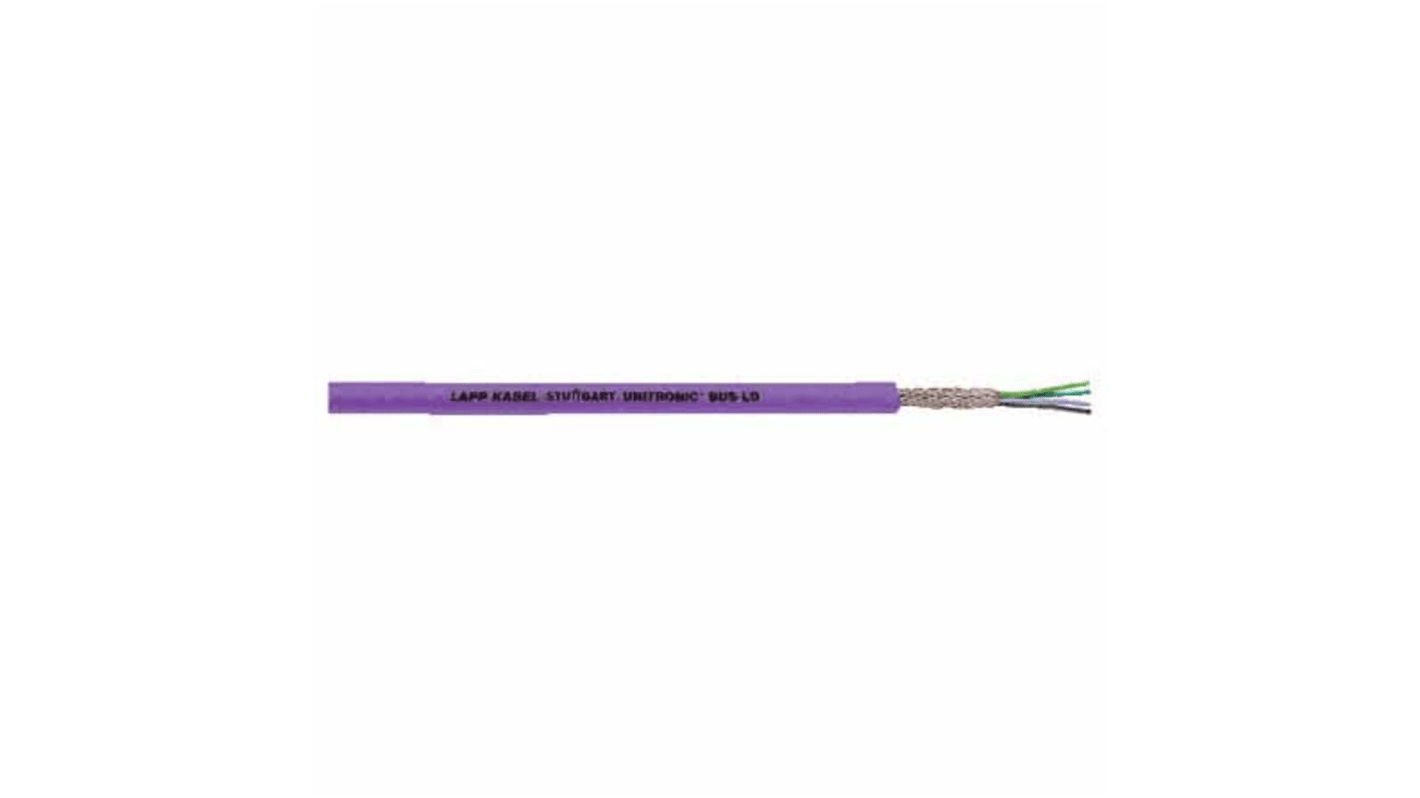

Lapp UNITRONIC BUS LD Data Cable, 0.22 mm², Screened, 100m, Purple PUR Sheath, 24 AWG
- RS Stock No.:
- 444-0070
- Distrelec Article No.:
- 303-99-556
- Mfr. Part No.:
- 2170204
- Brand:
- Lapp
Subtotal (1 reel of 100 metres)*
£224.73
(exc. VAT)
£269.68
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 7 unit(s) shipping from 31 October 2025
- Plus 33 unit(s) shipping from 07 November 2025
- Plus 12 unit(s) shipping from 28 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | £224.73 | £2.247 |
*price indicative
- RS Stock No.:
- 444-0070
- Distrelec Article No.:
- 303-99-556
- Mfr. Part No.:
- 2170204
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Lapp | |
Series | UNITRONIC BUS LD | |
Cross Sectional Area | 0.22 mm² | |
American Wire Gauge | 24 AWG | |
Conductor Material | Bare Copper | |
Sheath Material | PUR | |
Sheath Colour | Purple | |
Screened/Unscreened | Screened | |
Outer Diameter | 7.1mm | |
Length | 100m | |
Voltage Rating | 250 V | |
CPR Certification | Eca | |
Standards Met | UL | |
Maximum Operating Temperature | +80°C | |
Fire Behaviour | Flame Retardant | |
Insulation Material | PE | |
Cable Shape | Multicore | |
Oil Resistant | Yes | |
Minimum Operating Temperature | -40°C | |
Select all | ||
---|---|---|
Brand Lapp | ||
Series UNITRONIC BUS LD | ||
Cross Sectional Area 0.22 mm² | ||
American Wire Gauge 24 AWG | ||
Conductor Material Bare Copper | ||
Sheath Material PUR | ||
Sheath Colour Purple | ||
Screened/Unscreened Screened | ||
Outer Diameter 7.1mm | ||
Length 100m | ||
Voltage Rating 250 V | ||
CPR Certification Eca | ||
Standards Met UL | ||
Maximum Operating Temperature +80°C | ||
Fire Behaviour Flame Retardant | ||
Insulation Material PE | ||
Cable Shape Multicore | ||
Oil Resistant Yes | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- DE
LAPP Purple Screened Data Cable, 24AWG, 0.22mm² CSA - UNITRONIC Series - 2170204
Make reliable internet connections in your industrial network using this data cable from LAPP. It's a versatile choice that's compatible with commonly used Modbus, SUCOnet P, Modulink P and VariNet-P networks. As the cable is screened, you can rest assured that it's shielded from electromagnetic interference to deliver clear signal transmission. For durability, its outer jacket is made from rugged polyurethane material that's tear-resistant. It also comes with polyethyleneinsulation to prevent overheating and reduce the risk of electric shocks.
Features & Benefits
• Wide operating temperature range between -30°C and +70°C for safe use in harsh environments
• Oil-resistant for added durability
• Bare copper conductor has high electrical conductivity
• Bright purple colour for easy colour-coding in crowded setups
• Oil-resistant for added durability
• Bare copper conductor has high electrical conductivity
• Bright purple colour for easy colour-coding in crowded setups
Applications
• Automated control systems
• Plant engineering
• Aviation industry
• Plant engineering
• Aviation industry
Is this cable flame-resistant?
Yes, it is. This means you can safely use it in hazardous areas where there's a risk of fire.
Approvals
UL; CSA
Standards
DIN 19245; EN 50170; DIN 47100
LAPP Industrial Cable
IBS cables for industrial communications and field bus in sensors / actuators.
Peak working voltage 250V (not for power purposes)
Test Voltage 1500V
Temperature range -40°C to +80°C
Test Voltage 1500V
Temperature range -40°C to +80°C
